Product info

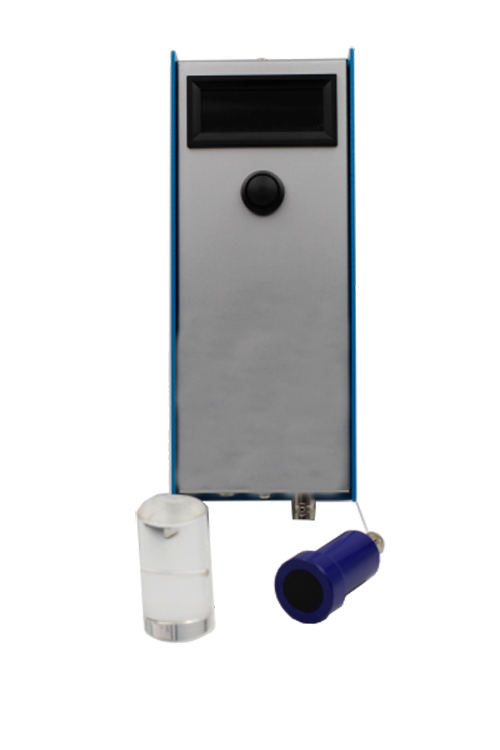

- Product name:Handheld Backfat Detector
- Product code:CCVE2
Packaging Specifications
- Outer Packaging Size:0 × 0 × 0 m
- Gross Weight:0 kg
- Net Weight:0 kg
- Volume:0
Description
Animal Backfat Ultrasound Tester Specifications
1. Equipment Description
This device uses pulse ultrasound to measure the total backfat depth of mammals with 1, 2, or 3 backfat layers.
2. Functional Characteristics
- Measures up to 3 backfat layers
- Features an aluminum alloy shell
- Includes a battery undervoltage alarm
3. Performance Specifications
| Parameter | Specification |
|---|---|
| Measurement range | 4–35mm |
| Measurement accuracy | 1mm |
| Max backfat layers | 3 |
| Measurement sensitivity | <40mV |
| Dimensions | 185mm × 72mm × 24mm |
| Net weight | 339g |
4. Standard Configuration
- Mainframe
- 2.5MHz probe
- User manual/technical instructions
- Power adapter (containing power cord)
