Description

Specifications

Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Characteristics
• Fully stainless steel structure.
• Auto discharge the cool air, and steam discharge automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.

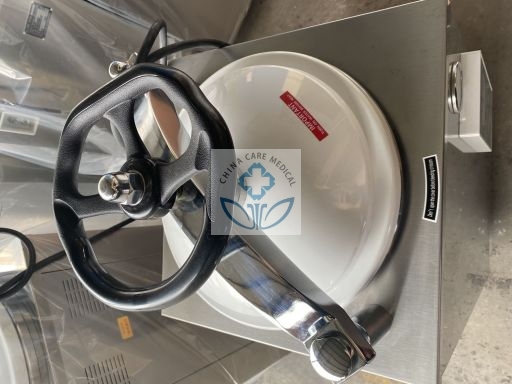

• Hand wheel type of quick-open door structure.
• Over temperature & over pressure auto-protection.
• Easy to operate, safe and reliable.
• Door safety lock system.

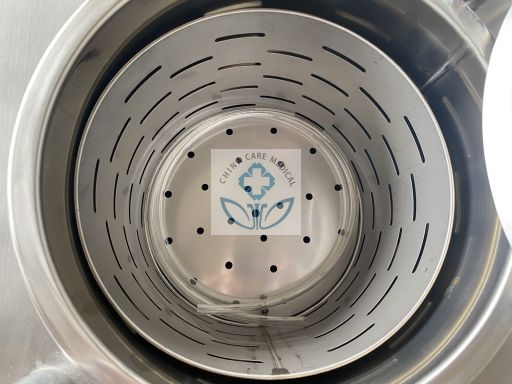

• With two stainless steel sterilizing baskets.

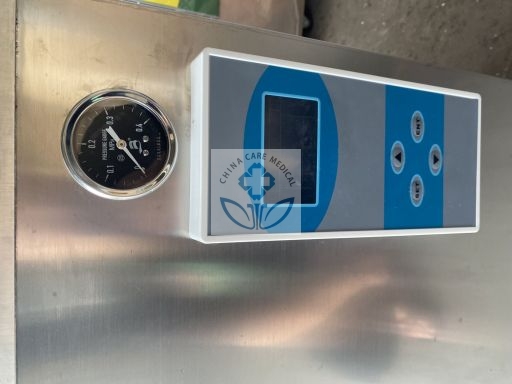

• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal.
With drying function

Technical Data

MODEL	LS-80HD
Technical Data	LS-80HD
Chamber volume	80L φ400×600mm
Working pressure	0.22Mpa
Working temperature	134℃
Max. working pressure	0.28Mpa
Max. working temperature	150℃
Heat average	≤±1℃
Timer range	0-99min or 0-99hour59min
Temperature adjust range	105-136℃
Power	4.5KW/AC220V 50HZ
Accuracy temperature control	0.1℃
Pulse exhaust temperature dynamic	110-136℃
Impulse escape time dynamic	0~9 adjustable
Solution temperature：	40-100℃ adjustable
Temperature hold	40-100℃ adjustable
Sterilization time	0~999 adjustable door
Overall dimension(mm）	550×530×1180
Transport dimension(wooden case)（mm）	650×650×1330
G.W/ N.W(wooden case)	118Kg/93Kg
