Product info

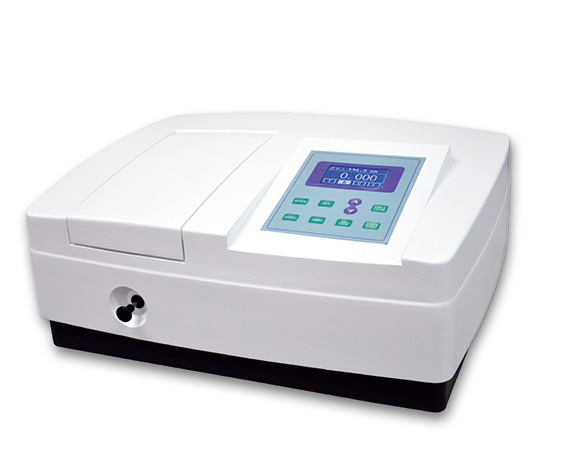

- Product name:UV/VIS Spectrophotometer
- Product code:CCL-5100B
Packaging Specifications
- Outer Packaging Size:0.42 × 0.3 × 0.16 m
- Gross Weight:15 kg
- Net Weight:0 kg
- Volume:0.02
Description
Features
Low stray light
CCL-5100Bis made of high quality components with rigid structure which ensures low stray light.
Auto setting wavelength
Users can set wavelength automatically through arrow keys to avoid operation errors.
Stability and durability
CCL-5100B uses a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
Data output
CCL-5100B is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The software is optional.
Standard curve
CCL-5100B can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.
Multiple results readout
CCL-5100B can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.
Technical Specification
| Parameter | Specification |
|---|---|
| Model | CCL-5100B |
| Optical System | Single beam, Grating 1200 lines/mm |
| Wavelength Range | 190-1000nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Photometric Range | -0.3-3A; 0-200%T |
| Stray Light | ≤0.3%T |
| Stability | ±0.002A/h @ 500nm |
| Display | 128*64 LCD |
| Detector | Silicon Photodiode |
| Light Source | Tungsten & Deuterium lamp |
| Output | USB Port & Parallel Port(Printer) |
| Power Requirements | AC 85~250V |
| Dimension | 490370220mm |
| Weight | 15kg |
