Product info

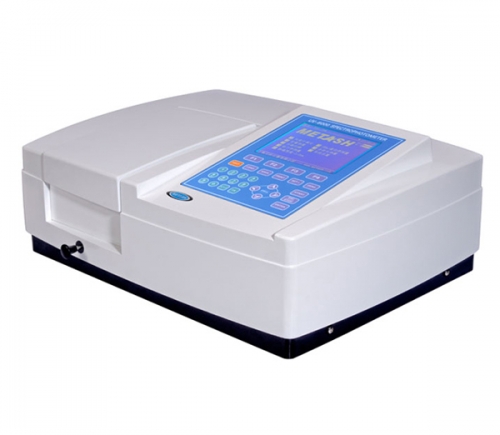

- Product name:UV/VIS Spectrophotometer
- Product code:CCL-UV6100
Packaging Specifications
- Outer Packaging Size:0.63 × 0.43 × 0.21 m
- Gross Weight:28 kg
- Net Weight:0 kg
- Volume:0.06
Description
Features
- 6 inches LCD displayCCL-6100 series has a 6 inches LCD display to show results and curves directly on the screen.
- 8mm thick optical baseCCL-6100 uses a rigid 8mm die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
- Powerful functionsMulti functions like spectrum scanning, standard curve, kinetics, multi wavelength, DNA/Protein testing can be operated directly on the spectrophotometer and all corresponding curves and data can be displayed directly.
- Data outputCCL-6100 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The software is optional.
- Technical Specification
| Parameter | Specification |
|---|---|
| Model | CCL-UV6100 |
| Wavelength Range | 190-1100nm |
| Bandwidth | 1.8nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | 0.3nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A; 0-200%T; 0-9999C |
| Stability | ±0.002A/h @ 500nm |
| Baseline Flatness | ±0.002A/h |
| Noise | ±0.001A |
| Stray Light | ≤0.05%T @ 220nm,360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 320*240 Dots LCD |
| Lamps | D2 Lamp & W Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Dimension | 460380180mm |
| Weight | 20kg |
