Product info

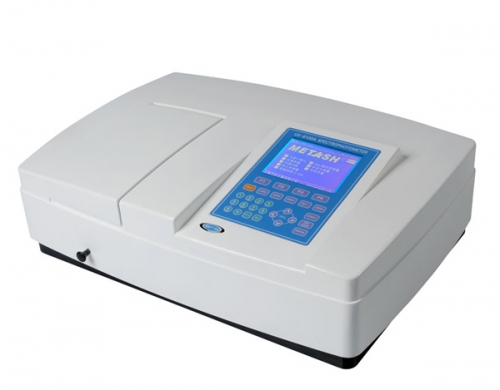

- Product name:UV/VIS Spectrophotometer
- Product code:CCL-6100A
Packaging Specifications
- Outer Packaging Size:0.63 × 0.43 × 0.21 m
- Gross Weight:28 kg
- Net Weight:0 kg
- Volume:0.06
Description
Features
Long light path design
CCL-6100 series’ unique 520mm long light path design greatly improved resolution and the bandwidth can reach 0.5nm.
Multi functions on spectrophotometer
Multi functions operated directly on the spectrophotometer and display the test results’ curve and data: wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/Protein test.
16mm optical base
CCL-6100 series use a rigid 16mm die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
Perfect calibration system
All baseline, wavelength, dark current can be calibrated automatically to keep good running conditions.
6 inches LCD display
CCL-6100 series have a 6 inches LCD display to show results and curves directly on the screen.
Data output
CCL-6100 series are equipped with USB port to connect with a PC, and the software comes standard with the instruments.
Powerful software functions
Multi functions like spectrum scanning, standard curves, kinetics, multi wavelength scanning, DNA/Protein testing can be operated directly on the pc.
Technical Specification
| Parameter | Specification |
|---|---|
| Model | CCL-6100 |
| Wavelength Range | 190-1100nm |
| Bandwidth | 1.8nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | 0.2nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A; 0-200%T; 0-9999C |
| Stability | ±0.002A/h @ 500nm |
| Baseline Flatness | ±0.001A/h |
| Noise | ±0.001A |
| Stray Light | ≤0.05%T @ 220nm,360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 320*240 Dots LCD |
| Lamps | D2 Lamp & W Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Dimension | 625430206mm |
| Weight | 28kg |
