Product info
- Product name:Gel Imaging System
- Product code:CCLY02
Packaging Specifications
- Outer Packaging Size:0.4 × 0.36 × 0.22 m
- Gross Weight:6 kg
- Net Weight:0 kg
- Volume:0.03
Core Parameters
- Transmission Wavelength: 312nm
- Transmission area: Not specified
- Input Voltage: 220V±10%
- Frequency: 50Hz
- Model: CCLY02
- Light Source: UV
- Product Type: UV Transilluminator
- Application: Nucleic Acid and Protein Gel Observation
- Material: UV glass
- Operation: Open the UV Protective cover, with the gel electrophoresis and Chromatography through the sheet of paper samples on the UV glass, close the cover. Then open the UV lamp power supply switch, when samples sent to clear the brightest fluorescence, you can observation and analysis through the UV Protective cover.
- Notice: UV glass should not put heavy pressure, should not rub metal objects, So as to avoid abrasion.
Description

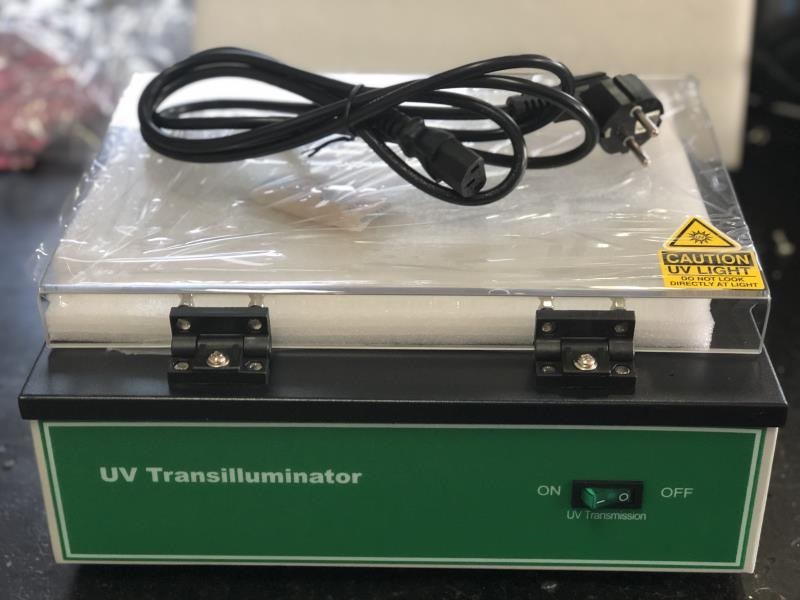

UV-Transilluminator is a necessary equipment that follows UV light resource with different wavelengths to observe, analyze and take photos of gels of Nucleic Acid and Protein.
Specification
| Specification | Qualification |
|---|---|
| Light Source | UV |
| Transmission wavelength | 312nm |
| Transmission area | 200×150(mm) |
| Input voltage | 220V±10% ~ |
| Frequency | 50Hz |
| Fuse | φ5×20 3A |
