Description

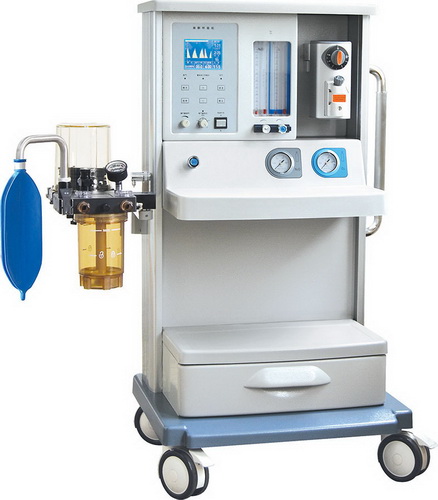

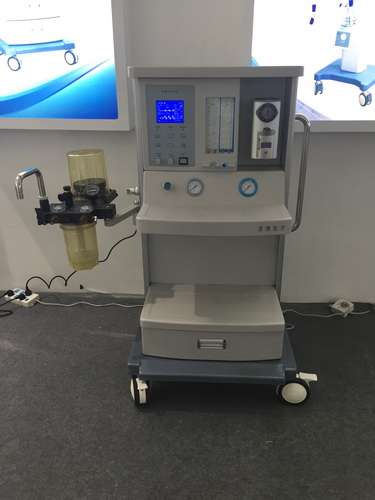

Universal Anesthesia Machine

Specifications

Type: Trolley Type

Ventilation Mode: IPPV, SIPPV, MANUAL

Universal Anesthesia Machine Main technical specifications:

Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.

4-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min;

Oxygen Flush: 25~75 L / Min

Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,MANUAL

Tidal Volume: 0~1500ml

I/E Ratio: 4:1 ~ 1:10

One vaporizer: Enflurane/ Isoflurane/Sevoflurane/Halothane

(Universal Anesthesia Machine Display Screen)

Vaporizer Setting Range: 0.5%~5%

Respiration Frequency : 1~99 bpm;

Ptr: -1.0kPa ~ 1.0 kPa

CO2 absorber capacity : 1 kg

(Universal Anesthesia Machine Wheel with Locker)

Optional: Patient monitor

(Universal Anesthesia Machine with patient monitor Optional)

Universal Anesthesia Machine Alarm parameters:

upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
