Product info

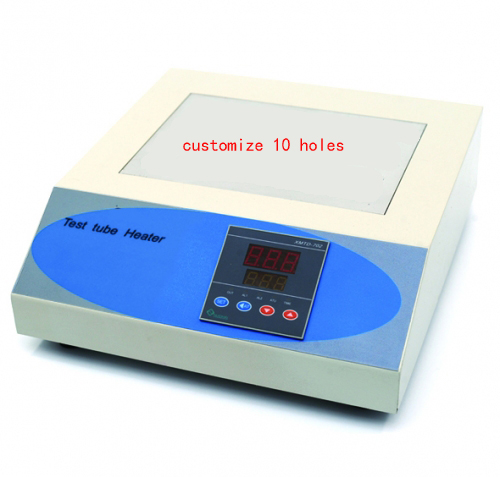

- Product name:10mlx10holes Test tube heater Dry Bath
- Product code:CCL-SG
Packaging Specifications
- Outer Packaging Size:0.36 × 0.32 × 0.24 m
- Gross Weight:6 kg
- Net Weight:5 kg
- Volume:0.03
Description
CCL-SG Series Dry Bath Incubator
Description

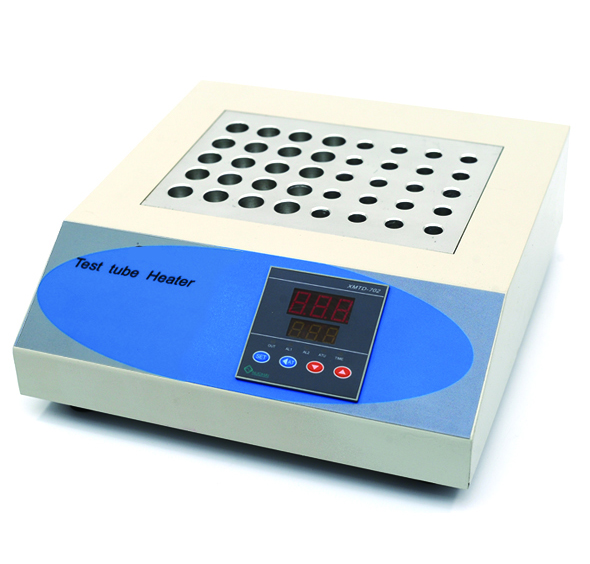

The CCL-SG tube heater thermostat is a new-generation temperature control device developed from the tank-based design. It is available in 24-hole and 40-hole configurations, suitable for standard 1.5ml and 10ml tubes.
Key features:
- High-density extruded aluminum heating block for uniform heating, small thermal resistance
- Microprocessor-controlled temperature with high accuracy
- Automatic thermostat function
- 0–999 minute adjustable timer
Technical Parameters
| Model | CCL-SG | CCL-SG-24 | CCL-SG-40 |
|---|---|---|---|
| Operating Voltage | AC 110V 60Hz | AC 110V 60Hz | AC 110V 60Hz |
| Heating Power | 500W | 600W | 1000W |
| Temperature Range | RT–100°C | RT–100°C | RT–100°C |
| Temperature Accuracy | ±0.5°C | ±0.5°C | ±0.5°C |
| Timer Range | 0–999min | 0–999min | 0–999min |
| Test Specifications | 10ml × 10 holes | 1.5ml × 24 holes | 1.5ml × 40 holes |
| Heating Core Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
Temperature & Time Setting
- Press the SET button to enter temperature setting mode. The temperature display will flash.
- Use the △/▽ keys to adjust the temperature value.
- Press SET again to enter time setting mode. The time display will flash.
- Use the △/▽ keys to adjust the time value.
- Press SET once more to save settings and return to normal operation.
Usage Instructions
- Connect power and turn on the switch.
- Set the desired temperature (e.g., 37°C).
- Preheat the block until the heating indicator turns off.
- Add solution to the tubes and insert them into the heating holes.
- Allow ~10 minutes for the solution to reach the target temperature.
- After use, turn off the power. Do not leave unattended with hot air.
Safety Notes
- Burn Hazard: Do not touch the heating holes during operation. Remove overflowing tubes immediately.
- Fire Hazard: Do not heat flammable, explosive, or corrosive substances.
- Maintenance: Turn off when not in use. Clean with a dry brush to avoid moisture.
