Product info
- Product name:Syringe Pump with drug library
- Product code:CCS-1800G
Packaging Specifications
- Outer Packaging Size:0.3 × 0.25 × 0.16 m
- Gross Weight:3 kg
- Net Weight:2.5 kg
- Volume:0.01
Description

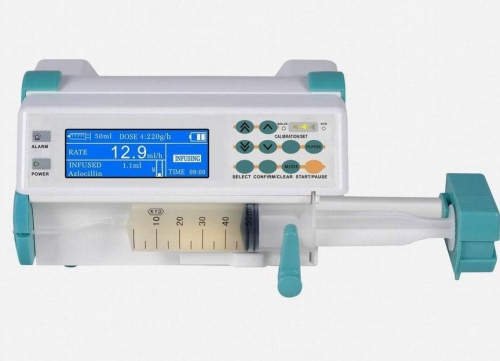

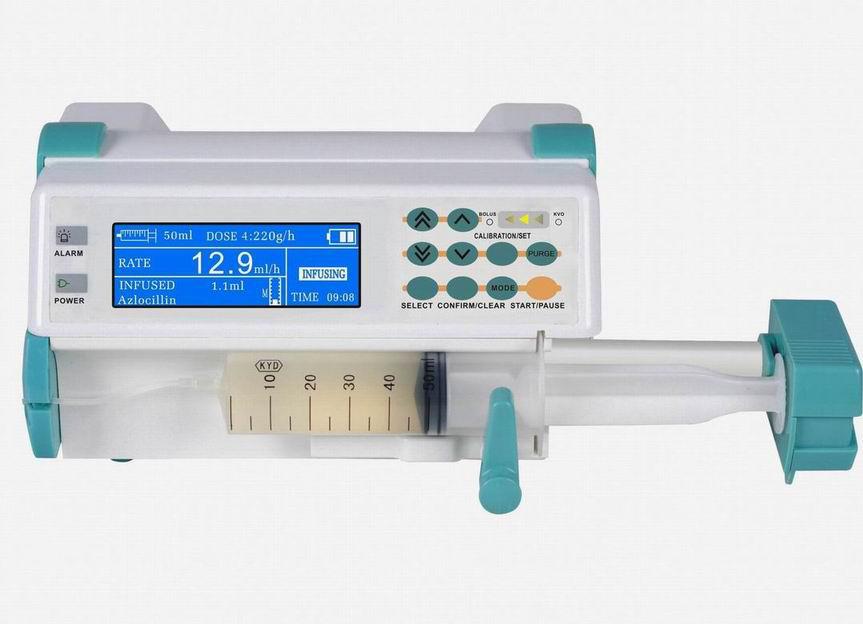

Syringe Pump Overview
This is a multi‑channel stackable syringe pump designed for flexible clinical use, with drug library support, safety alarms, and extended battery life.
✨ Features
- Syringe compatibility: Works with disposable syringes from 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, 60 ml
- Expandable channels: Stackable to a maximum of 8 channels for multi‑infusion therapy
- High accuracy: ± 2 % after correct calibration
- Three work modes: Rate mode, Time mode, and Weight mode
- Infusion functions: Bolus / Purge, and KVO (keep‑vein‑open) function
- Drug library: Contains 10 categories of common drugs (174 kinds in total)
- History & display: Records infusion history with real‑time display
- Battery life: 6 hours continuous work after fully charged
- Certifications: CE/ISO13485 marked, OEM service available
📋 Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable syringes | 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, 60 ml of any standard |
| Accuracy | ± 2 % with correct calibration |
| Rate mode | 50/60 ml: 0.1–1800 ml/h (0.1 ml/h step)20/30 ml: 0.1–800 ml/h (0.1 ml/h step)10 ml: 0.1–400 ml/h (0.1 ml/h step) |
| Time mode | Volume: 0.1–999.9 ml (0.1 ml step)Time: 1–1999 min (1 min step) |
| Body Weight Mode | Volume: 0.1–999.9 ml (0.1 ml step)Drug mass: 0.1–999.9 mg (0.1 mg step)Dose: 0.01–99.99 µg/kg/min (0.01 µg/kg/min step)Weight: 0.1–300 kg (0.1 kg step) |
| Total volume range | 0.1–1999.9 ml (0.1 ml step) |
| Purge rate | 50/60 ml: 1800 ml/h20/30 ml: 800 ml/h10 ml: 400 ml/h5 ml: 200 ml/h |
| KVO rate | 1 ml/h |
| Occlusion pressure | 3‑level setting: Low / Medium / High |
| Alarms | Near empty, syringe empty, volume complete, occlusion, syringe loose, operation error, low battery, device failures3‑level adjustable alarm volume (Low / Medium / High) |
| Bolus rate | 10 ml: 10–300 ml/h20/30 ml: 10–600 ml/h50/60 ml: 10–1200 ml/h |
| Bolus volume | Max. 25 ml |
| Interface | RS‑232 (reserved port) |
| Power source | AC: 100–240 V (±10 %), 50/60 HzBuilt‑in rechargeable Li‑ion battery: 11.1 V, 2000 mAh (8 h continuous use) |
| Accessories | AC power line, operational manual |
| Protection class | Class I, Type CF, IPX4 |
| Dimensions / Net weight | 230 mm × 150 mm × 125 mm, 2.2 kg |
