Product info
- Product name:Surgical Electric Bipolar Coagulator
- Product code:CCS-2000B
Packaging Specifications
- Outer Packaging Size:0.56 × 0.45 × 0.27 m
- Gross Weight:8 kg
- Net Weight:6 kg
- Volume:0.07
Description

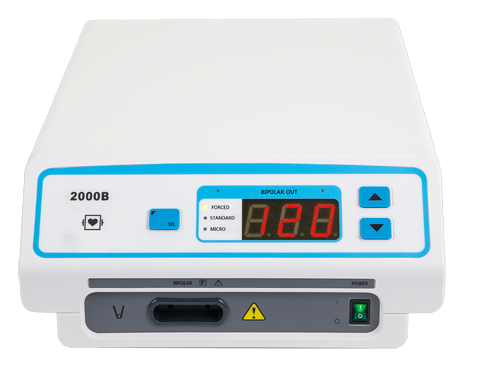

CV-2000B Bipolar Coagulator
MAIN FEATURERS:
◆ Deep hemostasis, foot control outputs, mild hemostasis.
◆ According to the depth of hemostasis, the output mode stops automatically. The output power will not reduce when operating in dry and bleeding spot.
◆ Foot control mode: When the tissue reach the coagulation effects, the output power declines slowly.
◆ Low voltage effectively reduces forming of the sparking of forceps, stimulating for the neuromuscular, to increase the security.
◆ Microcontroller system allows this unit can be used in many delicate surgery.
◆ Standard Bipolar is suitable for Hepatobiliary Surgery, Otolaryngology, head and neck surgery; Micro Bipolar is suitable for Orthopedics, Microsurgery, and Brain surgery; Macro Bipolar is mostly used in Gynecology.
PERFORMANCE CHARACTERISTICS
Duty Cycle: Intermittent loading and continuous operation( 10s/30s)
Working modes
| Standard Bipolar | 1-120W @200ohm load |
| Micro Bipolar | 1-120W @200ohm load |
| Macro Bipolar | 1-120W @200ohm load |
Input Power
| Input Voltage | 100-240V～±10% |
| Mains line frequency range | 50-60Hz |
| Power consumption | ≤1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | 1MHz |
| RF leakage current | ＜50mA |
Standards and IEC Classifications
| Class I Equipment IEC 60601-1 |
| Type CF Equipment IEC 60601-1 |
| Spill Resistance IEC 60601-2-2 |
| Electromagnetic Compatibility IEC 60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
| Length: 41cm | Width: 30.7cm |
| Height : 13cm | Weight: 6kg |
Operating Parameters
| Ambient temperature range: 5℃ to 40℃ |
| Relative humidity: ≤80% |
| Atmospheric pressure: 86kPa to 106kPa |
Configuration Sheet
| Bipolar Footswitch 1set |
| Bipolar Forceps with cable 1set |
| Power cable 1piece |
| Fuses 3pieces |
