Product info

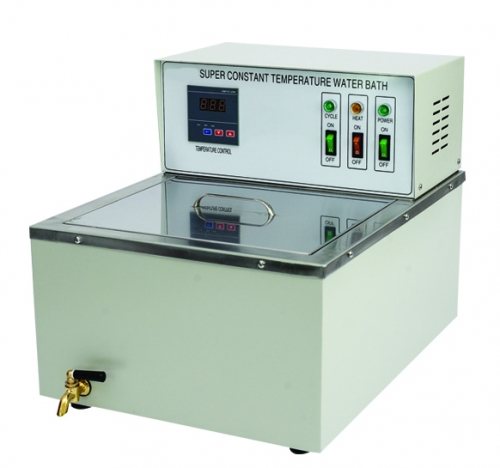

- Product name:Super Constant Temperature Water Bath
- Product code:CCL-601
Packaging Specifications
- Outer Packaging Size:0.55 × 0.4 × 0.4 m
- Gross Weight:16 kg
- Net Weight:0 kg
- Volume:0.09
Core Parameters
- Power: AC 220V ± 10% 50Hz ± 2%, AC 110 60HZ
- Temperature scope: room temperature +5 ℃-95 ℃
- Fluctuation of constant temperature: ≤±0.05℃
- Pump flow rate: ≥4L/min
- Total power consumption: ≤1.6 KW
- Flume volume: 400mm×300mm×200mm
- Workroom size: 280mm×200mm×185mm
- Water box material: stainless internal bladder
Description
Super Constant Temperature Water Bath Specifications
Brief Introduction
The CCL-601 Super Constant Temperature Water Bath is an updated version of the 501 model. It is manufactured from imported corrosion-resistant plate using advanced processes, meeting national standard requirements. Key features include high-precision temperature control, strong anti-corrosion properties, a compact design, an aesthetic appearance, energy efficiency, and a long service life. It is suitable for precise constant temperature applications via direct or auxiliary heating in biology, physics, botany, chemistry, and environmental protection.
Technical Index
- Power Supply:
- Temperature Range: Room temperature +5°C to 95°C
- Temperature Stability: ≤ ±0.05°C
- Temperature Control: Digital control
- Pump Flow Rate: ≥4L/min
- Total Power Consumption: ≤1.6kW
- Dimensions:
- Water Tank Material: Stainless steel inner bladder
Additional Features
- Refrigeration Compressor Protection: Includes power protection and delay functions in the control circuit.
