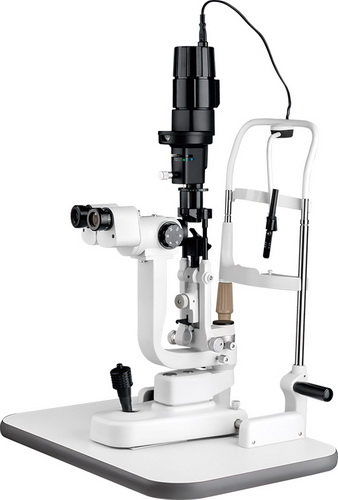

slit lamp Microscope

Five-step drum magnification for eyepiece .Sclera vein could be obseved under the 40x magnification All the optical lenses are moistureproof , mildewproof and anti-reflected treated Large spot diameter,slit length reach to 14mm , more comprehensive view
Item Code: CCE-88
Sold: 22
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description

Microscope Microscope Type Galilean stereoscopic microscope
Magnification selection 5 steps by drum rotation
Eyepiece 12.5x
Magnification Ratio
(Field of view )
6×(φ33mm)、10×(φ22.5)、16×(φ14mm)、
25×(φ8.8mm)、40×(φ5.5mm)
PD adjustment 50mm ~ 82mm
Diopter Adjustment +7D ~ -7D
Base Side Shift 110mm
Depth Shift 90mm
Height Shift 30mm
Chin rest Height Shift 80mm
Fixation Target red LED
 Illumination System Slit width 0 ~ 14mm continuous (at 14mm,slit becomes a circle)
Slit height 1 ~ 14mm continuous
Slit angle
Slit Inclination
Light spot diameter
0 ~ 1800 continuous
0、50、100   150、200
Ф14mm 、Ф10mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф1mm 、Ф0.2mm  、Ф1mm~Ф1-14mm  continuous
Filter Heat absorption ,Grey ,Red-Free ,Cobalt Blue
Illumination bulb 12V 50W halogen lamp
Power Input voltage
frequency
Power consuption

220V
50H
68VA
Weight and size G.W
N.W
18kg
16kg
Main dimension 690mm(L)× 440mm(W)× 420mm(H)



Shipping Information:

G.W: 16kg

Packing Size: 0.46m,0.44m,0.7m

Unit: Piece
