- Description

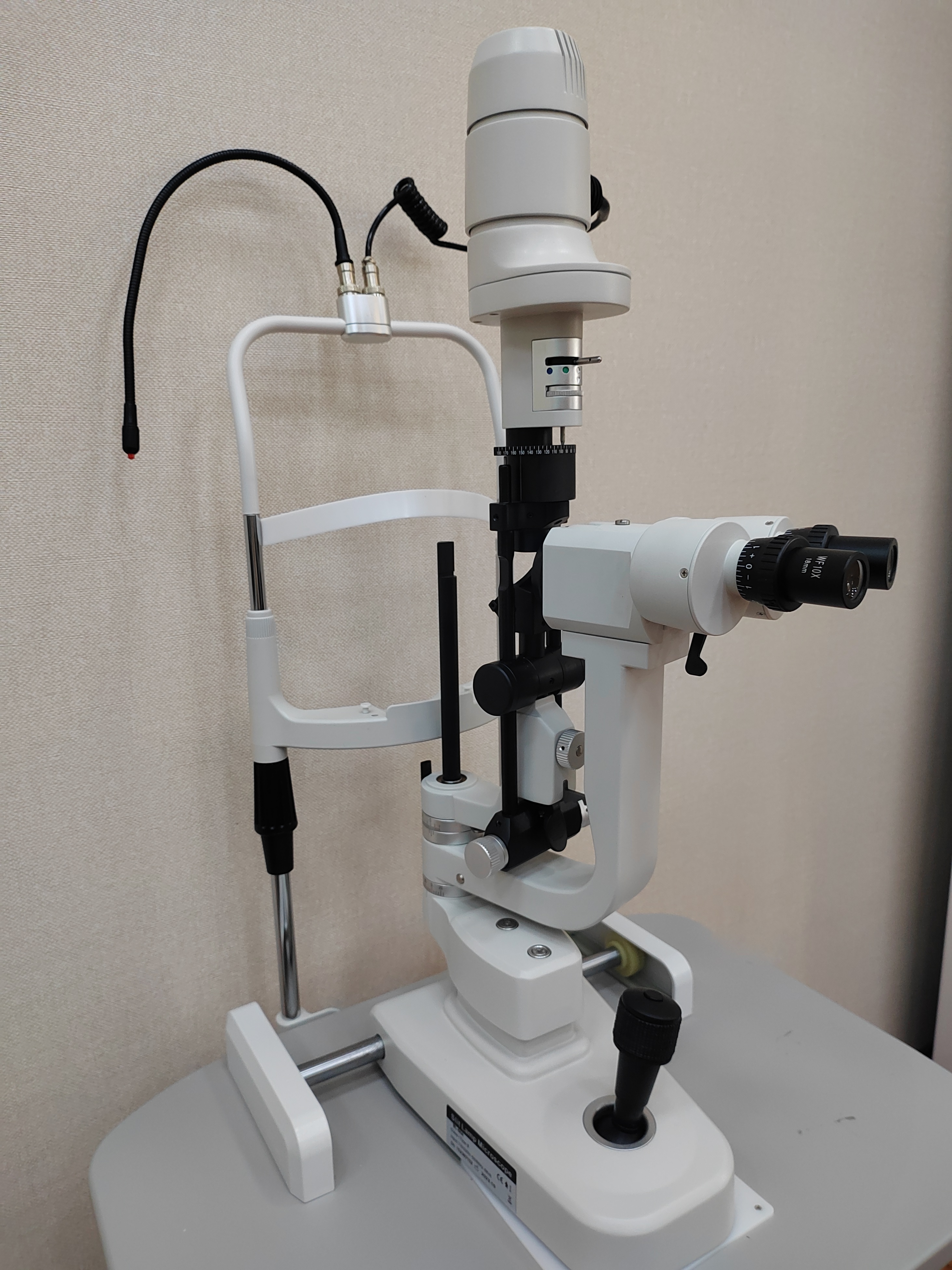

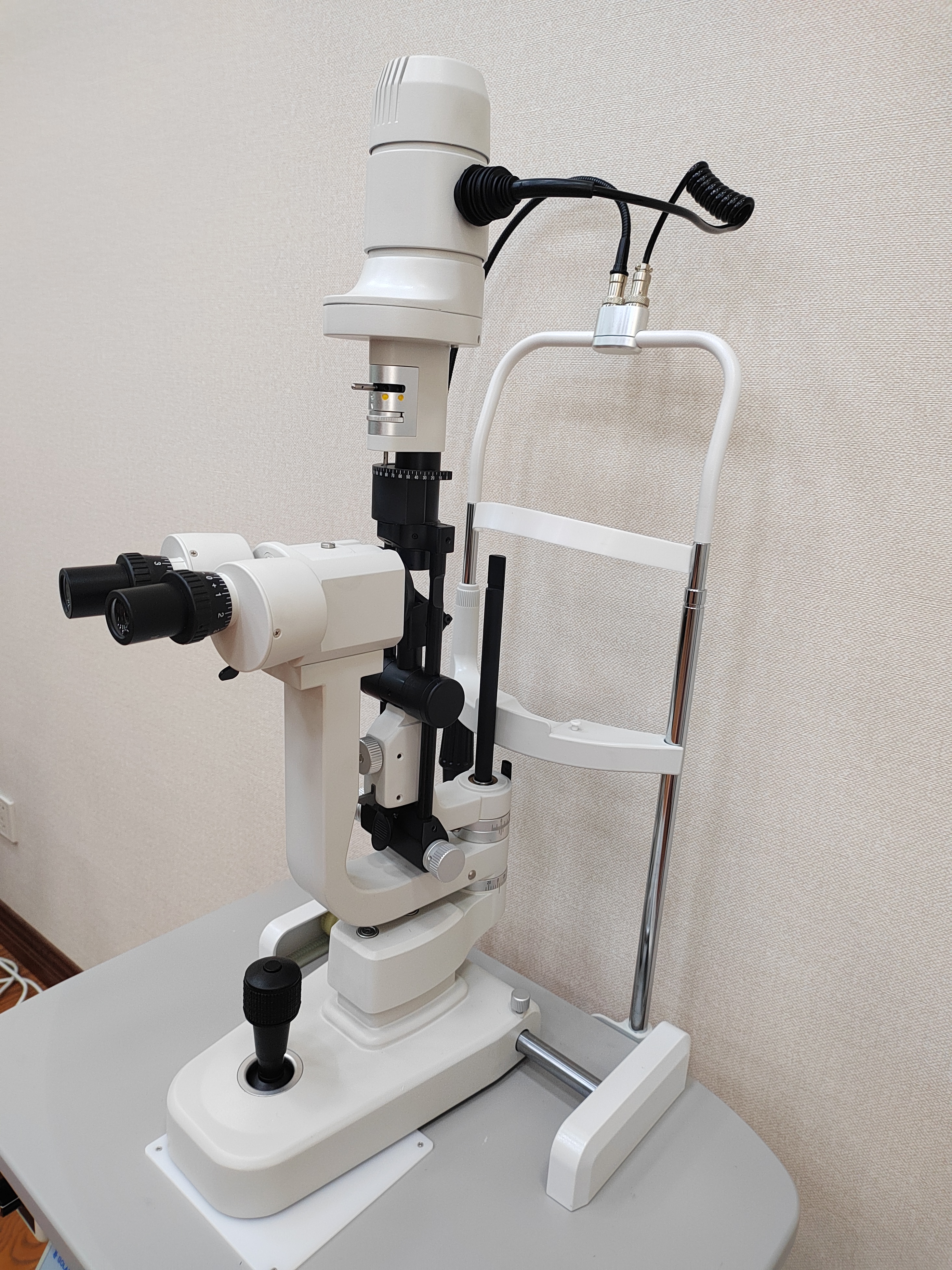

| Microscope | Microscope Type | Converging Stereoscope |
| Magnifications | 2 step magnifications | |
| Eyepiece | 10x | |
| Magnification Ratio (Field of view ) |
16×（φ14.5mm）、10×（φ18）、 | |
| PD adjustment | 50mm ~ 82mm | |
| Diopter adjustment | +5D ~ -5D | |
| Base | Side Shift | 110mm |
| Depth Shift | 90mm | |
| Height Shift | 30mm | |
| Chin rest | Height Shift | 80mm |
| Fixation Target | Red LED | |
| Property of illumination | Slit width | 0 ~ 9mm continuous (at 9，slit becomes a circle) |
| Slit hight | 1 ~ 8mm continuous | |
| Slit Angle Slit Inclination Light spot diameter |
0 ~ 1800 adjustable 0 -230 Ф9 、Ф8、 Ф5 、 Ф3, Ф2 、Ф1 、Ф0.2mm |
|
| Filter | Heat Absorption ,Grey ,Red-free ,Cobalt Blue | |
| Illumination Bulb | 12V 50W halogen lamp | |
| Power | Input Voltage Frequency Power Consumption |
220V 50H 68VA |
| Weight and size | G.W N.W |
18kg 16kg |
| Main Dimension | 680mm（L）× 440mm（W）× 420mm（H） |
Shipping Information:
G.W: 0.3kg
Packing Size: 0.28m,0.45m,0.1m
Unit: Piece
Special: No
