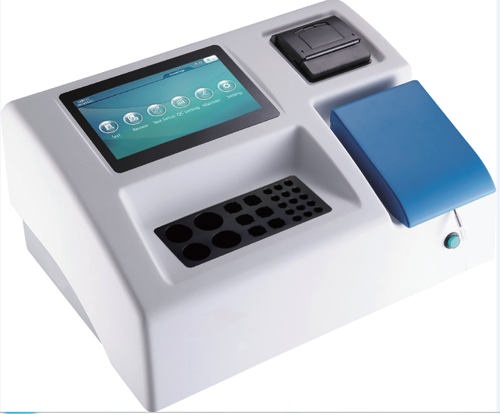

Semi-auto Chemistry & Coagulation Analyzer (CCLD1)

This semi-automatic biochemistry and coagulation analyzer features the core strengths of accuracy, stability and intelligence. It supports multi-language operation, integrates a multifunctional incubator, and boasts comprehensive detection methods and strong adaptability. With excellent hardware configuration, large storage capacity, wide environmental adaptability and a compact body, it is a high-performance semi-automatic detection device for diverse clinical scenarios.

Core Detection & Functional Features

1. Multi-language Support: Compatible with Chinese, English, French, Spanish and Russian, meeting the operational needs of different regions.
2. Comprehensive Detection Methods: Supports 1-point end, 2-point end, kinetics, fixed-time, coagulation and turbidimetry methods; compatible with both flow cell and cuvette detection carriers.
3. High-performance Optical System: 8 standard wavelengths (340nm, 405nm, 450nm, 510nm, 546nm, 578nm, 600nm, 630nm) with 2 optional additional wavelengths; equipped with a long-life tungsten halogen lamp with auto-sleep function; absorbance range of 0.0000~4.0000Abs and resolution of 0.0001Abs.
4. Precise Temperature Control: Multi-gear temperature settings (25℃, 30℃, 37℃ and room temperature) with a built-in multifunctional incubator for stable reaction conditions.

Hardware & Operation Configuration

1. Display & Printing: 7.0" TFT LCD touch screen with 800*480 pixels; built-in 57mm thermal printer, also supporting external printer connection for flexible result output.
2. Powerful Core Configuration: Cortex-A8 800MHz processor; DDR3 512M, ROM 256 Flash and 8G SD card; storage for over 300 test programs and 200,000 test results for convenient data management.
3. Rich Interfaces: 4 USB ports, 1 RS232 port and 1 Ethernet port; USB host port supports connection of keyboard, mouse, printer, U disk, barcode reader and other peripherals.
4. Compact Design: Overall dimensions of 400300185mm (LWH), saving valuable lab space with a space-efficient body.

Operating & Power Requirements

1. Operational Environment: Working temperature 15℃~35℃, relative humidity 35%~85%, adapting to common laboratory environmental conditions.
2. Wide Voltage Power Supply: AC 100-240V, 50/60Hz, with automatic adaptation to power grids of different regions for reliable operation worldwide.
