Product info

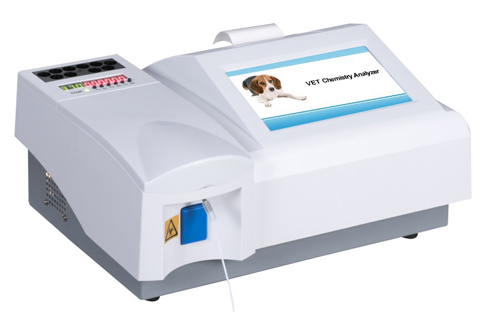

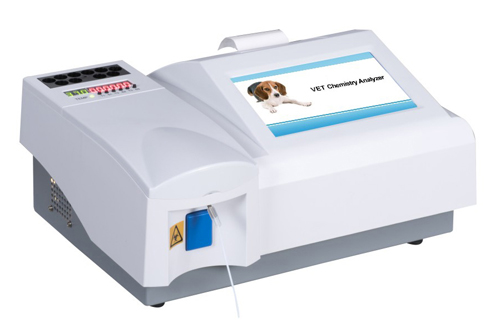

- Product name:Semi-Automatic Biochemical Analyzer
- Product code:CCV32B
Packaging Specifications
- Outer Packaging Size:0.5 × 0.46 × 0.29 m
- Gross Weight:7.5 kg
- Net Weight:5 kg
- Volume:0.07
Description
Semi-Automatic Biochemistry Analyzer Specifications
1. General Information
- Reagent Compatibility: Open system, compatible with any international reagents.
- Display: 7-inch color LCD touchscreen.
- Test Modes: Flow cell and cuvette compatible.
- Display: Real-time curve display.
- Pre-programmed: 7 wavelengths, 90 test items pre-programmed.
- Memory: Stores 10,000 sample results.
- Lamp Life: Light source hibernate function to extend lamp life.
- Interface: RS232 interface for PC connection.
2. Specifications
| Parameter | Specification |
|---|---|
| Test Modes | Kinetic, Endpoint, Two-point, Absorbance |
| Wavelengths | 7 standard filters: 340, 405, 492, 510, 546, 578, 630 nm + 1 free position |
| Wavelength Precision | ±2 nm, width ≤10 nm |
| Absorbance Range | 0~4.500 Abs |
| Absorbance Precision | Outside: 0.0001 Abs; Inside: 0.00001 Abs |
| Carry Over | < 1% |
| Repeatability CV | < 1% |
| Incubator | 37°C, 30°C, 25°C; Precision: ±0.1°C |
| Sample Volume | 0~3000 µL (≥500µL recommended) |
| Data Storage | ≥10000 |
| QC Curves | Xˉ, SD, CV%, L-J control curve for each test item |
| Flow Cell | 32 µL quartz glass, 10 mm |
| Lamp | 6V 10W halogen lamp (long life) |
| CPU | ARM high-speed micro CPU |
| Printer | Internal thermal printer |
| Interface | RS-232 |
| Working Environment | Temperature: 0°C ~ 40°C; Humidity: ≤80% |
| Power Supply | 100~240VAC, 50-60Hz, 100VA |
| Dimensions | 340(L) × 270(W) × 160(H) mm |
| Weight | 5 kg |
3. Usual Test List
- Liver Function: ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, NH3
- Renal Function: BUN, CRE, UA, URE, CO2-CP, γ-GT
- Lipids: T-CHO, TG, HDL-C, LDL-C
- Cardiac Function: CK, CK-MB, LDH
- Immune Proteins: IGA, IGG, IGM, C3
- Others: GLU, HGB, AMS
