Description

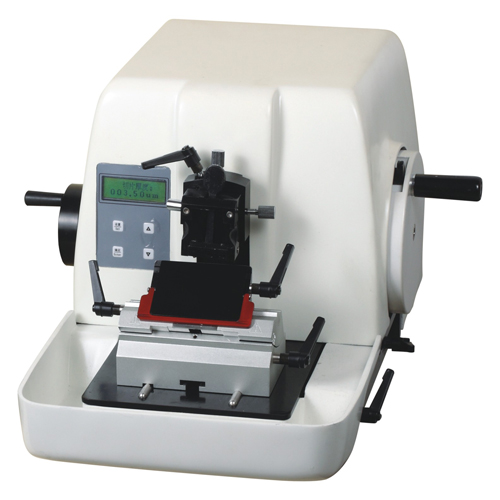

Computer Intelligent Microtome

This is the latest computer intelligent microtome developed and manufactured after years of market research, incorporating the support and suggestions of pathologists and absorbing the advantages of various models. It features easy operation, excellent section quality, and high precision. In particular, trimming thickness can be set via the panel keys or adjusted freely with the small handwheel, and this function is patented. It is an ideal choice for pathological histology.

Main Technical Parameters

• Section thickness range: 0–100 µm
• Trimming thickness range: Freely adjustable via small handwheel; 0.25–100 µm via panel keys
• Minimum graduation of section thickness adjustment: 0.25 µm
• Section thickness adjustment increments:
• Section precision: ±10%
• Specimen retraction: 20 µm
• Specimen horizontal displacement: ≥15 mm
• Specimen vertical displacement: 70 mm
• Maximum section area: 35 × 40 mm
• Power supply: AC220V/50Hz
• Power: 80VA
• Overall dimensions: 530 × 460 × 310 mm
• Net weight: 35 kg
