Description

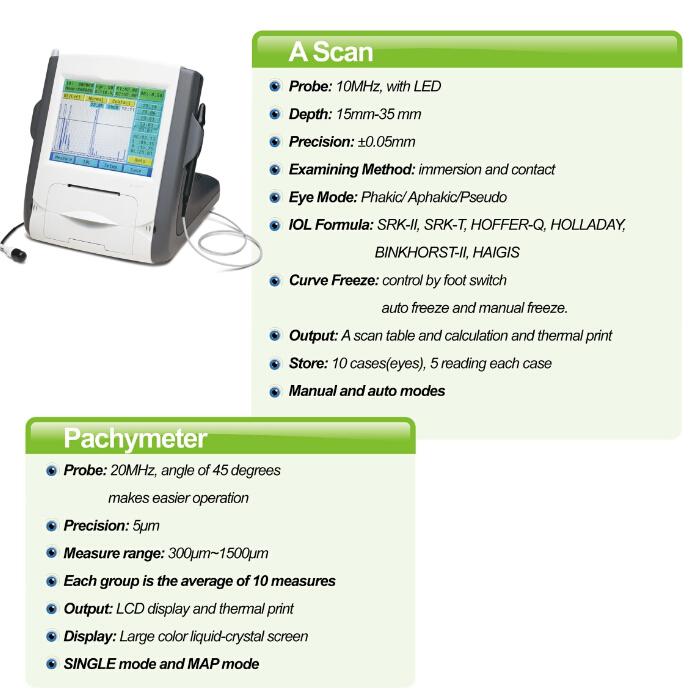

Portable Ophthalmic A-Scan

Features:

1. All touch screen, easy to operator
2. Large color LCD display with backlight and brightness control
3. Portable design and light weight
4. Curve freezing: Manual/Auto mode, controlled by pedal
5. Built-in thermal printerPortable ophthalmic scan CCE-SW1000A, ophthalmic a scan, ophthalmic scanner, ophthalmic equipment With macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness, as well as intra-ocular lens calculation.

Specifications:

1. Probe: 10MHz, with LED
2. Depth: 15mm-40 mm
3. Precision: ±0.05mm
4. Examining Method: immersion and contact
5. Eye Mode: Phakic/ Aphakic/Pseudo
6. IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS
7. Measurement: AL, ACD, L, V and the average
8. Curve Freeze: control by foot switch auto freeze and manual freeze.
9. Enter the name & ID; easy to check archive
10. Storage: 10 cases, 5 readings each case
11. Output: A scan waveform and IOL calculation sheet
12. Output: Build-in high speed thermal printer, print out A scan table and calculation
13. Manual and auto modes
14. Input: Touch screen
15. Power: 30W
16. Net Weight: 2kg, Machine Dimension: 17cm × 20cm × 19cm
17. Packing Gross Weight: 3kg, Packing Dimension: 31cm × 28cm × 30cm
19. A Probe:
20. 10MHz solid probe, compact and inner luminated;
21. Resolution: ±0.05 mm;
22. Eye mode: Normal/ Aphakic/Dense/PMMA/Silicone/Acrylic
23. IOL formula: SRK-II SRK-T BINKHORST-II HOLLADAY HOFFER-Q HAIGIS-STD;
24. User could check the case according to the ID;
25. Each ID can have the data of 5 scans, and 10 IDs can be saved;
26. Output: IOL calculating table;
27. Measure: Anterior chamber, lens, vitreous body and total length.
28. Curve freezing: Manual/Auto mode, controlled by pedal
29. Output: Build-in fast thermal printer
30. Display: Color liquid-crystal screen
31. Input: touch screen.
32. Power: 30W
