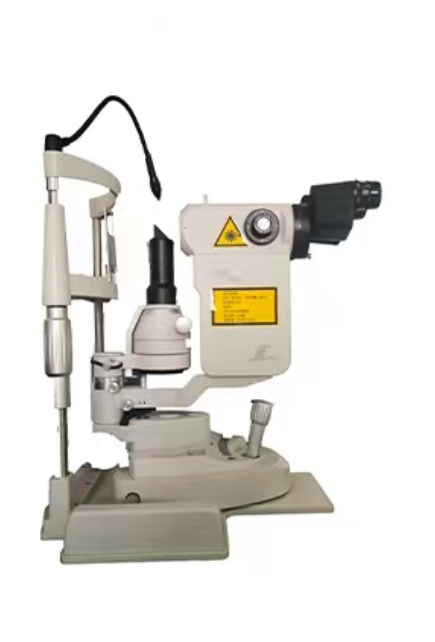

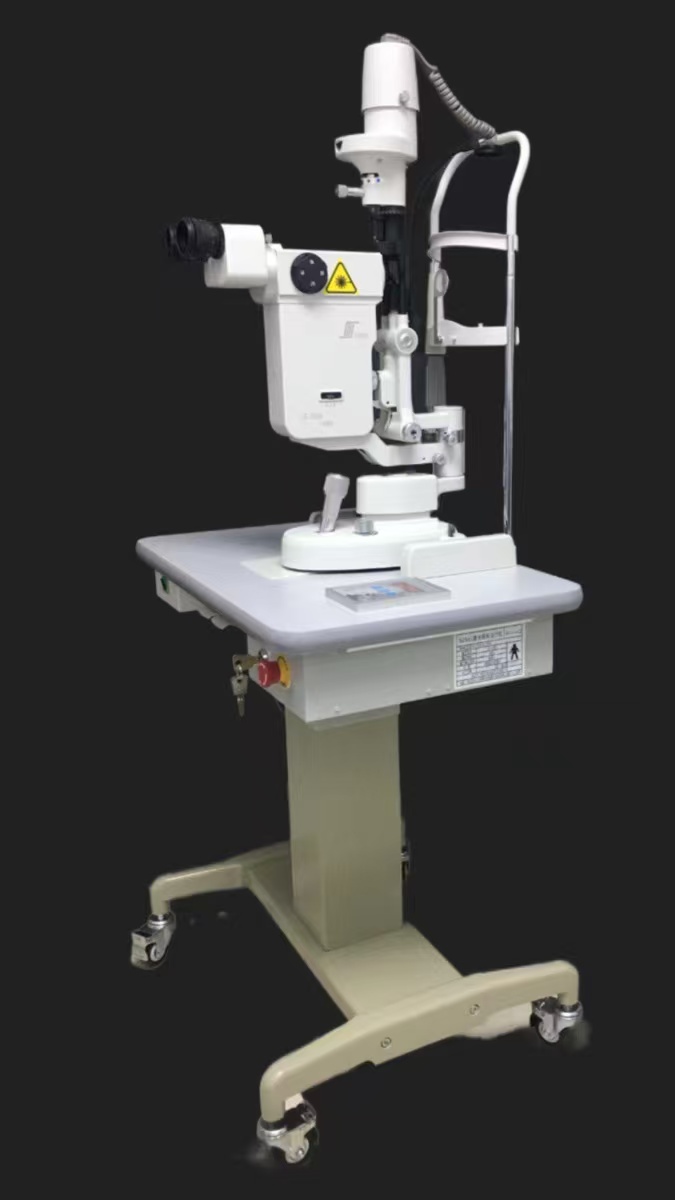

Description

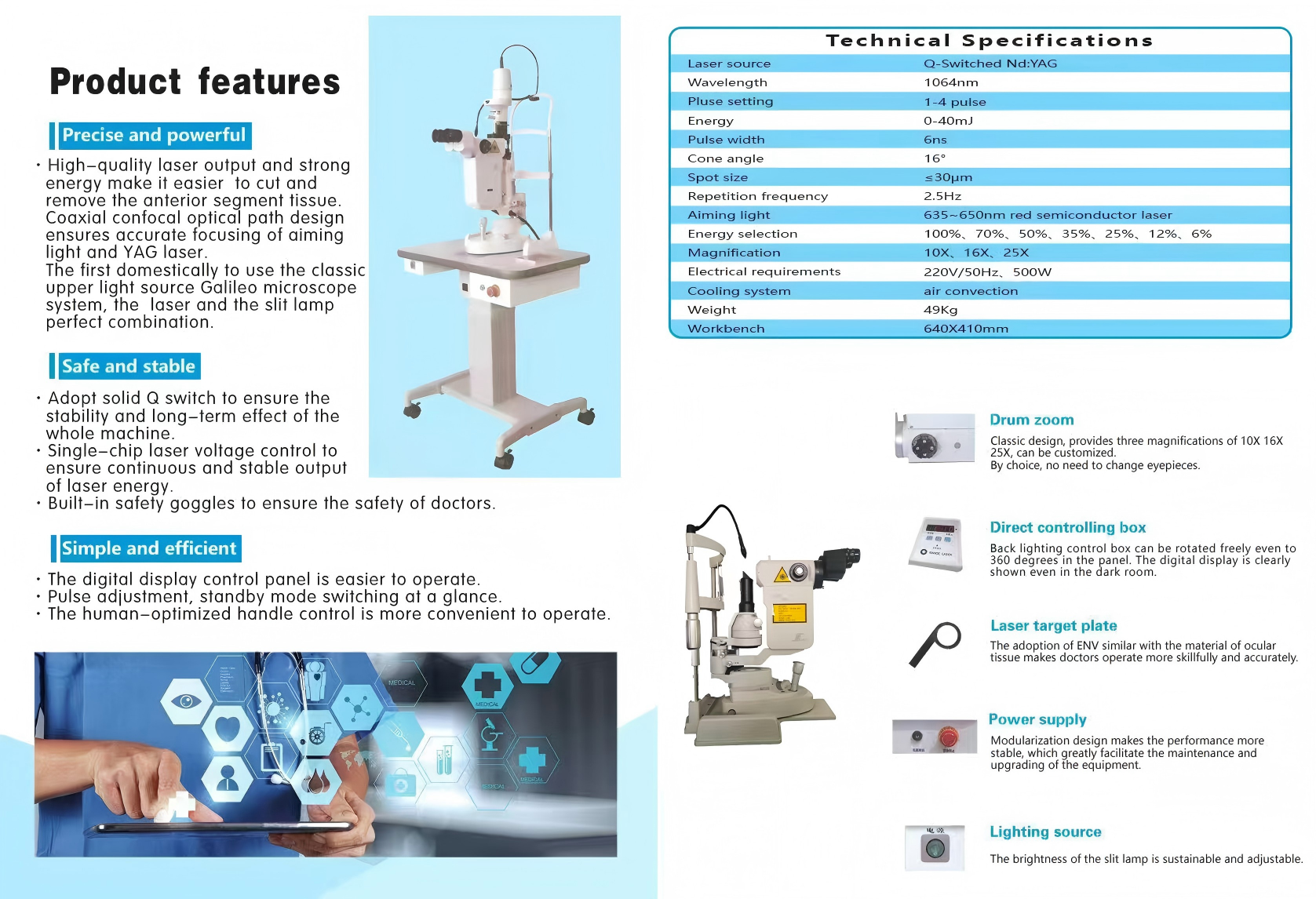

Technical Specifications

Laser source: Q-Switched Nd:YAG

Wavelength: 1064nm

Pluse setting: 1-4 pulse

Energy: 0-40mJ

Pulse width: 6ns

Cone angle: 16°

Spot size: ≤30μm

Repetition frequency: 2.5Hz

Aiming light: 635~650nm red semiconductor laser

Energy selection: 100%, 70%, 50%, 35%, 25%, 12%, 6%

Magnification: 10X, 16X, 25X

Electrical requirements: 220V/50Hz、500W

Cooling system: air convection

Weight: 49Kg

Workbench: 640X410mm

Drum zoom

Classic design, provides three magnifications of 10X 16X 25X, can be customized.

By choice, no need to change eyepieces.

Direct controlling box

Back lighting control box can be rotated freely even to 360 degrees in the panel. The digital display is clearly shown even in the dark room.

Laser target plate

The adoption of ENV similar with the material of ocular tissue makes doctors operate more skillfully and accurately.

Power supply

Modularization design makes the performance more stable, which greatly facilitate the maintenance and upgrading of the equipment.

Lighting source

The brightness of the slit lamp is sustainable and adjustable.
