Description

Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room, it features both monopolar and bipolar functions to satisfy all surgical demands with safety, flexibility, reliability and convenience.

Touch Screen

The electrosurgical system is controlled with a wide 7-inch TFT LCD touch screen with clean and sharp image quality, which provides the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Automatic Self-Test

Once switched on, the system performs a comprehensive internal test.

Two Pencils Work Simultaneously

It can meet the special surgeries like heart bypass operation and etc, which ensure two users can operate respectively without interference.

TURP Functions

Available under both Monopolar and Bipolar modes. This mode is used in underwater environment for surgery especially Resectoscopy, which removes the tissue in the prostate with kinetic plasma under saline liquid.

Pulse Output

• Pulse Cut Technology provides control of cutting depth for critical dissections necessary for Endoscopic retrograde cholangiopancreatography (ERCP), which is mainly for the Gastrointestinal (GI) range surgery.
• Pulse Coag Technology provides pulsing bursts of coagulation energy for more control of hemostasis during the operations, which ensure less tissue carbonization.

Polypectomy Function

Special cutting modes necessary to remove polyps and the procedure of Papillotomy, alternating of cutting and coagulation enables achieving optimal coagulation for this application and reduces the probability of bleeding.

Mastoid Cut Function

This function can be used for ENT surgeries and etc.

Endo-Cut Function

It produces pulse cutting perfect for endoscopy procedures under monopolar modes, which means alternations between cutting and coagulation stages, which can be used for the Gastroentrology.

Air-Beam Coag Function

A mode used for contact-free coagulation of surfaces, it eliminates smoke and smell, ensure very shallow and wide coagulation, necessary when there is a risk of perforation.

Real-time Monitoring and Instance Response System for Tissue Density

This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second, which enables it to respond to tissue impedance changes in less than 10 milliseconds, ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.

Ligasure Vessel Sealing (Seal-Safe)

With the above mentioned Real-Time and instance response system, it enables permanent sealing of blood vessels with a diameter up to 7mm with this technology under bipolar coagulation (Seal-safe modes).

Endoscopic Vessel Sealing (Endo-Safe)

Vessel sealing under water with endoscopic instrument.

Automatic Start / Stop

Under Bipolar cut and coagulation modes, user can choose pedal control or automatic control, under automatic control.

Memory Records Features

Memory program that allows customized settings for different interventions and surgeons. Now total 0-99 memory locations can be available for user-defined settings, which make the system a versatile, indispensable companion in HF surgery.

Compatible with Argon Plasma Coagulation System

Compatible with Argon Generator, non-contact tissue, which can have very good effect for digestive surgery.

Optimum Smoke Evacuation System

The Electrosurgical unit can be integrated with smoke evacuation system, which will automatically trigger the smoke evacuation when energy is activated.

Multilanguage Available

Language options: English, Spanish, Portuguese, Turkish and etc.

Upgrade Interface

RS232 interface available to connect with computer, which allows remote problem detect and further software upgrade.

Application of Use

General Surgery; Ligation Surgery; Gastroenterology; Dermatology; Vascular Surgery; Obstetrics and Gynecology; Heart/Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI); Cerebral surgery; Neurosurgery; Orthopedics & Plastic Surgery; Trans Urethral Resection (TUR) and etc.

Technical Specification

• Main Frequency: 512 KHz
• Power Supply: 100-240V / 50-60Hz
• Dimension: 341747cm
• Weight: 6.00KG

High Frequency Leakage

• Monopolar: < 150mA
• Bipolar: < 60mA

Low Frequency Leakage

• Normal Polarity, Intact Chassis Ground: <10µA
• Normal Polarity, Ground open: < 50µA
• Reverse Polarity, Ground Open: < 50µA
• Sink Current, 140V Applied, All inputs: < 50µA

Working Mode Parameters

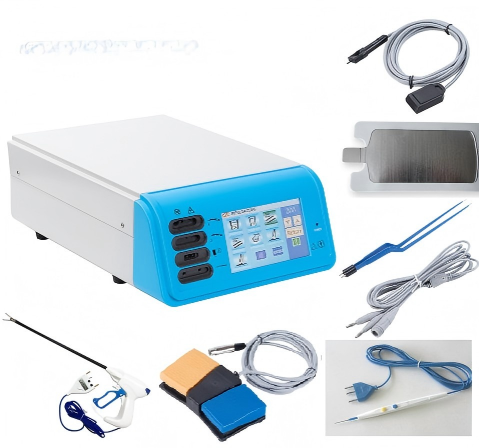

Accessories

The accessory kit can be defined to suit the user's needs and preferences.
