Product info

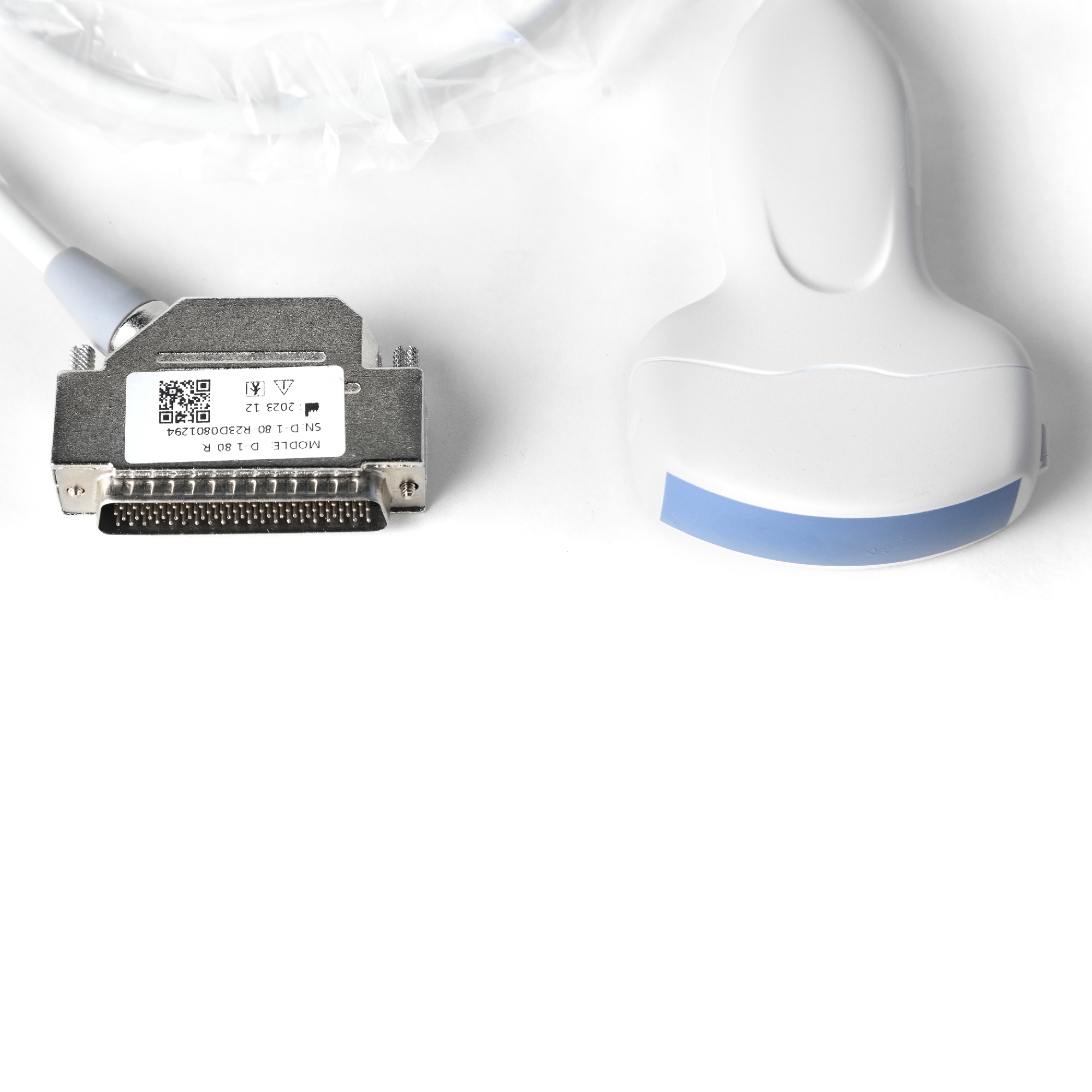

- Product name:Convex Array Ultrasound Probe
- Product code:CCBconvexprobe003
Packaging Specifications
- Outer Packaging Size:0.3 × 0.2 × 0.1 m
- Gross Weight:1 kg
- Net Weight:0.7 kg
- Volume:0.01
Description
| Probe frequency (MHz) | 3.5MHz |
| Probe type | Convex probe |
| Probe model | C1-5-2/60R/3.5MHz |
| Detection depth (mm) | ≥220 |
| Lateral resolution (mm) | ≤3 (depth≤80) ≤4 (80＜depth≤130) |
| Axial resolution (mm) | ≤2 (depth≤80) ≤3 (80＜depth≤130) |
| Blind spot (mm) | ≤5 |
| Horizontal geometric position accuracy (%) | ≤15 |
| Longitudinal geometric position accuracy (%) | ≤10 |
| Slice thickness (mm) | ≤10 |
| Perimeter and area measurement deviation (%) | ±20 |
| M mode time display error | ±10 |
| M mode distance display error | ±10 |
