Description

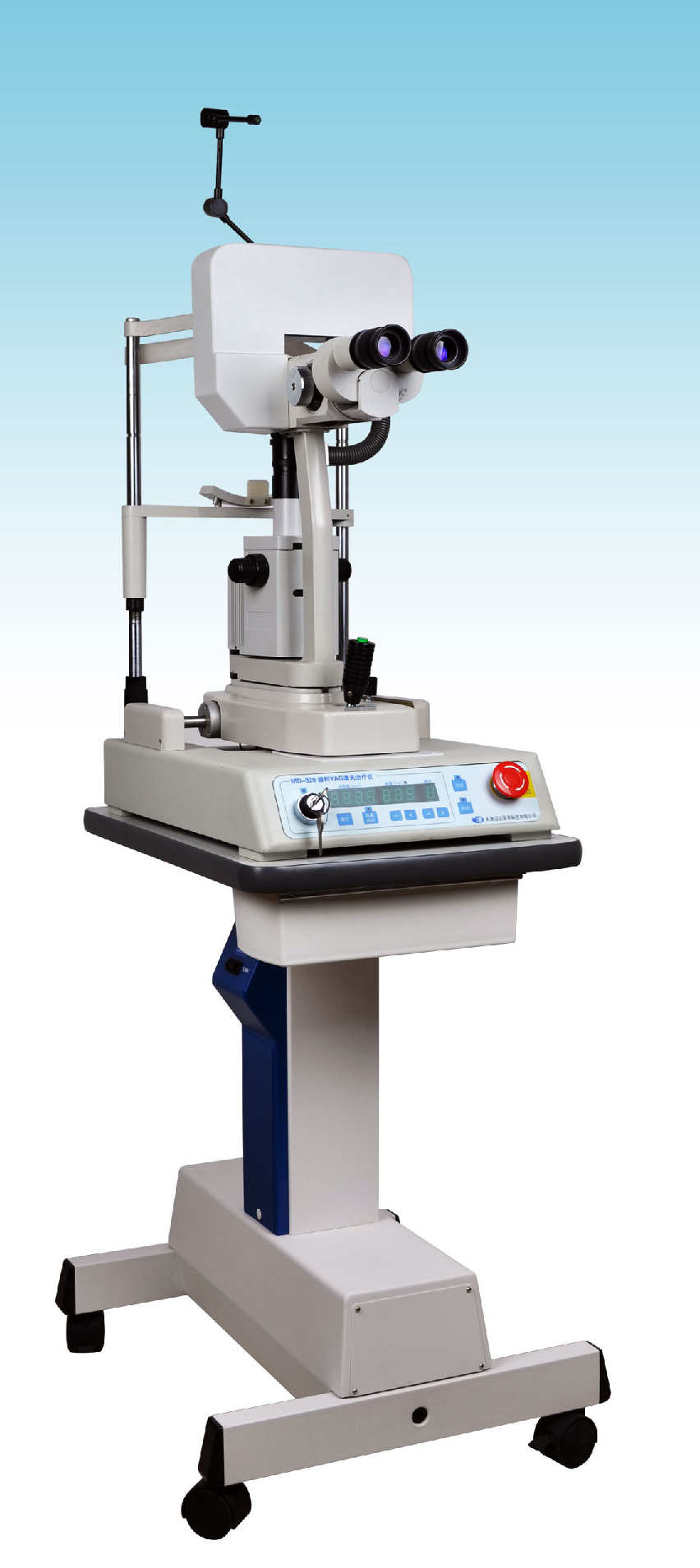

Ophthalmic Nd:YAG Laser System

The Ophthalmic Nd:YAG Laser System is professional anterior segment laser therapeutic equipment specially developed for ophthalmic minimally invasive laser surgeries. It delivers accurately controlled laser energy to complete posterior capsulotomy, peripheral iridotomy and other standard ocular procedures, widely deployed in general hospitals, specialized eye clinics and ophthalmology centers.

Features

● Adopts mature Q-switched Nd:YAG solid-state laser technology

● High-precision closed-loop energy control system for stable output

● Customizable adjustable laser pulse quantity and energy parameters

● Built-in 635–650nm red aiming beam for precise lesion positioning

● Three optional magnification levels for clear microscopic observation

● Stable continuous laser output for long-duration clinical operations

● Intuitive touch control panel for simple parameter adjustment

Clinical Applications

Used for:

● Posterior capsulotomy after cataract implantation surgery

● Peripheral laser iridotomy for glaucoma treatment

● General anterior segment ophthalmic laser photodisruption procedures

● Routine therapeutic laser treatment in eye hospitals and clinics

Technical Specifications

● Product Type: Ophthalmic Q-Switched Nd:YAG Laser System

● Laser Core: Q-Switched Nd:YAG solid laser

● Working Wavelength: 1064nm

● Adjustable Pulse Modes: 1–4 pulses per trigger

● Output Energy Range: 0–40mJ

● Pulse Width: 6ns

● Focal Spot Size: ≤30μm

● Repetition Frequency: 2.5Hz

● Aiming Beam: 635–650nm red semiconductor laser

● Energy Adjustment Gears: 100%, 70%, 50%, 35%, 25%, 12%, 6%

● Magnification Options: 10X / 16X / 25X

● Cooling Mode: Air convection cooling system

● Power Supply: AC 220V, 50Hz, 500W

Note: All parameters are for reference only; final configuration subject to actual product. Source: chinacaremedical.com

Product Advantages

● Ultra-fine focal spot realizes highly precise, minimally invasive ophthalmic laser therapy

● Consistent stable laser performance ensures uniform treatment effect for every patient

● Complete adjustable parameters cover all mainstream anterior segment laser surgeries

● Compact integrated structure perfectly matches hospital ophthalmology departments and eye clinics

● User-friendly operation reduces operation difficulty for ophthalmic surgeons
