Description

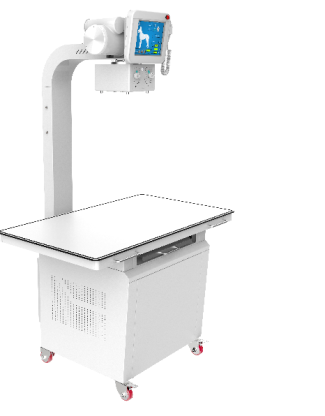

eterinary Digital X-Ray System

Applications

Widely used for equine/large animal, companion, exotic, and mixed animal practices. It is easy to use, ultra-durable, and produces high-quality digital images.

Key Features

• Deft and concise design
• 6-digit digital LED display
• Failure self-protection and self-diagnosis functions
• High-precision control of tube voltage and tube current
• 48 kinds of presupposed anatomical memory patterns
• Accuracy control via simulation and double digital loops
• Lead-shielded X-ray tube to prevent leakage
• Arial 16pt Bold
• Technical Specifications
• Arial 14pt
• Power Supply: AC220V ± 22V
• Power: 5kW
• kV Range: 40 ~ 110kV
• mA Range: 20 ~ 100mA
• mAs Range: 0.2 ~ 200mAs
• Working Frequency: ≥40kHz
• Exposure Time: 0.01s ~ 4s
• Anode Heat Storage: 56KHU
• Focal Spot: 1.8mm
• Inherent Filtration: 1mm Al/75kV
• Light Source: LED
• Screen Size: 10.4 inch
• Unit Weight: 19 kg
• Unit Dimensions: 290 × 265 × 230 mm
