Description

Technical Parameters

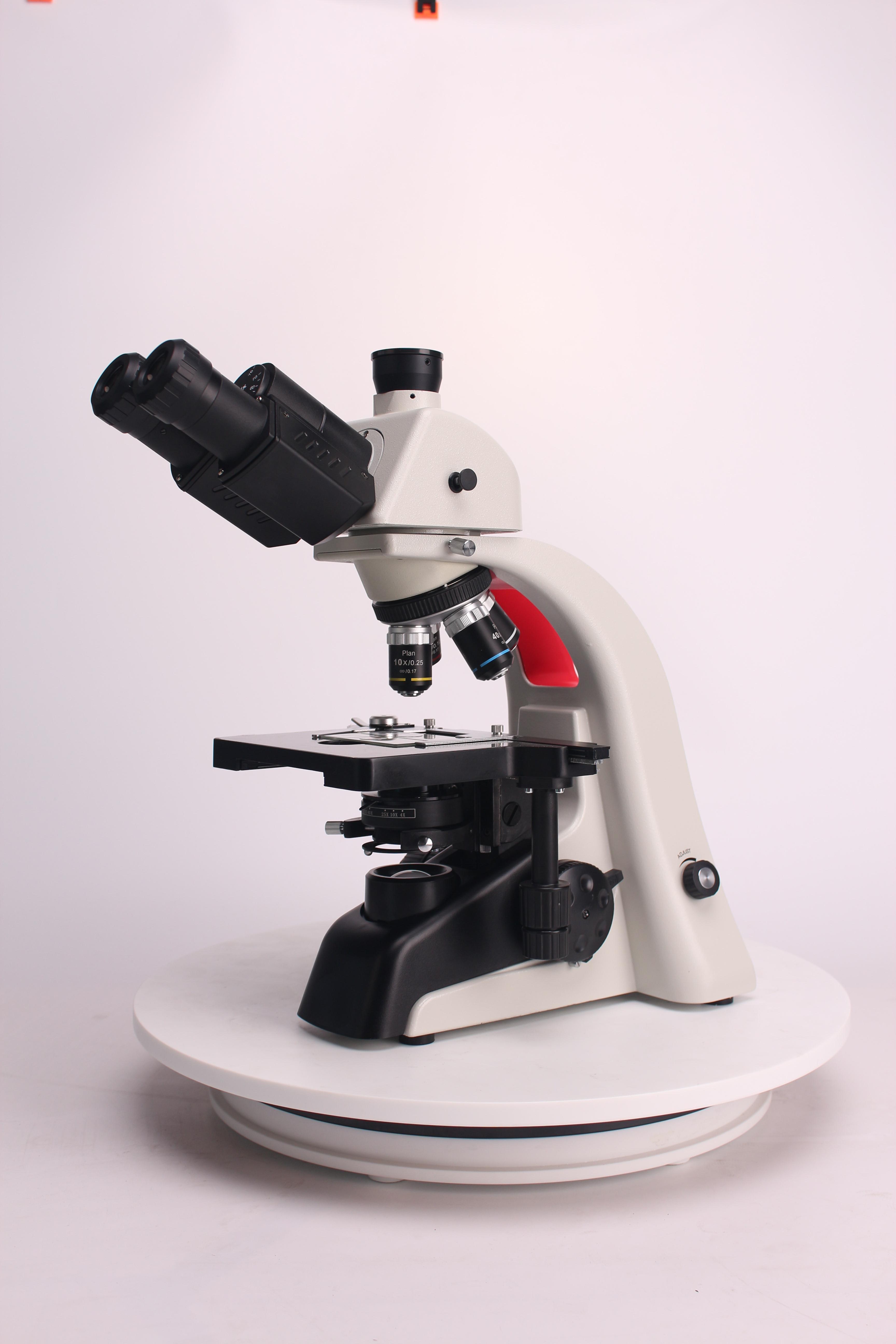

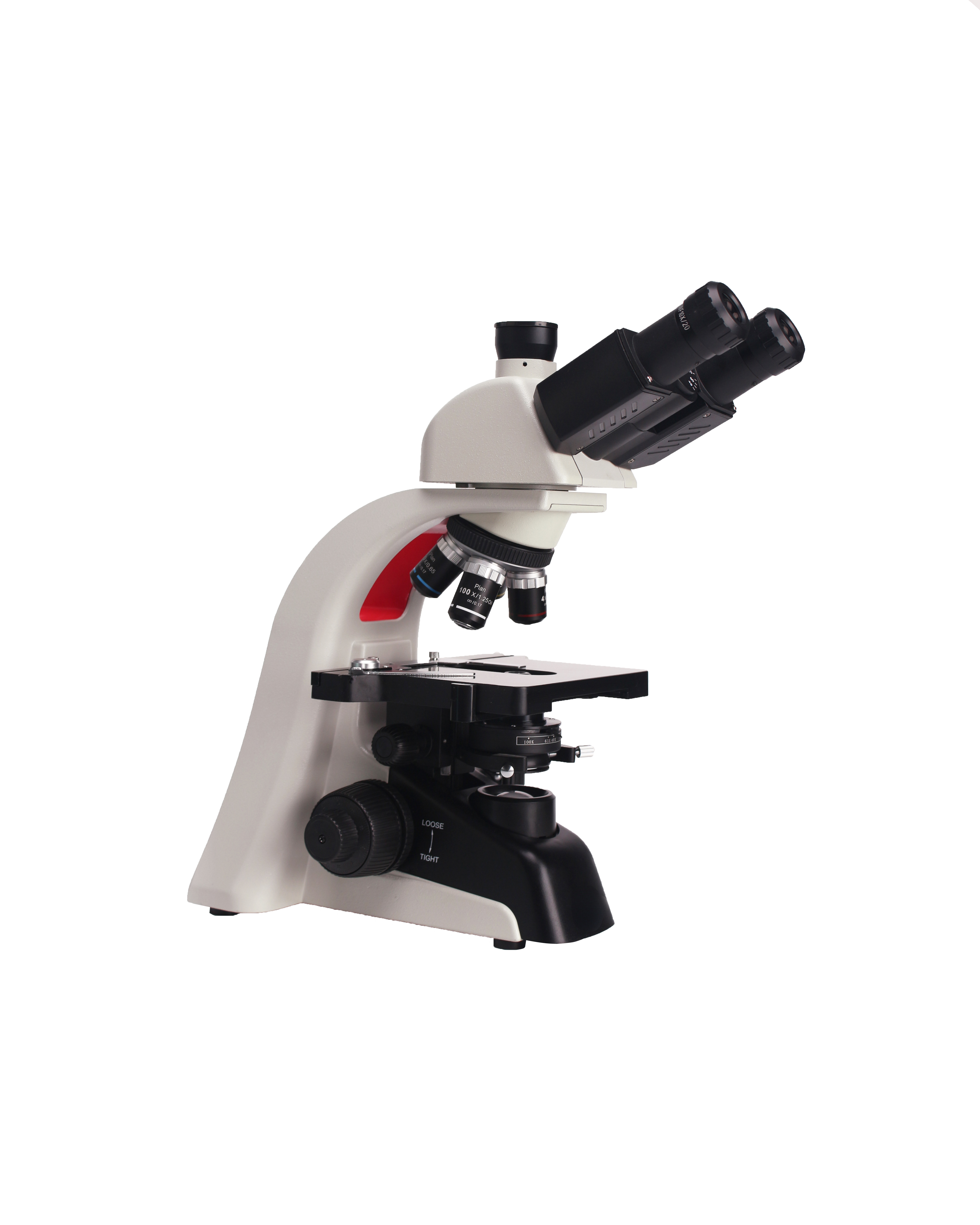

• Magnification Range: 40X – 1600X
• Viewing Head: Infinity-corrected trinocular head, 30° inclined, 360° rotatable via push-pull rod; interpupillary distance adjustable from 48 mm to 75 mm
• Eyepieces:
  WF10X / 20 mm (diopter adjustable)
  WF16X / 15 mm (diopter adjustable)
• Nosepiece: Inward revolving quadruple nosepiece
• Infinity Plan Achromatic Objectives: IPL4X, IPL10X, IPL40X (spring loaded), IPL100X (spring loaded, oil immersion)
• Focusing System: Coaxial coarse & fine focusing with random positioning lock; handwheel tightness adjustable. Coarse travel: 22 mm; fine focusing graduation: 0.002 mm per division
• Stage: Double-layer mechanical stage for 2 specimen slides; dimension 160 mm × 142 mm; moving range X:76 mm, Y:52 mm
• Condenser: Abbe condenser, N.A.1.25, vertically liftable & center adjustable, equipped with iris diaphragm
• Power Supply: External regulated DC 5V/2A power adapter
• Bottom Illumination: 3W LED cold light source with compound eye lighting, continuously adjustable brightness
• Extra Accessory: Universal CCD camera adapter compatible with all standard industrial CCD cameras

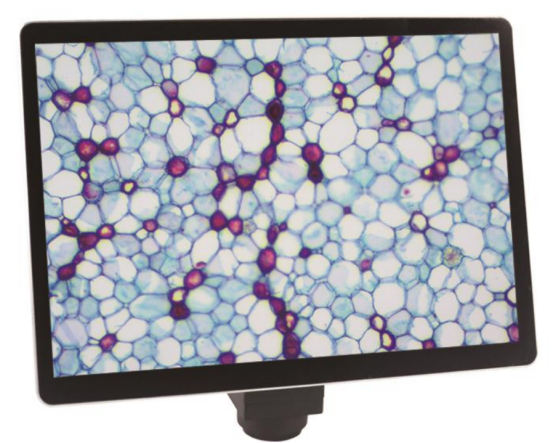

HD Stereo Flat Camera (Android 11 System Version)

Product Specification

Product Classification: HD Stereotype Flat Camera with Android 11 Operating System

Sensor Size: 1/2 inch CMOS Sensor

Effective Resolution: 4K

Display Screen: 10.5-inch Full-laminated HD Capacitive Touch Screen

OS Version: Android 11

Wi-Fi: Dual-band 2.4GHz + 5GHz, Wi-Fi 6 compatible

Bluetooth: Bluetooth 5.0

External Interfaces: 2 × USB3.0, 1 × USB2.0, HDMI Output, Gigabit Ethernet Port

Pixel Dimension: 2.0μm × 2.0μm

Input Power: DC 12V / 2A

Matching Software: Android Interactive System + S-EYE2.0 Professional Measurement Software

Image Parameter Adjustment

Adjustable parameters: Brightness, Contrast, Saturation, Color Temperature

Built-in Camera Functions

Image Mirror, Vertical/Horizontal Flip, Real-time Freeze Frame, Black & White Filter Mode

Operation Mode

Humanized graphical UI; full touch control + external mouse compatible operation

Capture & Recording Function

• Photo Capture: 4K resolution still image shooting
• Video Recording: 1080P HD video recording
• Instant preview for captured photos and saved videos

Marking & Positioning Functions

Point coordinate display, crosshair overlay, multi-coordinate system switching, editable text annotation

Dimensional Measurement Functions

1. Linear measurement: Straight line, polyline, curve length, parallel line spacing, point-to-line distance
2. Circular measurement: Radius-defined circle, two-point circle, three-point circle, concentric circle
3. Area measurement: Rectangular area, arbitrary polygon area

Standard Accessories

DC 12V/2A Power Adapter
