Description

Technical Parameters

• Magnification Range: 40X – 1600X

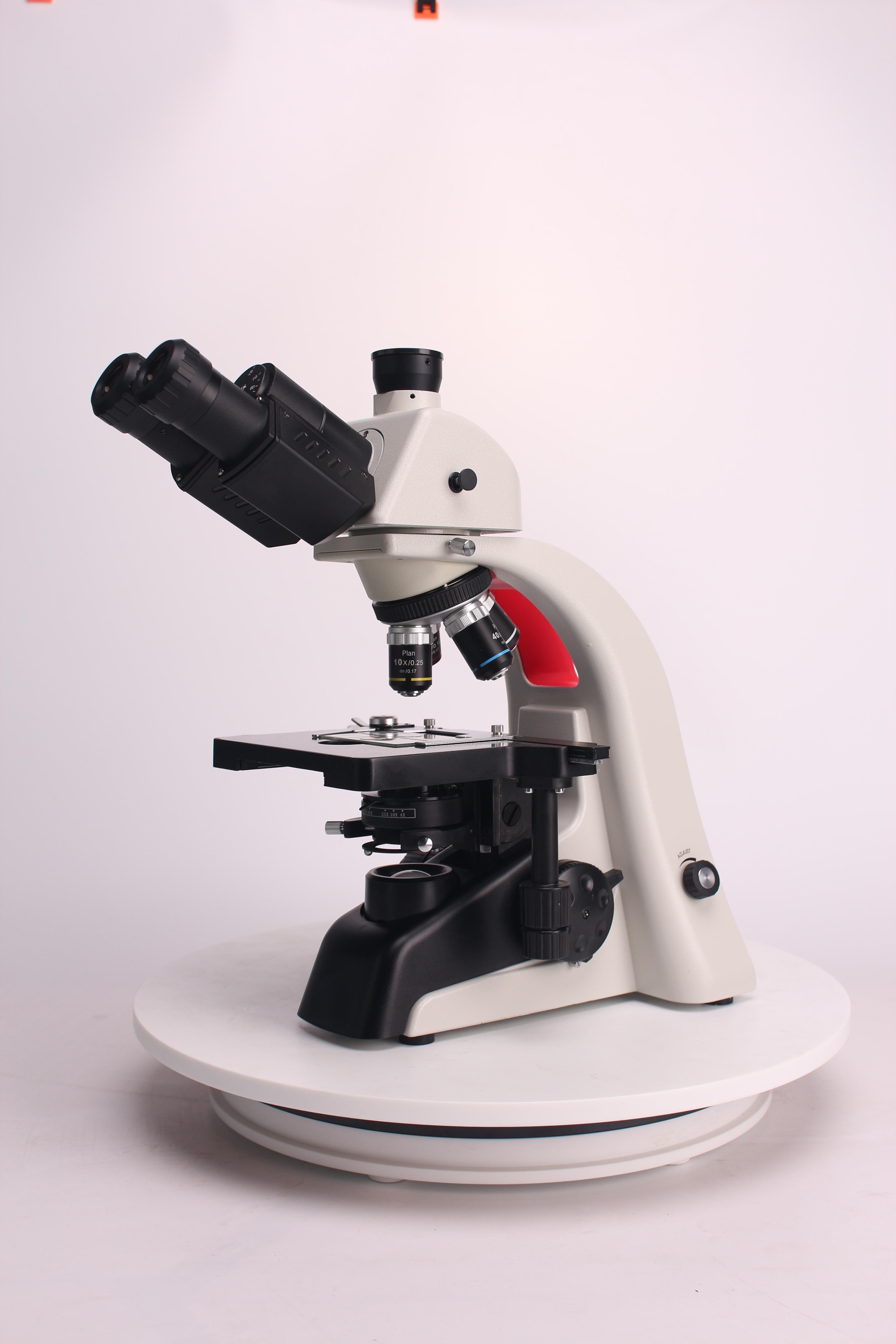

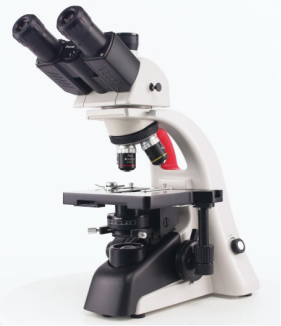

• Viewing Head: Infinity-corrected trinocular head, 30° inclined, 360° rotatable via push-pull rod; interpupillary distance adjustable from 48 mm to 75 mm
• Eyepieces:
  WF10X / 20 mm (diopter adjustable)
  WF16X / 15 mm (diopter adjustable)
• Nosepiece: Inward revolving quadruple nosepiece
• Infinity Plan Achromatic Objectives: IPL4X, IPL10X, IPL40X (spring loaded), IPL100X (spring loaded, oil immersion)
• Focusing System: Coaxial coarse & fine focusing with random positioning lock; handwheel tightness adjustable. Coarse travel: 22 mm; fine focusing graduation: 0.002 mm per division
• Stage: Double-layer mechanical stage for 2 specimen slides; dimension 160 mm × 142 mm; moving range X:76 mm, Y:52 mm
• Condenser: Abbe condenser, N.A.1.25, vertically liftable & center adjustable, equipped with iris diaphragm
• Power Supply: External regulated DC 5V/2A power adapter
• Bottom Illumination: 3W LED cold light source with compound eye lighting, continuously adjustable brightness

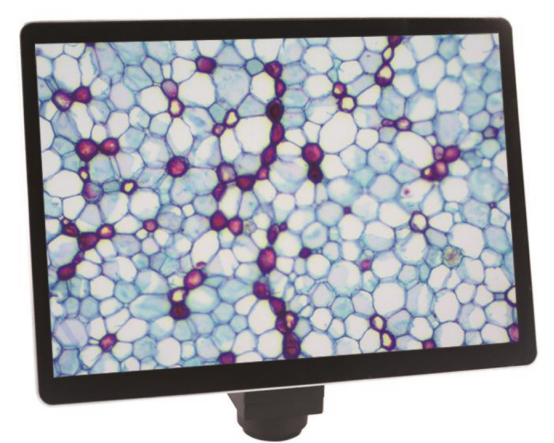

• Extra Accessory: Universal CCD camera adapter compatible with all standard industrial CCD cameras
