Description

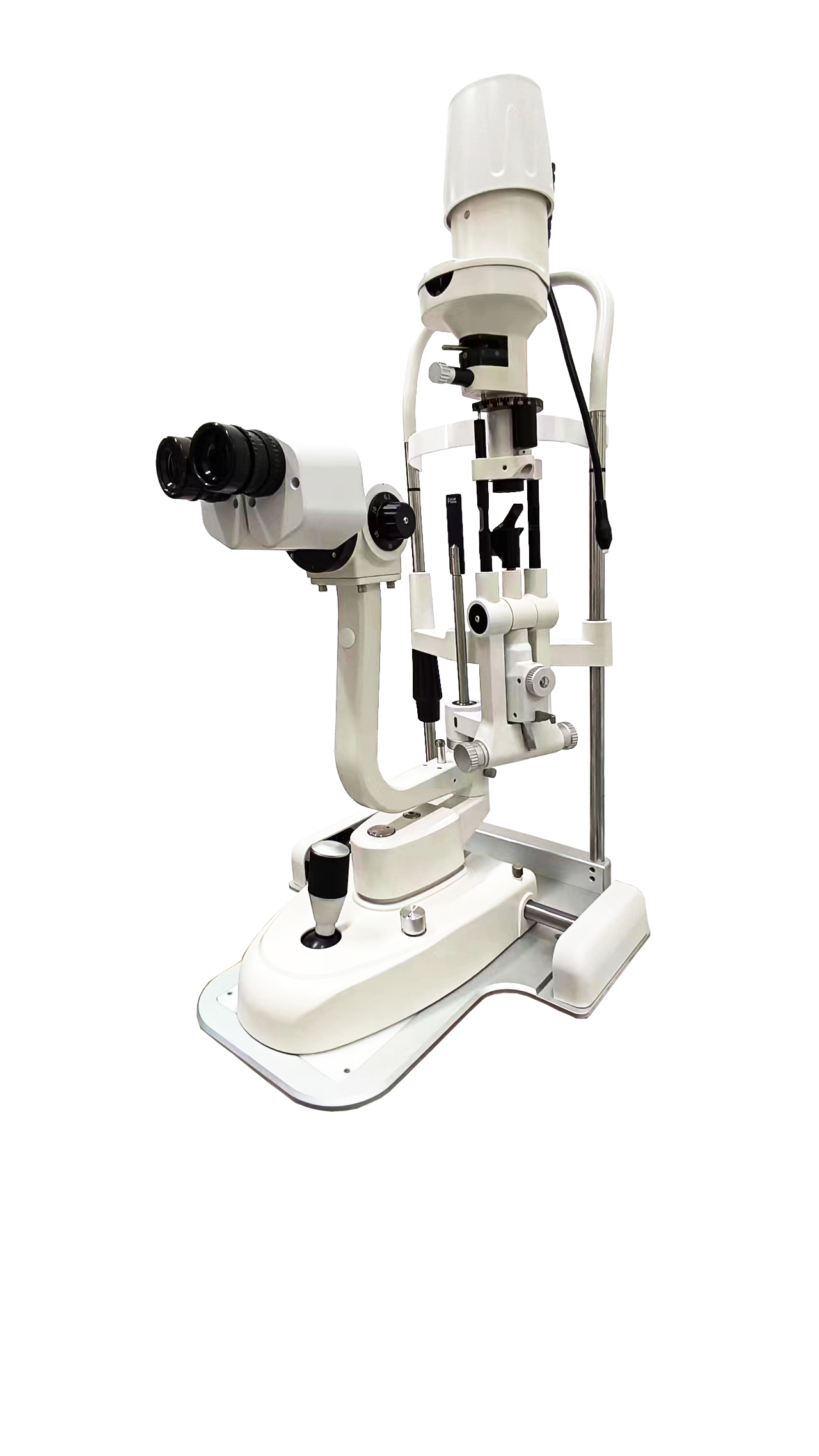

Slit Lamp

New Technologies And Powerful Functions

Simple operation interface provides with accurate operation experience.

Features

• PARALLEL TYPE, GALILEAN SYSTEM

Stereoscopic binocular fusion

Can upgrade to teaching slit lamp and digital slit lamp

• MAGNIFICATION CHANGER: REVOLVING DRUM

SL-520: 6x, 10x, 16x, 25x, 40x, 5-step magnification.

Specification

Microscope Type: Galilean System

Magnification Changer: Revolving Drum

Eyepiece Magnification: 12.5X

Slit Width: 0mm~14mm Continuously Adjustable

Slit Length: 1mm~14mm Continuously Adjustable

Slit Angle: 0~180°Continuously Adjustable

Filter: Heat Aborption, Grey, Redfree (Green), Cobalt Blue

Light Control: PWM: Pulse Width Modulation

Light Source: Warm LED

Magnification: 6.3X,10X,16X,25X,40X

Diopter: ±7D

Pupil Range: 52mm–85mm

Visual Field Diameter: 6X:33mm; 10X:22mm; 16X:14mm; 25X:8.5mm; 40X:5.5mm

Illumination Type: Haag-Streit Type

lumination Tilting: 5°,10°,15°,20°

Slit Aperture Size: φ0.2, φ1, φ3, φ5, φ10, φ14 (mm)
