Description

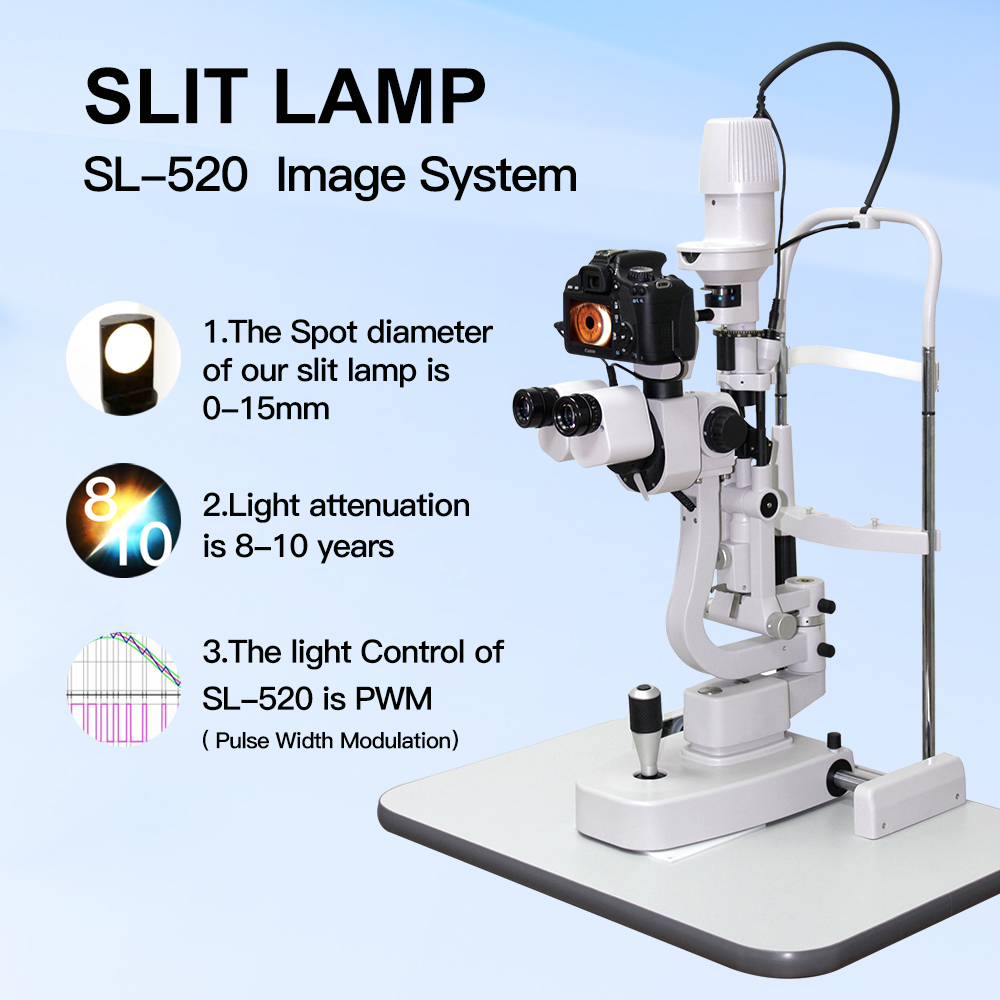

Image System Digital Slit Lamp

CE FDA

New Technologies And Powerful Functions Simple operation interface provides with accurate operation experience.

Better Detail For Better Quality

Basic Series

Magnification: 6X,10X, 16X, 25X, 40X

Diopter: ±7D

Pupil Range: 52mm-85mm

Visual Field Diameter: 6X:33mm; 10X:22mm; 16X:14mm; 25X:8.5mm; 40X:5.5mm

Illumination Type: Haag-Streit Type

Illumination Tilting: 5°,10°,15°,20°

Slit Aperture Size: φ0.2,φ1,φ3,φ5,φ10, φ14 (mm)

Eyepiece Luminous Rate: 60%

Camera Luminous Rate: 40%

Background illumination: CO-Axial

Specification

Microscope Type: Galilean System

Magnification Changer: Revolving Drum

Eyepiece Magnification: 12.5X

Slit Width: 0mm~14mm Continuously Adjustable

Slit Length: 1mm~14mm Continuously Adjustable

Slit Angle: 0~180°Continuously Adjustable

Filter: Heat Absorption, Grey, Redfree (Green), Cobalt Blue

Light Control: PWM: Pulse Width Modulation

Light Source: Warm LED

Features

• ADAPTIVE PARAMETERS

One key shooting can easily obtain high-quality image without heavy training of exposure, ISO, shutter speed and other parameters

• MANAGEMENT SOFTWARE

More clear and direct to manage patents' information

One key export is supported, making it easier to transfer data

• DATA SHARING

With abundant image processing functions to meet various clinical needs

DICOM,HIS/PACS is supported
