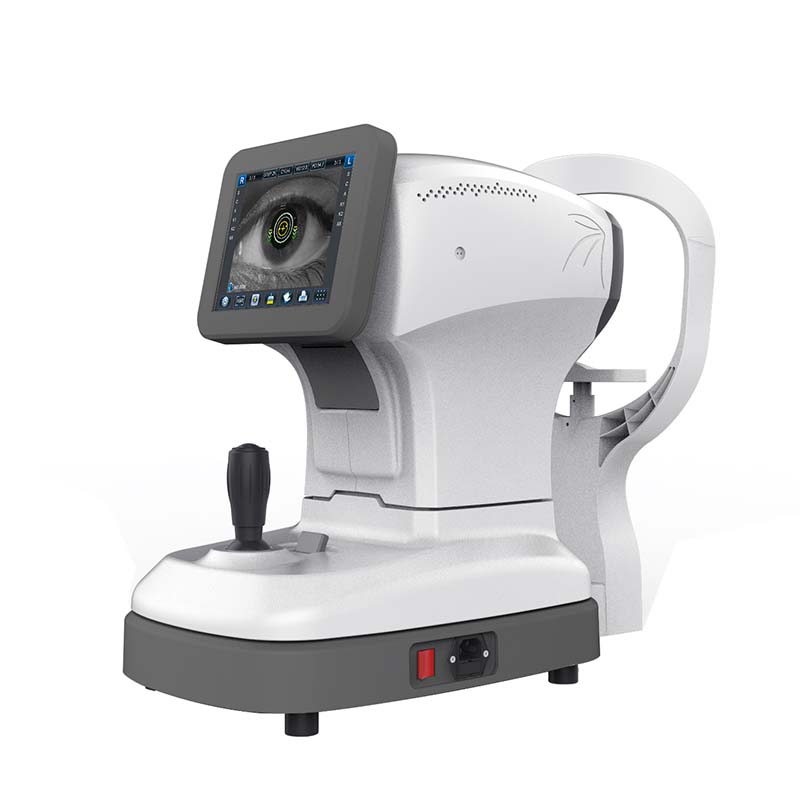

Description

Partial details design

Humanized detail design

Comfortable operation and smooth measurement

Adjustable LCD screen for convenient measurement

Specification

Hartmann's Principle

New light path design, clear human eye imaging effect

High-speed image acquisition system, advanced image processing and analysis

The screen can be rotated freely up and down

Automatic eye tracking for lifting, automatic measurement

Electric lifting amount tow

Off-speed printer

Corneal apex distance: 0.0, 12.0, 13.75, 15.0

Spherical mirror degree: -20.00D - + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units)

Cylindrical power: 0.00D ~ + 10.00D (0.06, 0.12, 0.25 units)

Axis position: 10~180°(1°unit)

Astigmatism symbol: -, +, +

nterpupillary distance: 10~ 86mm

Minimum pupil diameter: 2.0mm

Measurement completion time: <0.5 seconds.

Pupil diameter: 2.00-8.00mm

Measure light energy: <30uw (ensure measurement safety)

Stored data: 10 measurements each

Axis position: 1 °- 180

Visual target: Guided cloud map

Display: 8-inch TFT touch screen (adjustable viewing angle)

Printer: 57mm thermal printer

Power supply: AC 100 ~ 250V, 50/ 60Hz, wide power supply

Net weight: 22 kg

Gross weight: 26.5 kg

Packing size: (length) 680mm x (width) 400mm x (height) 640mm
