Description

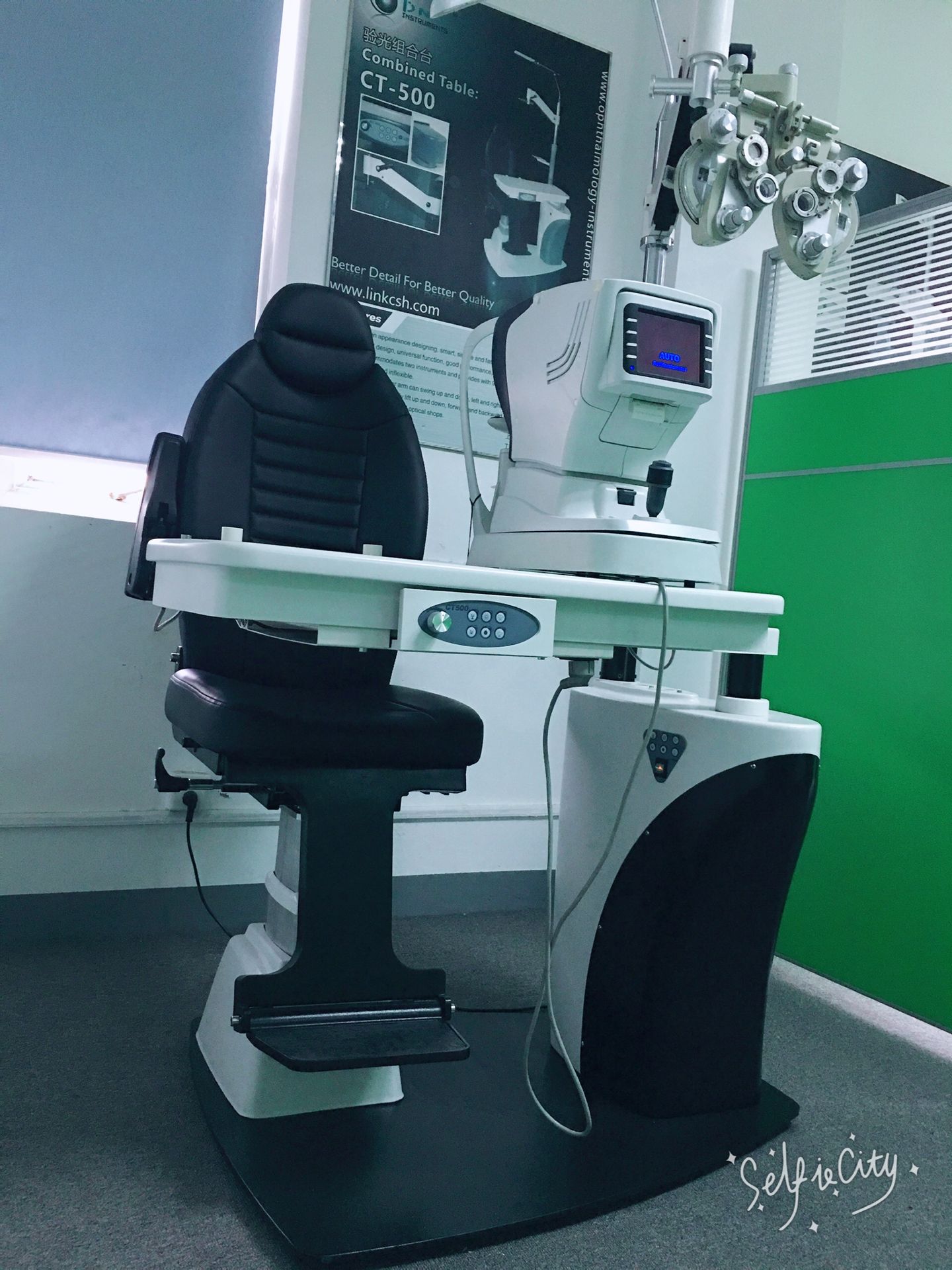

Chair and Stand Unit

Better Detail For Better Quality

Chair and Stand Unit

Better Detail For Better Quality

Features

◆ Adopted European style in appearance designing, smart, simple and fashionable, ergonomic design, universal function and good performance, easily operation.

◆ Sliding table accommodates two instruments and provides with 90 degrees' rotation.

◆ Hand-operated phoropter arm can swing up and down, left and right.

◆ Reclining Chair can smoothly lift up and down, forward and backward with low noise.

◆ It can be used with kinds of ophthalmic instruments, and it's the ideal choice for hospitals, clinics and optical shops.

Specification

Unit size: 1100×800×2100mm

Table Size: 890×405mm

Table rotation range: 90°

Table movable range: 335mm

Swing arm oscillation angle: +35°

Chair rotation range: 60°

Chair up and down range: 510–600mm

Chair loading ability: 200–250kg

Chair backrest obliquity: 160°

Lamp: Halogen (24V, 3W)

Electric Voltage: AC220V/110V 50/60HZ

Weight: 200kg

Options

Option1: The interface for slit lamp.

Option2: Don't need the interface.
