Description

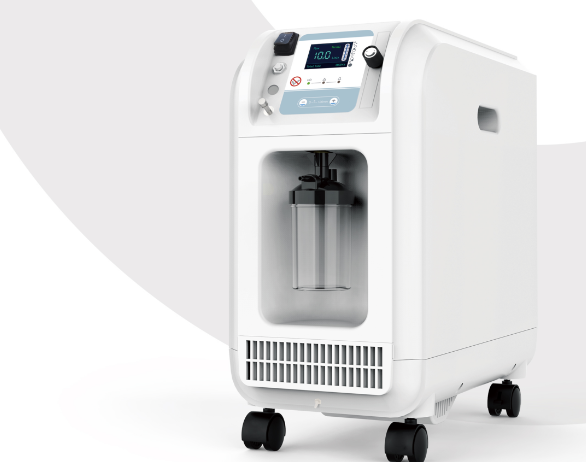

MEDICAL OXYGEN CONCENTRATOR

This oxygen concentrator is composed of air compressor, molecular sieve adsorption tower, sensor and flowrate controller. It adopts PSA (pressure swing adsorption) technology with high-quality molecular sieve as absorbent to directly produce high-concentration medical oxygen from air. It is equipped with medical air intake filter and overload protection. It features small size, light weight, convenient movement with turning truckles, stable performance, high safety, easy operation and low noise, complying with medical device requirements. It is widely used in clinics, hospitals, oxygen bars, plateau outposts, gym centers and other places.

FUNCTION

• With working indicator
• Built-in filters to purify the gas
• Oxygen concentration status indicator
• Oxygen flow indication
• Function of accumulating time
• Function of timing shutdown
• Alarm for power failure
• Alarm for high/low pressure protection
• Alarm for low flowrate
• Alarm for high temperature

PERFORMANCE

• Maximum flowrate recommended: 10L/min
• Oxygen Output Concentration Levels: 93%±3%
• Flowrate range: 0.5L/min~10 L/min
• Flowrate change at maximum recommended flowrate with 7kPa back pressure: <1L/min
• Outlet pressure: 20kPa~50 kPa
• Input Power Consumption: 700 VA
• Electrical Requirements: AC110V±10% 50Hz±1Hz; AC220V±10% 50Hz±1Hz
• Operating noise: ≤60 dB(A)

SAFETY CATEGORIES

1. Type of protection against electroshock: class II equipment
2. Degree of protection against electroshock: Type BF applied part
3. Degree of protection against ingress of water: IP21

PHYSICAL CHARACTERISTIC

• Dimension: 508mm×260mm×530mm
• Weight: 28kg

OPERATING ENVIRONMENT

• Temperature: 10℃-40℃
• Relative humidity: ≤80%
• Atmospheric pressure: 860 hPa~1060 hPa

ACCESSORIES

• Humidifier bottle
• User manual
• Power cord
• Nasal cannula
