Product info

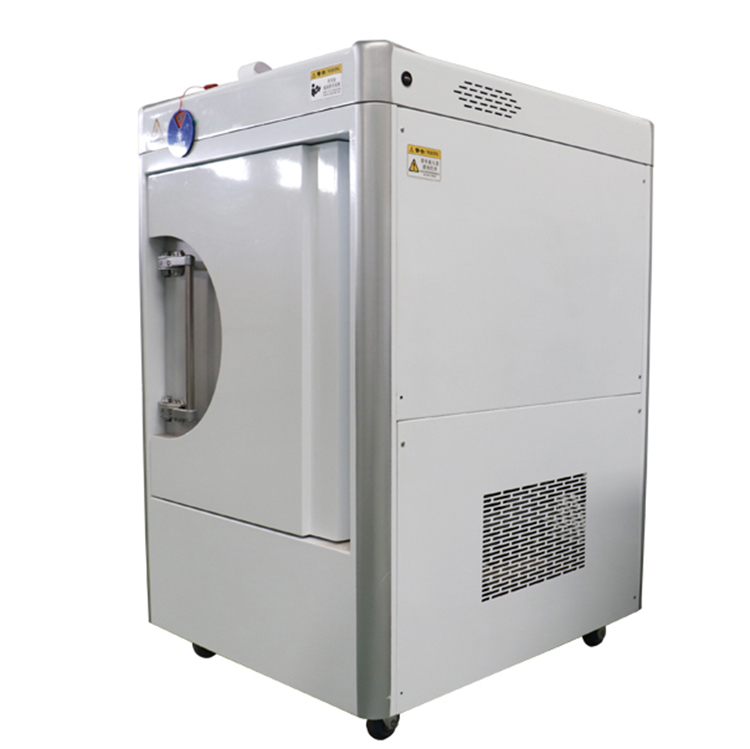

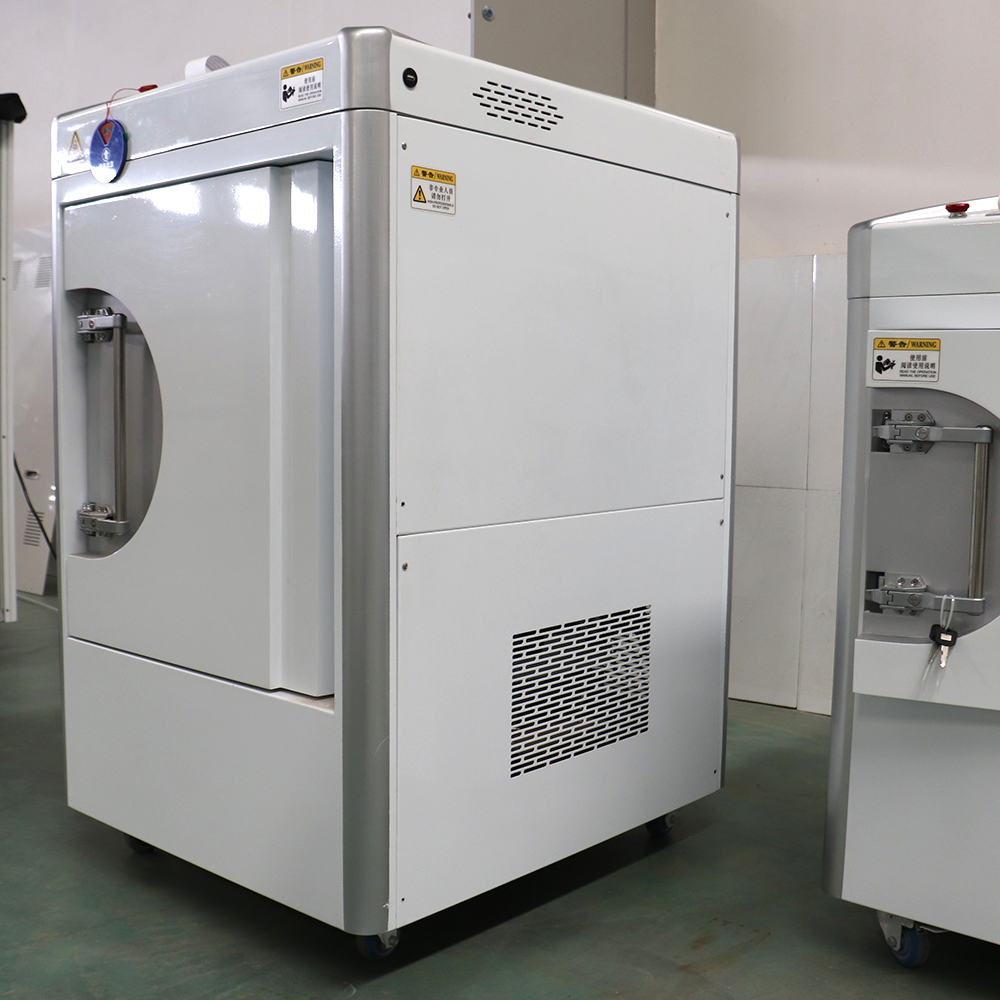

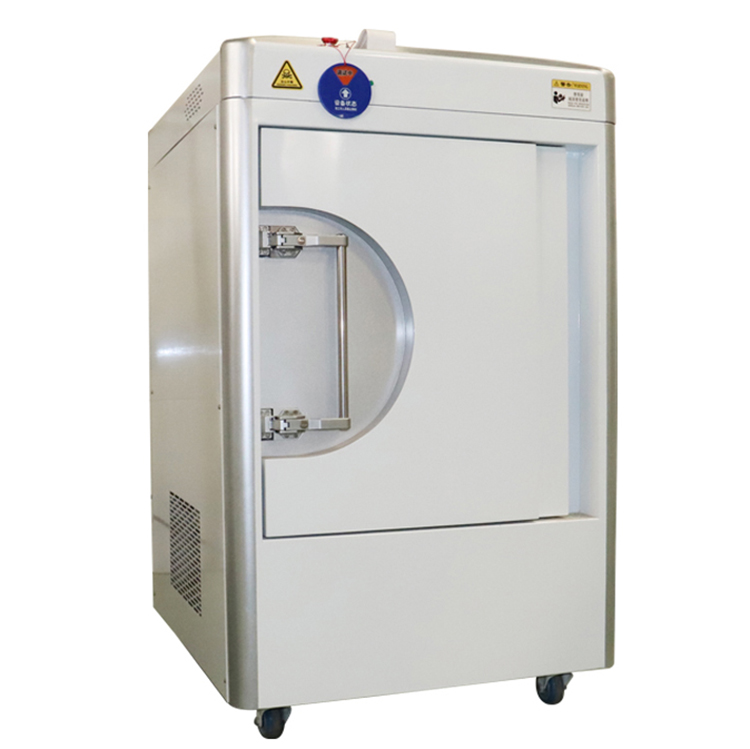

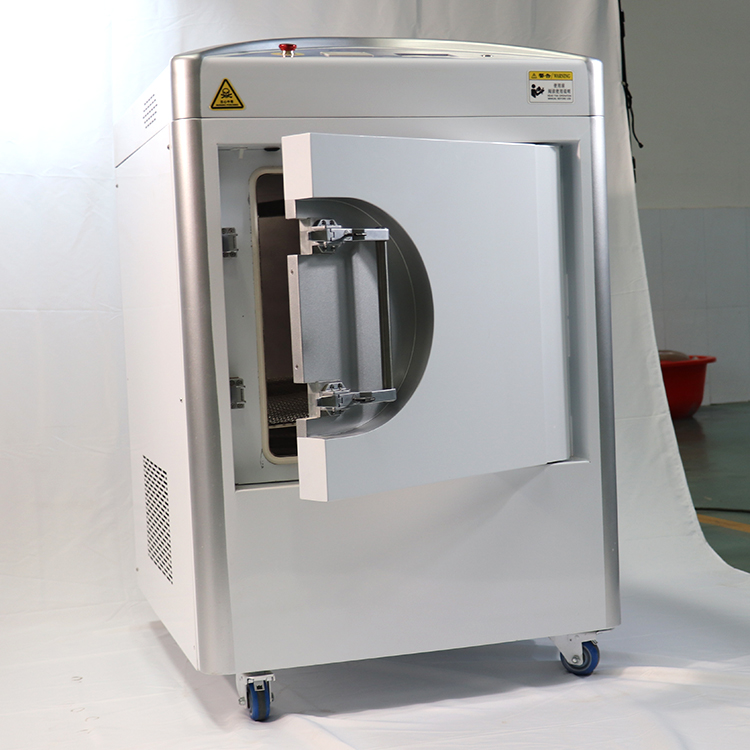

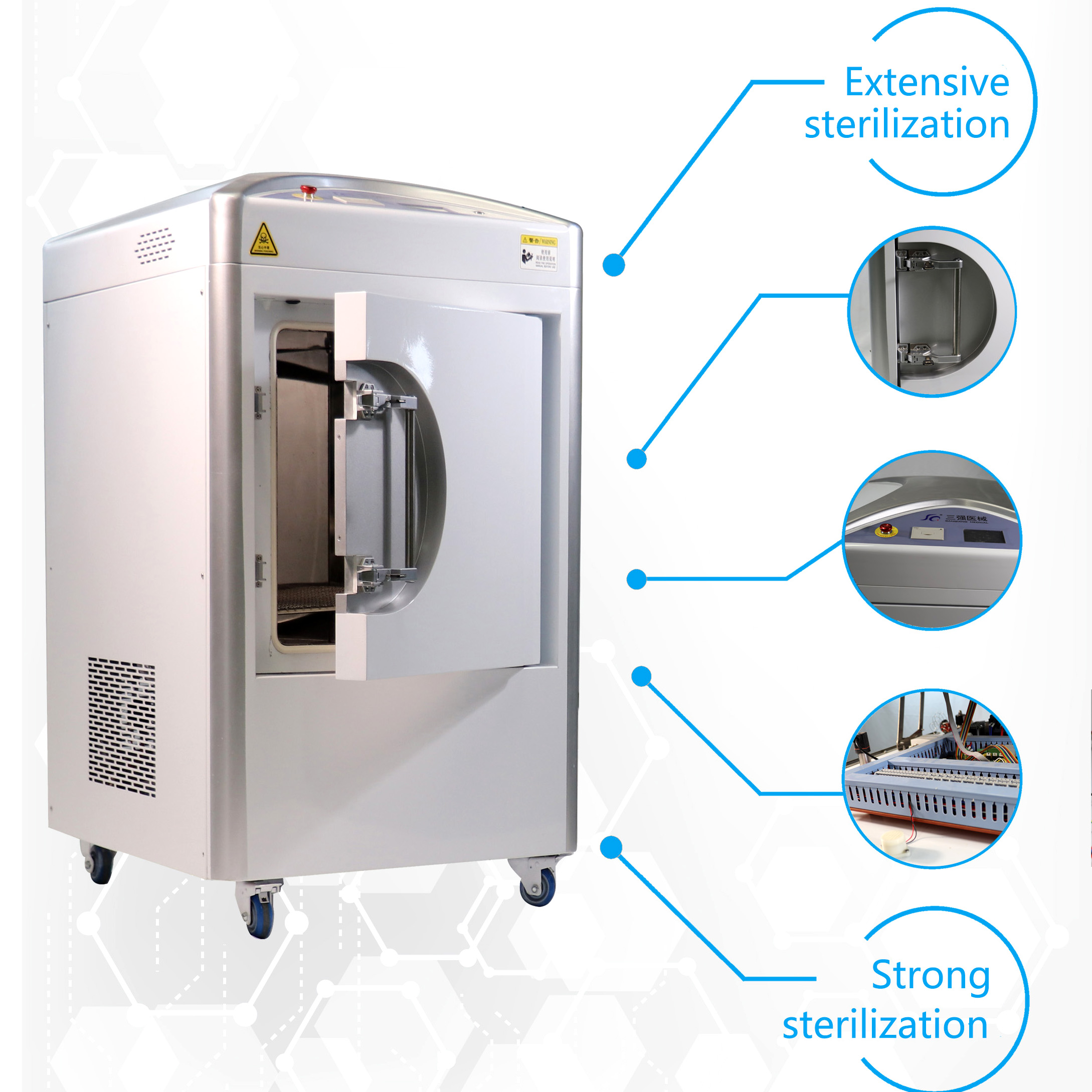

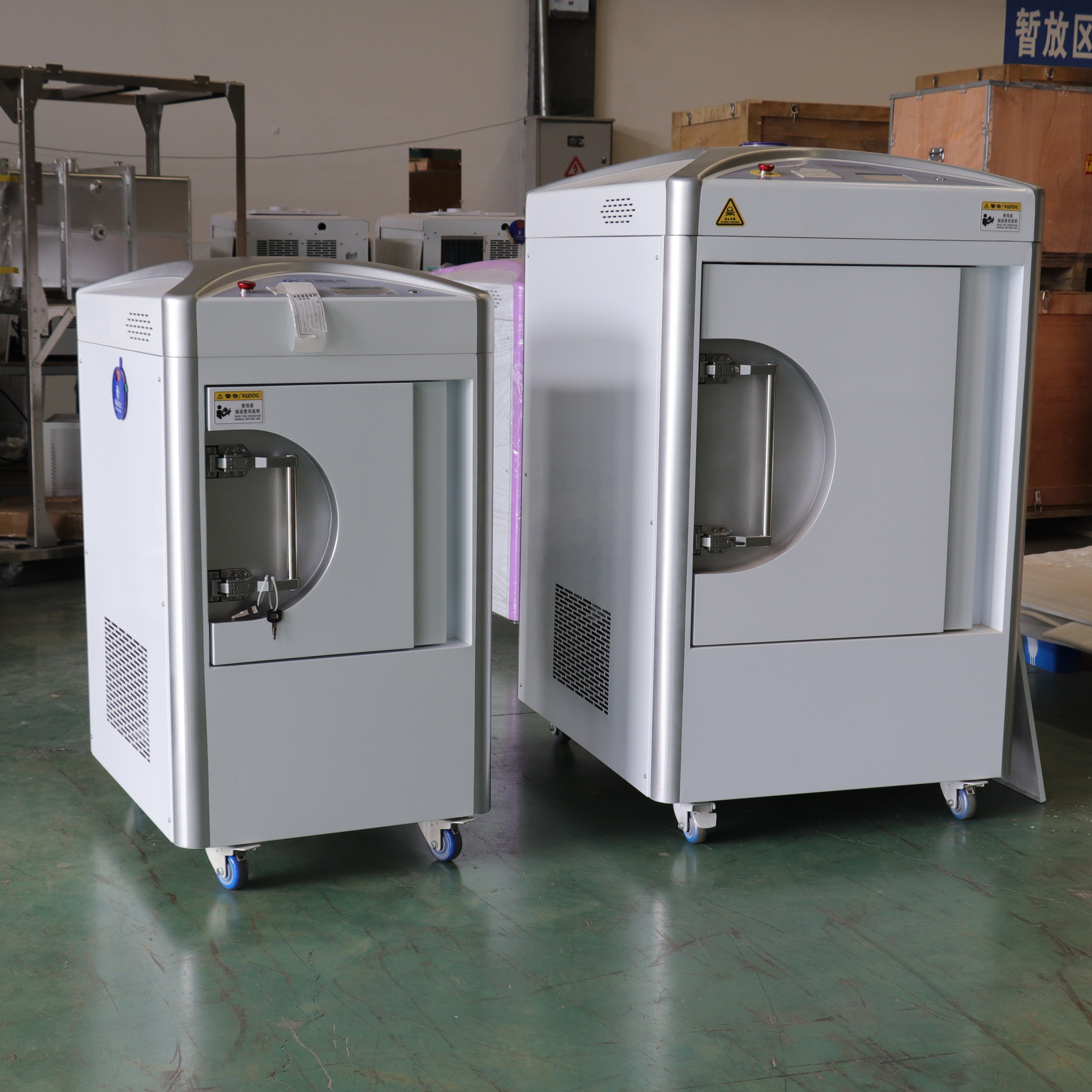

- Product name:Low-temperature ethylene oxide sterilizer
- Product code:C260327003
Packaging Specifications
- Outer Packaging Size:0.9 × 0.7 × 1.35 m
- Gross Weight:205 kg
- Net Weight:148 kg
- Volume:0.85
Description
Ethylene Oxide Sterilizer
Effective at low temperature sterilization
Material compatibility
Excellent penetration with no lumen restrictions
Non-corrosive
Relatively low capital equipment cost
Based on a gas diffusion process, EO is capable of sterilizing and rendering products free of micro-organisms. Sterility occurs when an EO gas molecule reacts with and destroys the bacteria DNA. All products must be placed in breathable packaging that allows gas to penetrate the sterile barrier and reach all surfaces of the device or product.
Efficiency
Utilisation of an intelligent systems and high performance components
Mini printer Print the sterilization information on thermal paper whole cycle.
EO gas EO gas cartridge, dosing inside machine, safe and convenient for operater
Low temperatures Sterilization at low temperature 55℃. Fit for wet heat sensitive material.
HMI
Visible 5' color LCD touch panel. Process clearly display on screen.
Data export The cycle reports can be automatically saved via the USB driver.
Low noise High performance vacuum Pump the working noise lower 40 db
Parametric release Allows for the release of products directly after processing which results in fast turn.
Technical parameters
| Model | H80 | H120 | H220 | H330 |
|---|---|---|---|---|
| Voltage | AC220V | AC220V | AC220V | AC220V |
| Power | 2.6KVA | 3KVA | 3.3KVA | 3.6KVA |
| Cell material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Chamber size | 585X275X422mm | 585X375X472mm | 705X505X552mm | 760X545X712mm |
| Volume | 67L | 103L | 196L | 294L |
| Machine size | 795X615X1140mm | 795X615X1140mm | 968X800X1240mm | 968X800X1340mm |
| Net weight | 148KG | 177KG | 243KG | 295KG |
| Working pressure | -60Kpa | -60Kpa | -60Kpa | -60Kpa |
| Cycle time | 5-8 hours | 5-8 hours | 5-8 hours | 5-8 hours |
| Working temperature | 30-60 ℃ | 30-60 ℃ | 30-60 ℃ | 30-60 ℃ |
| Humidity | RH 45-85% | RH 45-85% | RH 45-85% | RH 45-85% |
| Display screen | 5‘color LCD | 5‘color LCD | 5‘color LCD | 5‘color LCD |
| Data export | USB | USB | USB | USB |
| Mini printer | Yes | Yes | Yes | Yes |
| Gas cartridge | 48 g | 72 g | 170 g | 240 g |
| Shelves(trays) | 1 | 1 | 2 | 2 |
EO Sterilization Supplies
Medical Sterilization Indicator
EO indicator tape
EO sterilization pouch
1g Indicator Medical Sterilization
EO indicator strip
SC Medical Sterilization CEWD
Biological Indicator
EO biological indicator
EO label
Medical sterilization pouch
Chemistry indicator tape
Medical non-woven fabric
Sealing machine
Chemical indicator label
EO sterilization gas
EO STERILIZER SERIES
| Volume | Machine Size | Power kVA | |
|---|---|---|---|
| E3 | 2220x1000x1430 | 29KVA | |
| E10 | 10CBM | 35KVA | |
| E20 | 1150x1900x2550 |
| (L"W"H)mm | ||
|---|---|---|
| 126L | 3.0KVA | |
| 192L | 976×790×1715 |
| Volume Liters | Chamber Size (D"W"H)mm | ||
|---|---|---|---|
| 103L | 795×615×1140 | 3.0KVA | |
| 294L |
| 21 | |
|---|---|
| ID"W"Hmm | 0246×450 |
| 730×510×410 | |
| Weight |
Product overview
Ethylene oxide sterilizer has the characteristics of sophisticated design and sophisticated technology. It is mainly composed of a micro control system, residual gas processing devices, sterilization studio and other parts. The principle is to rely on ethylene oxide gas in certain humidity and pressure, the effect of sterilization is achieved. Ethylene oxide gas directly destroys microbial proteins, prevents their metabolism, and can kill stubborn bacilli.
Uses are mainly used for all kinds of endoscopes, cotton spinning, silica gel rubber catheter wires and various medical consumables. They will not corrode or damage the equipment.
APPLICABLE ARTICLES
Medical gloves
Medical mask
