Description

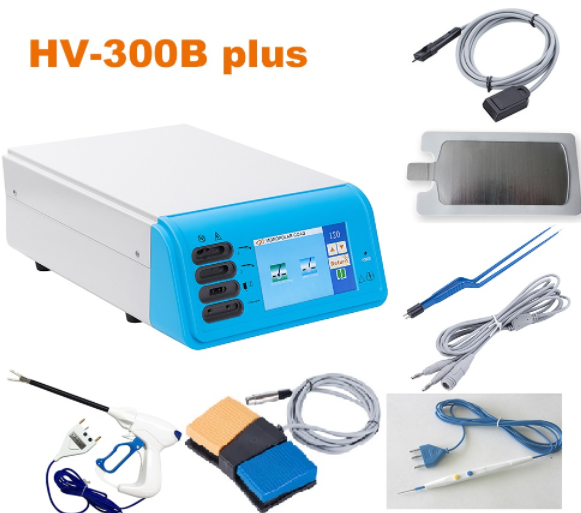

Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room, it features both monopolar and bipolar functions to satisfy all surgical demands with safety, flexibility, reliability and convenience.

Technical Features: Touch Screen

The electrosurgical system is controlled with a wide 7-inch TFT LCD touch screen with clean and sharp image quality, which provides the user with easy access to all diathermy functions. The settings or modes of operation are changed by touching icons on the screen. To ensure maximum ease of operation there are no extra buttons or knobs.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Automatic Self-Test

Once switched on, the system performs a comprehensive internal test.

Real-time Monitoring and Instance Response System for Tissue Density

This proprietary technology delivers optimal clinical effects through continuous synchronization of current and voltage. It samples the current and voltage 450,000 times per second, which enables it to respond to tissue impedance changes in less than 10 milliseconds, ensuring the machine achieves optimum energy output levels quicker and more accurately – ensuring that only the precise voltage needed is safely delivered to each tissue type.

Ligasure Vessel Sealing (Seal-Safe)

With the real-time and instance response system, it enables permanent sealing of blood vessels with a diameter up to 7mm under bipolar coagulation (Seal-safe modes).

Compatible with Other Equipments

• Argon Plasma Coagulation System
• Optimum Smoke Evacuation System

Multilanguage Available

Language options: English, Spanish, Portuguese, Turkish and etc.

Application of Use

General Surgery; Gastroenterology; Dermatology; Vascular Surgery; Obstetrics and Gynecology; Heart/Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI); Cerebral surgery; Neurosurgery; Orthopedics & Plastic Surgery; Trans Urethral Resection (TUR) and etc.

Automatic Start / Stop

Under Bipolar cut and coagulation modes, user can choose pedal control or automatic control.

Technical Specification

• Main Frequency: 512 KHz
• Power Supply: 100-240V / 50-60Hz

Weight and Dimension

• Weight: 6.00KG
• Dimension: 341747cm

High Frequency Leakage

• Monopolar: < 150mA
• Bipolar: < 60mA

Low Frequency Leakage

• Normal Polarity, Intact Chassis Ground: <10µA
• Normal Polarity, Ground open: < 50µA
• Reverse Polarity, Ground Open: < 50µA
• Sink Current, 140V Applied, All inputs: < 50µA

Working Mode Parameters
