Description

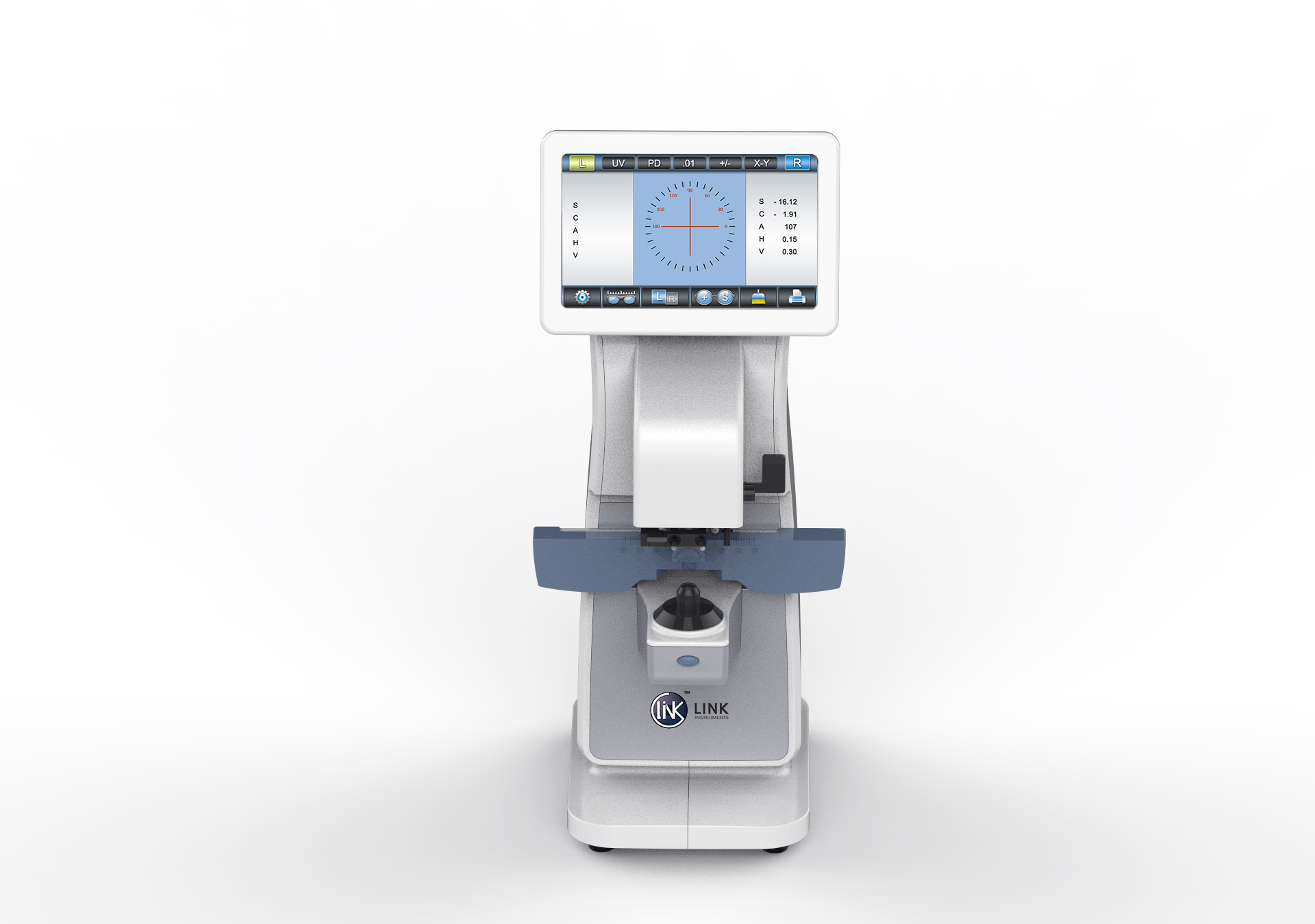

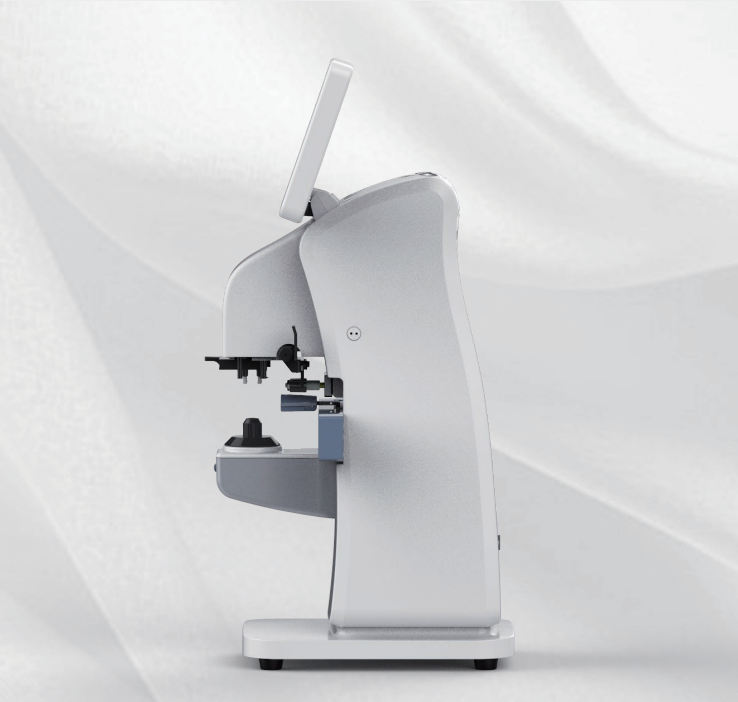

Auto Lensmeter

Better Detail For Better Quality

New Technology And Powerful Functions Simple operation interface provides with accurate operation experience.

Progressive Lens Measurement

Automatically identify the lens type (single lens or progressive): Single lens, fast positioning lens for long distance center and close center; Progressive lens, accurately measure ADD value.

Frame VD Measurement

Confirm the PD and mark the left and right lens centers at first; then align the frame with the digital PD scale in the display and move it gradually; Adjust the ruler up/down and coincides with the center of the left and right lenses. The data displayed is the frame VD value.

Fine Marking Device

Precise structure design and assembly, excellent operating feel with strong stability, the center marking position won't move for long-time use.

Newly Developed Marking Pins

Red and white ink dot specifications: 0.8mm / 1.0mm / 1.2mm / 1.5mm. The smooth markings are perfect and the points are clear and round.

UV/BLUE Measure

Measuring the UV transmittance of various lenses (coated lenses, sunglasses, crystals). It can measure from 0% to 100%, and 1% or 5% increments.

Hartmann Sensor with 145 Multiple Measurement Points

Hartmann 145 sense points, equipped with high speed and high efficiency CCD camera, fast and accurate measurement, don't need ABBE compensation.

Quick and Easy Data Transfer

1 USB port and 1 RS232 component, can be connected to the computer. Realize data transmission storage or share with other instruments, also can be used to charge your phone.

Features

◆ 7.0-inch high-definition touch color LCD display.

◆ Upgraded Hartmann intelligent measurement technology, faster, more accurate and stable.

◆ Streamlined, stylish, absolute and atmospheric design.

◆ Food grade ABS material shell, zero failure rate quality standard.

◆ Green LED source without ABBE coefficient compensation.

◆ Automatically identify and measure various lenses, high refractive index, polarized light, etc.

◆ Determine and measure progressive lenses quickly, automatically, and with high precision.

◆ Distance and height measurement: The display shows an electronic rangefinder for quick and easy measurements.

Specification

Sphere: 0~±25D, 0.01/0.06/0.12/0.25D steps

Cylinder: 0~±10D, 0.01/0.06/0.12/0.25D steps

Axis: 0-180° (1°step)

Addition: 0~±10D, 0.01/0.06/0.12/0.25D steps

Prism: 0~0.01cm/m steps

Cylinder: +, +/-,-

Prism: X-Y, P-B

Contact lens: Soft/hard lens

China Care Catalog C260113006 Lensmeter V2020604 En.pdf

PDF

当我给你输入一个PDF或者word 或者图片时，自动排版成我可以复制的产品详情页，英文，标题 Arial, 18Pt，加粗； 小标题Arial，16Pt,加粗； 正文：Arial,14Pt， 不要任意添加和修改内容，注意提炼所有页面内容，不省略。  不需要格式说明的再次申明，只留下提炼出来的内容，且不需要有分页符，直接重新输出

Auto Lensmeter

FDA

New Technology And Powerful Functions

Simple operation interface provides with accurate operation experience.

Features

◆ HD touch LCD display

◆ High-end process precision assembly

◆ Modern and simple appearance

◆ Fast and automatic recognition of progressive multifocal lenses

◆ Green LED light source does not need ABBE coefficient compensation

◆ Optimized and upgraded Hartmann multi-point measurement technology

Fine marking device

· Excellent material

· Precision design and assembly

· High strength and good stability

· Long-term use without offset

Selective pen

· Plus ink-type pen and ink-type pen tip. Two types of ink pen

· Not damage the lens surface

· Dotted effect is good. Dot solid and round

· Easy and convenient replacement

Hartmann multipoint measurement technology

· Hartman 150 sensing points

· High-speed CCD camera

· Fast, efficient and accurate measurement

· No Abbe parameter compensation required

UV transmittance

· It can measure the ultraviolet light transmittance of various lenses, and can measure transmittance values from 0% (UV400 lens) to 100% (white light lens), providing a reference basis for eyewear wearers to choose lenses.

Frame pupil height measurement

· Determine the pupillary distance of the frame, mark the center of the left and right lenses, and then align the frame with the electronic pupil distance ruler on the display. Move the ruler up and down to correspond to the center of the left and right lenses to measure the pupil height of the frame.

Data transmission external equipment

An external USB and an RS232 interface can be connected to a computer, Phoropter, refractometer and other equipment to save and share data.

Specification

Measuring range

Sphere: 0 to ±35D (reading accuracy 0.01D/0.06D/0.12D/0.25D)

Cylinder: 0 to ±10D (reading accuracy 0.01D/0.06D/0.12D/0.25D)

Cylindrical axis position: 0° to 180° (reading accuracy 1°)

ADD: 0 to 10D (reading accuracy 0.01D/0.06D/0.12D/0.25D)

Prism: 0 to 10△ (0.01△)

Accuracy

Sphere: ≥-5D to ≤+5D: ±0.06D; <-5D to ≥-10D / >+5D to ≤+10D: ±0.09D; <-10D to ≥-15D / >+10D to ≤+15D: ±0.12D; <-15D to ≥-20D / >+15D to ≤+20D: ±0.18D; <-20D to ≥-35D / >+20D to ≤+35D: ±0.25D

Prism: >0△ to ≤5△: 0.1△; >5△ to ≤15△: 0.2△

Cylinder mode: +, +/-, -

Prism representation mode: X-Y (Cartesian coordinates), P-B (Polar coordinates)

Reading resolution: 0.01D/0.06D/0.12D/0.25D

Interpupillary distance measurement function

Can measure lens with high refractive index, polarization, high dispersion, solar film, multi-focus, scratch, etc. single light, double light, triple light, progressive multifocal light, etc.

UV / blue light transmittance measurement function

Contact lens measurement function

Measurable lens: >10%; transmittance >20% when power exceeds 10D

Contact lenses: 0 to ±25D, BC 6.00 to 9.00

Display: 7.0-inch HD touch LCD monitor

Menu: user-friendly design, easy to operate

Applicable lens diameter: 20mm - 100mm

Power supply: AC100(±10%)-240(±10%)V 50/60Hz 40VA

Maximum power: 40W

Weight: 6.8kgs

Instrument specifications: 550mm (L) × 350mm (W) × 350mm (H)

Environmental conditions

Temperature: 5-40°C (use); -20-60°C (storage/transport)

Humidity: 30-85% (non-condensing, use); 10-95% (storage/transport)

Atmospheric pressure: 700-1060hpa

Altitude: up to 2000m

Other: no harmful dust and smoke

Optional accessories: printer (built-in thermal printer, paper width: 57mm)
