Product info

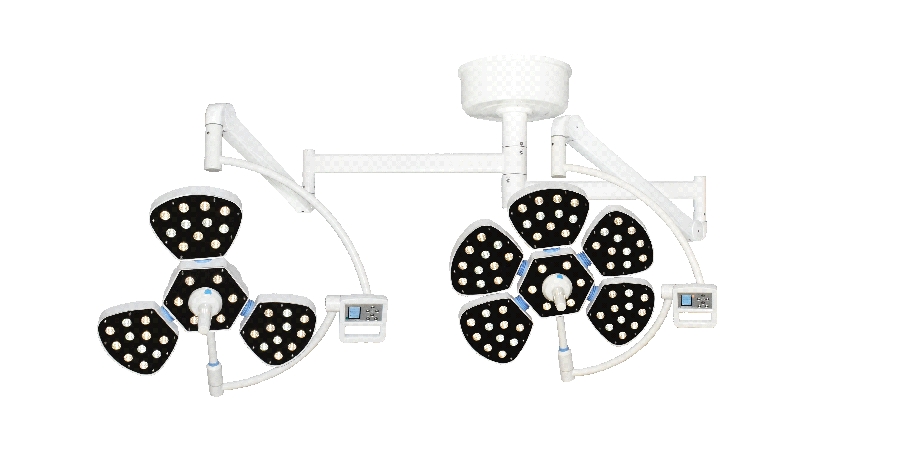

- Product name:700-500 Ceiling-mounted Double-head Ultra-thin Petal LED Surgical Shadowless Lamp
- Product code:CC-YD700-500B
Packaging Specifications
- Outer Packaging Size:0.97 × 0.88 × 0.39 m
- Gross Weight:26 kg
- Net Weight:11 kg
- Volume:0.33
- Outer Packaging Size:0.97 × 0.88 × 0.39 m
- Gross Weight:25 kg
- Net Weight:10 kg
- Volume:0.33
- Outer Packaging Size:1.13 × 0.34 × 0.58 m
- Gross Weight:67 kg
- Net Weight:55 kg
- Volume:0.22
Description
LED700/500 Petal Style Ceiling-Mounted Dual-Head Shadowless Operating Lamp
Technical Parameters
- Illumination: LED700 40,000–180,000 Lux; LED500 30,000–160,000 Lux
- LED Quantity: LED700 61 pcs; LED500 39 pcs
- LED Type: German OSRAM LED
- Average Service Life: ≥80,000 hours
- Color Temperature: 3700K–5000K
- Color Rendering Index (CRI): 85–98
- Illumination Depth: 50–180 cm
- Spot Diameter: LED700 160–280 mm; LED500 120–280 mm
- Dimming Range: 1%–100%
- Power: LED700 61W; LED500 39W
- Temperature Rise (Surgeon’s Head): <1℃
- Input Power: AC100–240V 50/60Hz
Product Features
- Adopts OSRAM LED cold light source, no infrared/ultraviolet radiation, low temperature rise, energy-saving and long service life.
- Petal‑style 3D multi‑point light source provides uniform illumination and excellent shadowless effect.
- Deep lighting over 1200 mm, adjustable color temperature close to natural sunlight for clear tissue color display.
- LCD control system with brightness adjustment and illumination memory function.
- Universal suspension system with imported modules, 360° rotation, precise positioning and fatigue correction.
- Ultra‑thin petal lamp head for good laminar flow; detachable handle autoclavable at 134℃.
Standard Configuration
- Five‑petal lamp with dimming system (1 set)
- Three‑petal lamp with dimming system (1 set)
- Rotating arm (2 sets)
- Balance arm (2 sets)
- Transformer assembly (2 sets)
- Handle sleeve (4 pcs)
- Hexagon allen key (1 set)
- Fixed plate (1 pc)
- Installation fasteners (1 set)
- Bracket & support cover (1 set)
- Fixed seat (1 pc)
- Product qualification certificate (1 pc)
- Instructions (1 pc)
