Product info

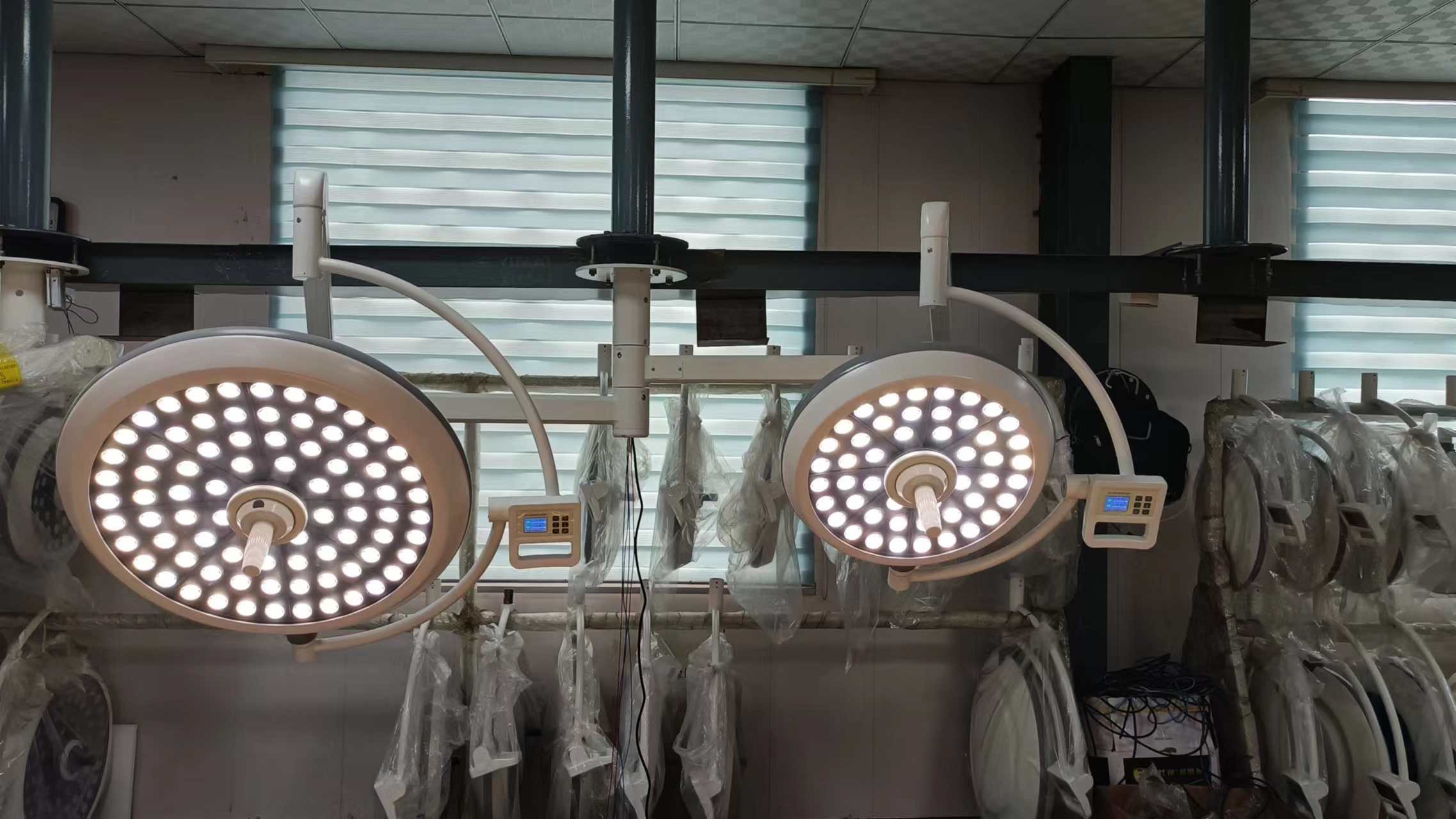

- Product name:700/500 Dual-Head OSRAM LED Surgical Shadowless Lamp (180,000Lux)
- Product code:CC-YD700-500A
Packaging Specifications
- Outer Packaging Size:0.92 × 0.92 × 0.4 m
- Gross Weight:30 kg
- Net Weight:14 kg
- Volume:0.34
- Outer Packaging Size:0.75 × 0.75 × 0.32 m
- Gross Weight:19 kg
- Net Weight:8 kg
- Volume:0.18
- Outer Packaging Size:1.13 × 0.34 × 0.58 m
- Gross Weight:67 kg
- Net Weight:55 kg
- Volume:0.22
Description
Shadowless Operating Lamp
Technical Parameters
- Illumination: LEDA 40,000–180,000 Lux; LEDB 30,000–160,000 Lux
- LED Quantity: LEDA 80 pcs; LEDB 48 pcs
- LED Type: German OSRAM LED
- Average Service Life: ≥80,000 hours
- Color Temperature: 3700K–5000K
- Color Rendering Index (CRI): 85–98
- Illumination Depth: 50–180 cm
- Spot Diameter: 120–280 mm
- Dimming Range: 1%–100%
- Power: LEDA 80W; LEDB 48W
- Temperature Rise (Surgeon’s Head): ＜1℃
- Input Power: AC100–240V, 50/60Hz
Product Features
- Ideal cold light effect with no infrared or ultraviolet radiation, low temperature rise, energy-saving and environmentally friendly.
- Excellent shadowless performance with multi-point light source; uniform illumination even when partially blocked.
- Outstanding deep lighting with illumination depth over 1200 mm and high central brightness.
- Advanced LCD control system with dimming, color temperature adjustment and digital memory function.
- Universal suspension system with 360° rotating joints, lightweight structure and accurate positioning.
- Modern circular ultra-thin laminar design; lamp head handle detachable and autoclavable at 134℃.
Standard Configuration
- A lamp head with dimming system (1 set)
- B lamp head with dimming system (1 set)
- Rotating arm (2 sets)
- Balance arm (2 sets)
- Transformer assembly (2 sets)
- Handle sleeve (4 pcs)
- Hexagon allen key (1 set)
- Fixed plate (1 pc)
- Installation fasteners (1 set)
- Bracket and support cover (1 set)
- Fixed seat (1 pc)
- Product qualification certificate (1 pc)
- Instructions (1 pc)
