Description

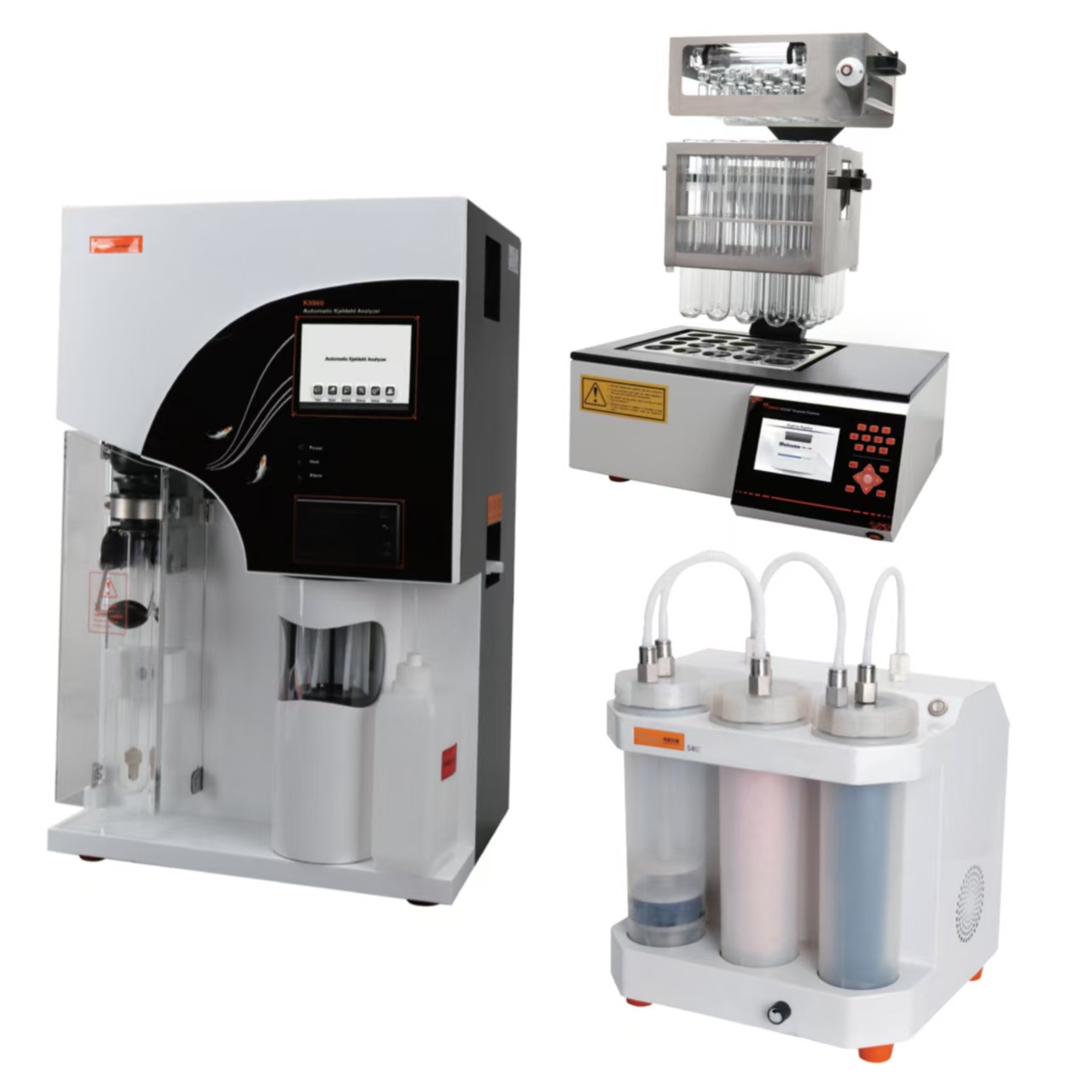

Kjeldahl Distillation Unit

The Automatic Kjeldahl Distillation Unit is designed to determine the nitrogen content of samples based on the Kjeldahl nitrogen determination method. Fully intelligent software is able to complete sample distillation within minutes, with automatic regent quantification and filling, and automatic test functions. The distillation and condensation automatic cleaning system further enhances measurement precision, and the explicit interface is easy for operation. It is widely used in food processing, feed production, tobacco, livestock, soil fertility, environmental monitoring, medicine, agriculture, scientific research, teaching, quality control and other fields for the test of nitrogen or protein content, and can also be used for the test of ammonium, volatile fatty acid/alkali, and so on.

Characteristics

• Display: 4.3 inch color screen.
• Manual/Automatic mode changeover free.
• Automatic Alkali pipeline washing function.
• Automatic or manual filling mode is optional according to test need.
• Distillation time can be edited freely, with automatic alarming upon completion.
• Automatic cleaning of control system and distiller, ensuring high measurement accuracy.
• Intelligent design of nitrogen tube peripheral facilities including safety designs and displacement hint.
• Intelligent cooling water control system achieves cooling water control and test.
• Emergency stop operation is able to deal with unexpected accidents.
• Automatic fault detection and intelligent audible and visual alarm system are available.
• Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, washing flow calibration.
• Safety door, digestion tube and cooling water condition is displayed at real time when running.
• Built in debug mode to check the status of each part.

Features

• Automatic accurate distribute alkali and boric acid solution.
• Perfect safety protection system gives distiller and tubes measurement and protection against over temperature and over pressure.
• Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, Washing flow calibration.
• Safety door, Digestion tube and cooling water condition is displayed at real time when running.

Technical data

• Measuring range: 0.1mg ~240mg N
• Recovery: ≥99.5%
• Sample capacity: solid ≤6g/sample, liquid ≤16mL/sample
• Distillation speed: 3-6min/sample
• Cooling water consumption: 1.5L/min
• Operating mode: Manual/automatic mode
• Display modes: 4.3" LCD screen
• Power supply: 220VAC±10%, 50/60Hz
• Power: 1300W
• Net weight: 30Kg
• Dimensions: 400mm385mm735mm

Kjeldahl Digestor

The Kjeldahl Digestor adopts advanced high-temperature infrared radiation heating technology and microprocessor control platform, with accurate temperature control and quick temperature rise. It has two kinds of temperature rise modes: linear and curve temperature rise mode, and offers multiple digestion programs for control of temperature rise curves.

The neutralization system has many functions such as triple filtration, condensate recovery of exhaust gas, filtration and neutralization device. The product adopts high-quality anticorrosive pumps, low noise, strong suction, reducing exhaust emissions and being eco-friendly.

Characteristic

• 20 positions enhance working efficiency rapidly.
• Graphite block have longer life after special anti-oxidation processing and heating more uniform.
• Corrosion-resistant design.
• Adopts advanced PID temperature control technology, high accuracy heating up to 400°C only 25 minutes.
• Multi-protection, Over-current protection, high temperature warning, overload protection.
• Adopts 5.7" color screen, easy for use.
• Standard configuration with waste gas collection hood.
• Temperature control model, program control, curve and linear temperature rise.
• Adopts advanced insulation technology, eco-friendly, reduce energy intensity maximum limitedly.
• LCD display.
• It’s used with microwave reaction system, pretreat for microwave digestion or removing acid after digestion.
• Linear and curve temperature rise mode, up to 5 stages temperature setting.
• Curve temperature rise and linear temperature rise two temperature control modes.
• It can edit and store multiple groups of digestion programs, each group can set up a segment temperature and time gradient to meet different experimental needs of users.

Exhausting System

• Module design, compact appearance.
• Absorption device area is translucence design, easy for inspection and changing.
• Suction pressure is adjustable when become negative, to avoid acid gas spilling or emptying.
• Anticorrosion vacuum pump, low noise, large suction, reduce wasted gas exhausting and environmental friendly.
• Ternary filtration system (water condensation, alkali neutralization and active carbon filtration) ensure perfect neutralization and absorption performance. PTFE anticorrosion pipe design, improve using life.

Technical data

• Temperature range: Room temperature +5 - 450℃
• Temperature accuracy: ±1℃
• Heating method: Infrared heating and high-purity graphite conduction
• Heating insulation method: Unique air duct insulation technology
• Digestion tube capacity: 300mL
• Capacity per batch: 20pcs/batch
• Power supply: 220 VAC±10% 50/60Hz
• Power: 3600W
• Dimensions: 515mm458mm730mm
• Net weight: 40Kg
