Ambulance (Iveco Chassis)

3. Vehicle Parameters and Standard Configuration

Technical Requirements

• Base chassis: Iveco Daily Diesel National VI
• Exterior color: White/Red

Announcement Parameters

• Maximum total mass: 3550kg
• Occupants: 7 persons (including stretcher personnel)
• Wheelbase: 2800 mm
• Overall dimensions (L×W×H): 4875mm × 2040mm × 2780mm
• Medical cabin dimensions (L×W×H): 2250mm × 1740mm × 1730mm
• Approach/departure angle: 21°/15°
• Maximum speed: 130km/h
• Engine model: NV25E6
• Engine displacement: 2.499L
• Emission standard: National VI
• Rated power: 110KW
• Fuel tank capacity: 70L
• Drive type: Front-engine rear-wheel drive
• Minimum ground clearance: 175mm
• Transmission: 5MT manual transmission
• Suspension: Front transverse leaf spring independent suspension / rear leaf spring non-independent suspension
• Power steering: Rack-and-pinion hydraulic power steering
• Braking system: Front disc/rear disc, hydraulic braking

Medical Warning Exterior

Body Structure

• Reinforced steel frame design for safety and reliability.
• Right side sliding door and rear double door structure for wide opening, facilitating personnel and stretcher access.

Vehicle Appearance

• All-white body with red cross logos on the front, sides and rear, and colorful body decals for visibility.
• 2/3 frosted glass on medical cabin windows to protect patient privacy.

Warning Lights

• Integrated "工"-shaped warning light at the front.
• Horn power: 100W.
• Blue and white strobe lights on both sides and rear for effective warning.

Medical Rescue Facilities

Rescue System

• Automatic stretcher: All-aluminum frame with soft mattress, load capacity 181kg, for smooth loading/unloading.
• 2 overhead IV bottle holders (2.5kg capacity) in the medical cabin.

Medical Oxygen Control System

• Oxygen cabinet with two 10L steel oxygen cylinders (15MPa rated pressure).
• Two single-stage pressure regulators, two German-style oxygen outlets, one ventilator interface, and one wall-mounted oxygen inhaler.
• Adjustable oxygen output with humidification bottle to provide moist oxygen for patients.

Medical Electrical System

Lighting

• 2 × 12V cabin lights with stable light source and wide coverage.

Inverter

• 500W pure sine wave inverter with stable frequency and voltage.
• 2 sets of 220V/12V multi-function sockets (compatible with 2/3-pin AC/DC plugs).

Disinfection Light

• 1 intelligent timed UV disinfection lamp for cabin hygiene.

Air Circulation System

Air Conditioning/Heating

• Rear air conditioner and heater with independent cooling/heating control for temperature regulation.

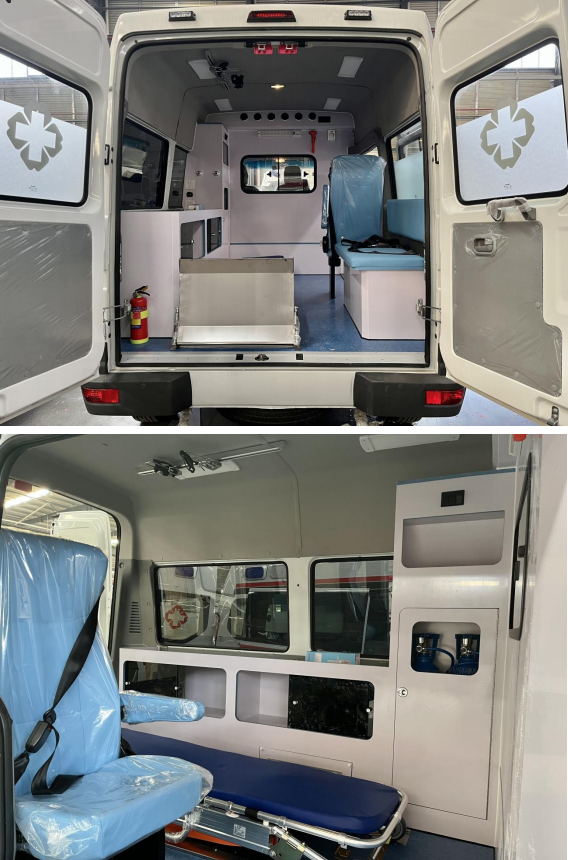

Medical Cabin Cabinet Interior Configuration

Partition Wall

• Lightweight, eco-friendly, recyclable partition between cab and medical cabin with observation window.

Medical Cabin Interior

• Original vehicle interior with single seat on the right and long bench covered in sky-blue faux leather.
• Safety hammer on board for emergency use.

Cabinets

• Left-side long equipment cabinet with storage compartments and countertop for medical devices.
• Oxygen cylinder cabinet in front of equipment cabinet, holding 2 × 10L oxygen cylinders.

Medical Floor

• Lightweight, eco-friendly, recyclable flooring with waterproof, anti-corrosion, wear-resistant and antibacterial properties.

Auxiliary Equipment

Handrail

• 1 long handrail mounted on the cabin ceiling.

Fire Extinguisher

• 1 × 1KG fire extinguisher at the rear left of the cabin.

Long Bench

• Long bench on the right side with blue faux leather upholstery and two-point seat belt.

Configuration List

I. Rescue System

1. Stretcher & Accessories Automatic loading stretcher: 1 unit, load capacity 181KG IV bottle holder: 2 units, load capacity 2.5KG
2. Oxygen System Oxygen cylinder: 2 units, 10L, 15MPa Oxygen inhaler: 1 unit, two-stage lockable interface with humidification bottle Ventilator interface: 1 unit, quick connect type Pressure regulator: 2 units, single-stage

II. Exterior & Warning System

1. Warning Lights Front "工"-shaped LED warning light: 1 set, 100W horn LED strobe lights: 6 units, DC12V
2. Decals & Markings Ambulance logo: 5 pieces, reflective film Body decals: 1 set, reflective film Frosted window film: 1 set (2/3 coverage)

III. Electrical System

1. Power Supply Inverter: 1 set, 500W Multi-function sockets: 2 sets, AC/DC compatible
2. Interior Lighting LED cabin lights: 2 units, DC12V
3. Air Conditioning & Heating Rear air conditioner: 1 set Rear heater: 1 set
4. Disinfection System UV disinfection lamp: 1 unit, HTD-8W with timer

IV. Cabin & Interior System

1. Cabinets Partition wall: 1 set, lightweight eco-friendly material with observation window Left equipment cabinet: 1 set, lightweight eco-friendly material
2. Interior Trim Ceiling: 1 set, original trim with anti-corrosion, wear-resistant and antibacterial properties Medical floor: 1 set, integral plastic with anti-slip, waterproof, anti-corrosion, wear-resistant and antibacterial properties

V. Other Accessories

• Single seat: 1 set, sky-blue faux leather
• Long bench: 1 set, with two-point seat belt
• Fire extinguisher: 2 units, 1kg dry powder type
• Handrail: 1 unit, yellow ceiling-mounted
