Product info

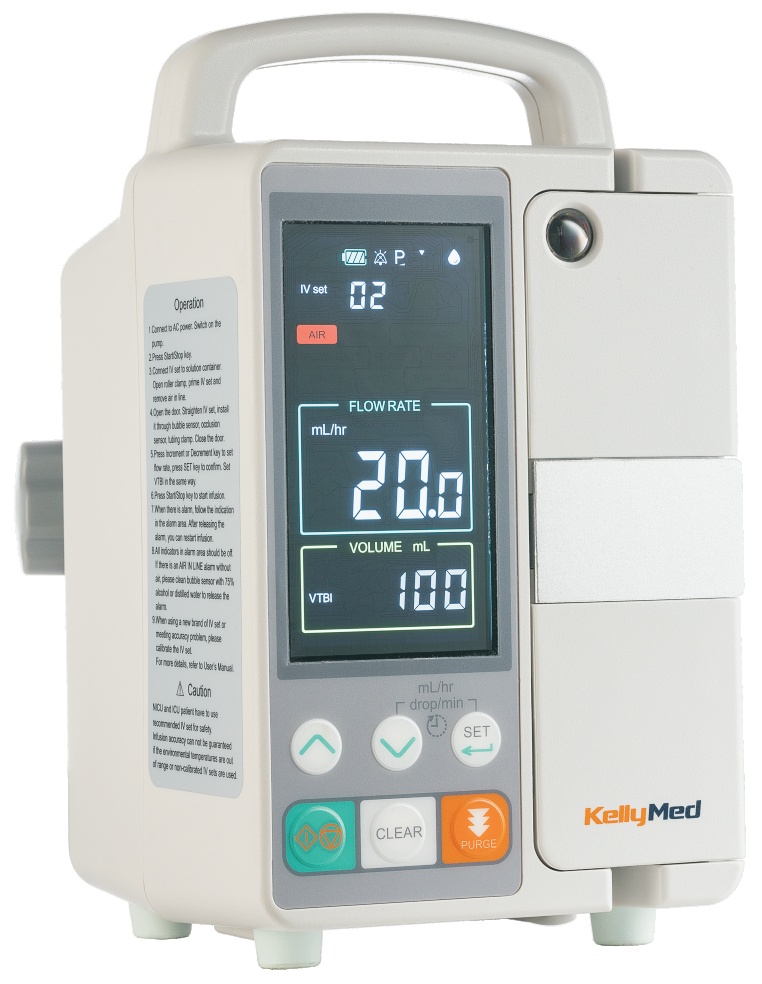

- Product name:Infusion Pump
- Product code:CCS-8052N
Packaging Specifications
- Outer Packaging Size:2.15 × 1.81 × 2.7 m
- Gross Weight:2.5 kg
- Net Weight:3 kg
- Volume:10.51
Description
Infusion Pump Specifications
| Parameter | Specification |
|---|---|
| Model | |
| Pumping Mechanism | Curvilinear peristaltic |
| IV Set | Compatible with IV sets of any standard |
| Flow Rate | 0.1–1500 ml/h (in 0.1 ml/h increments) |
| Purge, Bolus | 100–1500 ml/h (in 1 ml/h increments); Purge when pump stops, bolus when pump starts |
| Bolus volume | 1–20 ml (in 1 ml increments) |
| Accuracy | ±3% |
| VTBI | 1–9999 ml |
| Infusion Mode | ml/h, drop/min, time-based |
| KVO Rate | 0.1–5 ml/h (in 0.1 ml/h increments) |
| Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
