Description

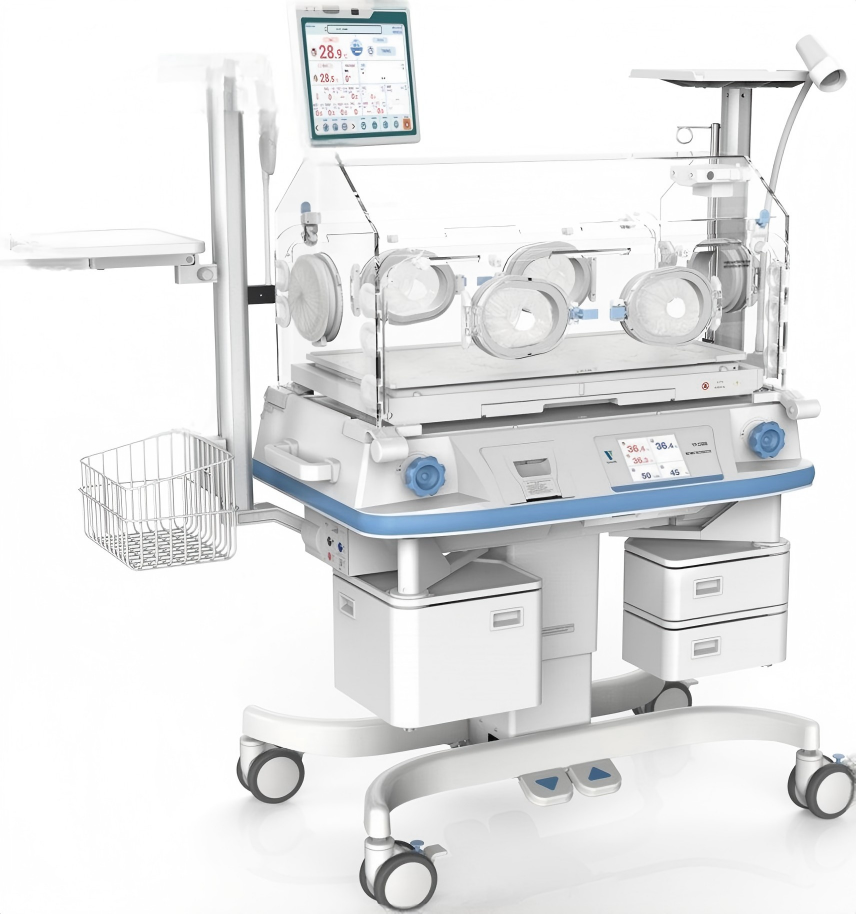

CCI-YP2000B Baby Care Incubator Unit

Manufacturer: China Care Medical Equipment Co.,Ltd

Address: Room B101, Zhongbang Business Building, Puxing Road No. 87, Tianhe District, Guangzhou, China

Website: www.chinacaremedical.com

Core Features

Incubator Main Module

1. Equipped with an integrated intelligent control system and Android touch display. Adopts optimized central PID algorithm to realize ultra-stable temperature fluctuation; specially designed cabin door structure effectively reduces heat loss during opening.
2. High-precision humidity sensor collects real-time humidity data, enabling rapid humidification up to 95% RH.
3. One-touch calibratable servo oxygen supply (21% / 100% optional), oxygen concentration quickly reaches preset target value.
4. Antibacterial water tank capable of killing common pathogenic bacteria. Front pull-out drawer-type water tank is fully detachable for thorough cleaning and disinfection without dead corners, creating a sterile growth environment for newborns.
5. Triple independent overheat protection systems with multi-point sensor monitoring, triggering simultaneous visual and audible alarms once abnormal conditions occur. Built-in high-efficiency filter removes over 99% of airborne dust to maintain an antibacterial environment; filter unit is easy to disassemble and replace.
6. Low-noise brushless DC fan, operating noise lower than 45 dB. Equipped with soft, breathable TPU waterproof pressure-relief mattress. Retractable X-ray tray under the crib avoids frequent newborn transfer and cross infection risks. Electric crib supports stepless multi-angle tilting via side physical buttons, touch screen or stand control, with one-key horizontal reset function. Panel buffer mechanism ensures silent closing of the transparent hatch.
7. Dual-screen human-machine interaction: 12.1-inch external 360° rotatable TFT color touch screen with multi-language switching and dedicated night display mode; built-in 5.6-inch LCD real-time displays cabin air temperature, infant skin temperature, humidity and oxygen concentration.
8. Secure flat skin temperature probe with anti-fall design. Swallowtail side upright posts allow convenient mounting of small auxiliary medical devices. Integrally injection-molded acrylic hood: colorless, environmentally friendly, high light transmittance and strong toughness for long service life. Double anti-misopening lock for front cabin door. Foldable storage tray and external auxiliary observation lamp are standard configurations.
9. Built-in high-precision weighing system supports real-time infant weight measurement and growth trend data storage. Large rotary storage drawer plus external hanging basket for storing cables and consumables. The whole incubator features adjustable overall height. Kangaroo care mode stabilizes internal cabin temperature to facilitate parent-infant skin-to-skin contact. Onboard camera supports real-time live viewing, photo capture and video recording.

Optional Newborn Special Monitoring Module

1. Masimo CO₂ monitoring: supports mainstream and sidestream dual sampling modes for continuous, accurate carbon dioxide concentration tracking.
2. Apnea alarm monitoring: uninterrupted real-time monitoring with instant alert function, providing full safety guarantee for newborns at risk of apnea and enabling timely clinical intervention.
3. Masimo SpO₂ pulse oximetry: improves screening sensitivity for critical congenital heart diseases up to 93%; reduces the incidence of severe retinopathy of prematurity; effectively eliminates motion artifacts and delivers stable measurement under low perfusion and body movement.
4. Hemoglobin monitoring: PVI perfusion index reflects infant perfusion status; non-invasive continuous SpMet hemoglobin testing calculates total blood oxygen content (SpOC).
5. ECG monitoring: displays 3-lead / 5-lead complete ECG waveforms and real-time heart rate.
6. SunTech non-invasive NIBP blood pressure monitoring: dual hardware and software safety protection mechanism.
7. Respiration (RES) monitoring: continuously tracks respiratory rate via thoracic impedance detection principle.

Configuration List

表格

Technical Specifications

• Power Supply: AC 100–120 V 50/60 Hz or AC 220–230 V 50/60 Hz, 130 A
• Fault Alarm Items: power failure, fan malfunction, sensor deviation, over-temperature, incorrect sensor box installation, misplaced water tank, water shortage, system failure, plus alarms for SpO₂/ECG/respiration/NIBP/CO₂ modules
• Overall Dimension: L1500mm × W675mm × H1650–1800mm
• Net Weight: 117 kg

References

¹ Castillo et al. Prevention of retinopathy of prematurity in preterm infants through clinical practice and SpO₂ technology optimization. Acta Paediatr. 2011 Feb;100(2):188-92

² Shah N., Ragaswamy H. B. Performance of three new-generation pulse oximeters under motion and low perfusion in human volunteers
