Product info
- Product name:Holter ECG Record
- Product code:CCEI
Packaging Specifications
- Outer Packaging Size:0.3 × 0.3 × 0.2 m
- Gross Weight:1 kg
- Net Weight:0 kg
- Volume:0.02
Description

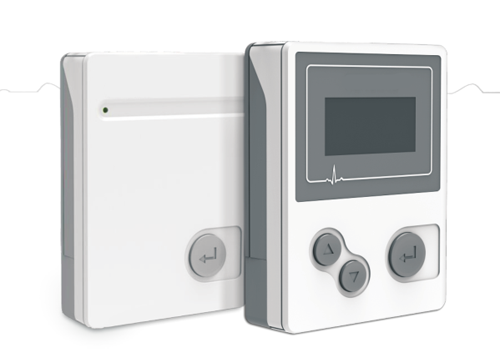

CCEI Series Holter ECG System (CCEI3/CCEI12/CCEI3Plus/CCEI12Plus)
Core Overview
CCEI series Holter ECG system is a high-precision telemedicine ECG monitoring device launched by China Care Medical Equipment Co., Ltd., including four models (CCEI3/CCEI12/CCEI3Plus/CCEI12Plus) with 3/12-channel optional configurations. Featuring ultra-compact, portable design and high-precision data collection, it supports long-term ECG recording, real-time pacemaker pulse detection and professional ECG data analysis, and is certified by CE and ISO 13485. Matched with a dedicated software system with rich basic and advanced analysis functions, it is an important tool for clinical dynamic ECG monitoring, arrhythmia diagnosis and telemedicine services, and can be used in hospitals, clinics and remote medical monitoring scenarios.
Core Product Highlights
- Compact & Ultra-portable: Weighs only 50±5g (without battery) with dimensions of 70×55×16±2mm, easy for patients to wear for long-term monitoring without affecting daily activities.
- High-precision & High-speed Collection: 16-bit A/D resolution, sampling rate up to 1024 samples/channel/second; algorithm tested by MIT and AHA database with an accuracy of 99.9%, ensuring reliable ECG data.
- Long-term Continuous Recording: Up to 96 hours of 12-channel ECG recording or 7 days of 3-channel recording, meeting the clinical need for long-term dynamic ECG monitoring.
- Professional Functional Support: Real-time detection and display of pacemaker pulse (pulse width 0.1~2ms, amplitude 2~200mV); supports event mark function, convenient for patients to mark abnormal symptoms during monitoring.
- Dual Configuration Options: 3/12-channel ECG recording optional, adapting to different clinical monitoring needs (routine screening/ in-depth diagnosis); Plus models are equipped with 1.3-inch OLED screen for visual operation and data viewing.
Core Technical Specifications
| Category | Parameter Details |
|---|---|
| Model Configuration | CCEI3/CCEI3Plus (3-channel); CCEI12/CCEI12Plus (12-channel) |
| Physical Parameters | Weight: 50±5g (no battery); Dimension: 70×55×16±2mm |
| Display | 1.3-inch OLED screen, 128×64 dot matrix (only Plus models) |
| Storage & Power | 8G micro SD card; Powered by 1×AAA alkaline battery |
| Recording Time | 1~7 days (3-channel up to 7 days, 12-channel up to 96 hours) |
| Data Transfer | Hi-Speed USB2.0, SD card-reader |
| Collection Performance | A/D Resolution:16bits; Sample rate:1024 samples/channel/second |
| Electrical Performance | Input dynamic range:5mV; Input impedance:≥10MΩ; CMRR:≥80dB; Offset voltage range:300mV; Frequency response:0.05~60Hz |
| Special Functions | Pacemaker pulse detection (yes); Event mark (yes); Pulse width:0.1~2ms; Pulse amplitude:2~200mV |
| Certification | CE Marked, ISO 13485 |
Dedicated Software Functions (Basic + Advanced)
Basic Functions (Full Model Support)
Covers all routine clinical ECG analysis needs, with comprehensive and practical functions:
E-Registration, Page Scan analysis, Pacemaker detection, ST segment analysis, Atrial fibrillation and flutter analysis, Template edit and analysis, Trend analysis, QT dispersion, Event analysis, Heart rate variability analysis, Event mark record, Different scatter plot analysis.
Advanced Functions (Professional In-depth Analysis)
Supports complex cardiovascular disease diagnosis and special physiological index analysis:
Heart-rate turbulence (HRT) analysis, T wave alternation (TWA) analysis, Obstructive sleep apnea(OSA) analysis, Late Potentials(SAECG) analysis, Vectorcardiogram (VCG) analysis, FCG analysis.
Core Product Advantages
- High Precision & Reliability: High sampling rate, high-resolution A/D conversion and algorithm certified by international databases ensure the accuracy of ECG data collection and analysis, providing a reliable basis for clinical diagnosis.
- Ultra-portable & Patient-friendly: Ultra-light and small size, simple wearing method, long battery life, and no impact on patients' daily life, improving the compliance of long-term dynamic monitoring.
- Rich Configuration & Strong Adaptability: 3/12-channel and standard/Plus models are optional, meeting the diverse needs of clinical routine screening, in-depth diagnosis and telemedicine monitoring; compatible with multiple data transfer methods for convenient data export and analysis.
- Powerful Software & Professional Analysis: The matching software integrates a full set of basic and advanced analysis functions, covering arrhythmia, myocardial ischemia, pacemaker function and other multiple clinical analysis directions, realizing one-stop ECG data processing and diagnosis.
- Compliant & Standardized: Certified by CE and ISO 13485, in line with international medical device standards, ensuring the safety and standardization of clinical use.
Applicable Scenarios & Brand Information
Core Clinical Applications
- Dynamic ECG monitoring for diagnosis of arrhythmia, myocardial ischemia and other cardiovascular diseases;
- Post-operative follow-up monitoring of pacemaker implantation patients;
- Remote ECG monitoring and telemedicine diagnosis services;
- Routine cardiovascular disease screening in physical examination centers and community hospitals.
