Description

Core Overview

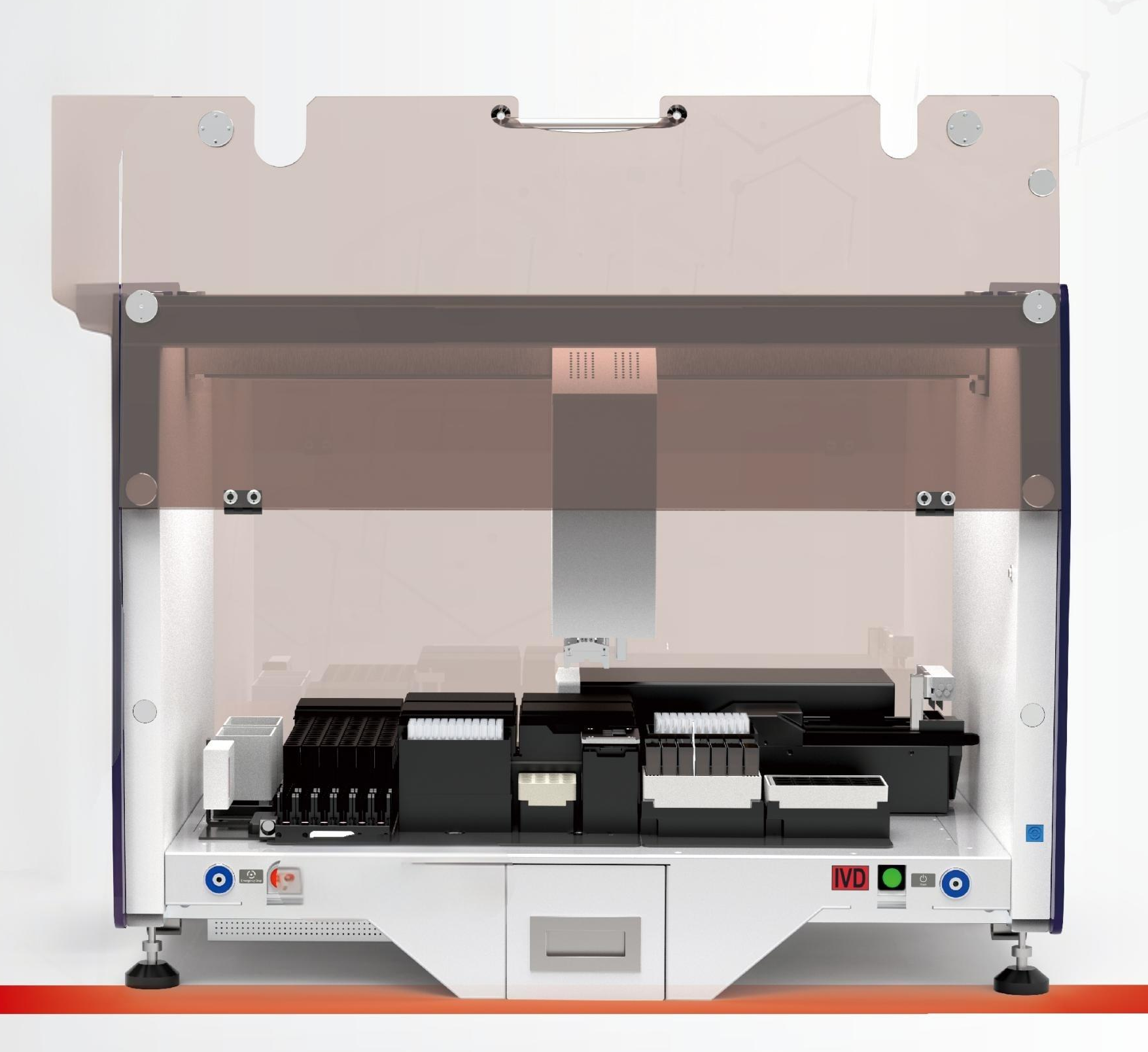

It is a high-efficiency, high-precision dedicated automated ELISA system that fully automates microplate-based ELISA test workflows including sample distribution, reagent pipetting, shaking, incubation, plate washing and microplate reading. Adopting a modular automation design with intelligent software control and flexible mechanical grippers for microplate transfer between modules, it features precise liquid handling, stable temperature control, efficient plate washing and reliable result reading. Equipped with humanized operation interfaces and multiple innovative functions, it supports LIMS/LIS/HIS system integration and customized testing, and is suitable for clinical laboratories, medical institutions and research centers to perform high-throughput, accurate ELISA detection.

Core Technical Specifications

表格

Core Modular Advantages

1. Liquid Handling Module: Fast, Precise & Contamination-free

• Automates sample distribution, predilution and reagent pipetting with 5-1000μL wide volume range, meeting diverse ELISA test needs.
• High-quality disposable tips ensure zero carryover; pressure-sensing technology enables sensitive clot and liquid level detection, avoiding pipetting errors.
• Parallel pipetting realizes high-throughput sample/reagent distribution, significantly improving test efficiency.

2. Incubation Module: Accurate & Efficient Temperature Control

• Integrated pipetting/shaking/incubation on microplate positions shortens workflow and boosts processing speed.
• 4 independent incubators with blanket-type heating (1min temperature rise) and multi-point monitoring ensure stable, uniform temperature (precision ±0.4°C).
• Adjustable shaking parameters (time/frequency) match different ELISA reaction requirements for optimal incubation effects.

3. Plate Washing Module: Flexible & Thorough Washing

• 32 differentiated probes (aspiration/injection) and adjustable wash modes (cycles/buffers/soak time) realize customized, thorough plate washing.
• Residual wash buffer ≤1μL per well ensures low background interference and accurate test results; hanging washer head allows easy disassembly and maintenance.

4. Microplate Reader Module: Reliable & Versatile Result Interpretation

• Self-developed reader with 340-750nm full wavelength coverage and single/dual wavelength measurement supports multiple detection methods (qualitative/quantitative/rate/kinetics).
• High precision (sensitivity 0.001OD, repeatability ±0.005OD) and customizable filters ensure reliable, flexible result reading for different ELISA assays (e.g., HIV).

5. Software Control Module: Humanized & Intelligent Management

• Intuitive graphical GUI with step-by-step operation guidance reduces learning costs and operational errors.
• Supports customized test items (different items for each sample in one batch) and comprehensive QC programs, meeting personalized testing and quality control needs.
• Bidirectional data communication with LIMS/LIS/HIS systems realizes seamless integration of test task lists and result data, facilitating laboratory digital management.

Innovative Product Features

1. On-demand Microplate Insertion: Experimental microplates can be inserted at any time/any step of the test, with automatic association of results and sample loading information, improving workflow flexibility.
2. Microplate-pooling Function: Multiple test items with the same procedure can be assigned to the same microplate simultaneously, maximizing microplate utilization and test efficiency.
3. Intelligent Gripper Alarm: Torque sensing monitors gripper working status in real time; automatic sound/light/dialog box alarm triggers when the microplate/lid is not properly gripped, avoiding equipment and test errors.
4. Automatic Reagent Identification: Hall detection principle realizes automatic identification of specific reagent positions, with flexible setting of multiple reagent positions, simplifying reagent setup and reducing manual errors.
5. High-speed Barcode Scanning: Fast auto-scanning for tubes and microplates shortens sample/reagent information input time and improves traceability of test samples.

Core Application & Advantages

Applicable Scenarios

Fully automated ELISA testing for clinical laboratories, medical institutions and research centers, covering infectious disease detection (e.g., HIV), autoimmune disease testing, hormone detection and other ELISA-based assay fields.

Overall Product Advantages

1. Full Automation: Integrates the entire ELISA workflow from sample loading to result reading, reducing manual intervention and human errors.
2. High Precision & Efficiency: High-precision liquid handling, stable incubation and thorough plate washing ensure accurate results; high-throughput pipetting/reading and modular design realize efficient testing.
3. Flexibility & Customization: Supports on-demand microplate insertion, customized test items and adjustable test parameters, adapting to diverse ELISA test requirements.
4. Intelligent & Traceable: Equipped with multiple intelligent alarm and detection functions; supports barcode identification and LIMS/LIS/HIS integration, realizing full-process traceability of test data.
5. Easy Operation & Maintenance: Humanized GUI, step-by-step guidance and easy-to-maintain components (hanging washer head, disposable tips) reduce operational and maintenance costs.
