Description

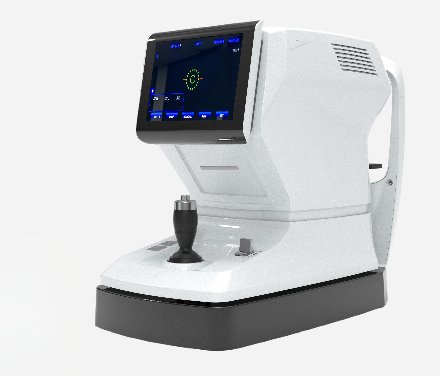

Auto Refractometer

Product Overview

This auto refractometer is equipped with automatic lifting function for the chin rest base and main body to simplify operation, and it supports multiple optional measurement modes.

Core Features

• Available with multiple measurement modes: SPH, KER, KER&SPH, IOL
• Automatic lifting design for chin rest base and equipment main unit
• High-precision optical head and fogging system

Technical Parameters

Optometry Parameters

Vertex distance options: 0.0 mm, 12.00 mm, 13.5 mm, 15.00 mm

Spherical power: -20.00D ~ +20.00D (VD=12mm, increment:0.12D / 0.25D)

Cylindrical power: 0.00D ~ +10.00D (step:0.12D / 0.25D)

Cylinder axis range: 1° ~ 180°, 1° per adjustment step

Cylinder symbol options: -, +, MIX

Corneal curvature radius:6.5 mm ~ 9.4 mm, step 0.02mm

PD measuring range:50mm ~ 80mm

Minimum detectable pupil diameter:2.0mm

Configuration & Power Specs

• Built-in thermal printer
• Display: Color LCD screen
• Input power: AC100-240V, 50Hz/60Hz
• Rated power consumption:100VA
• Fuse specification: F2AL250V
