Description

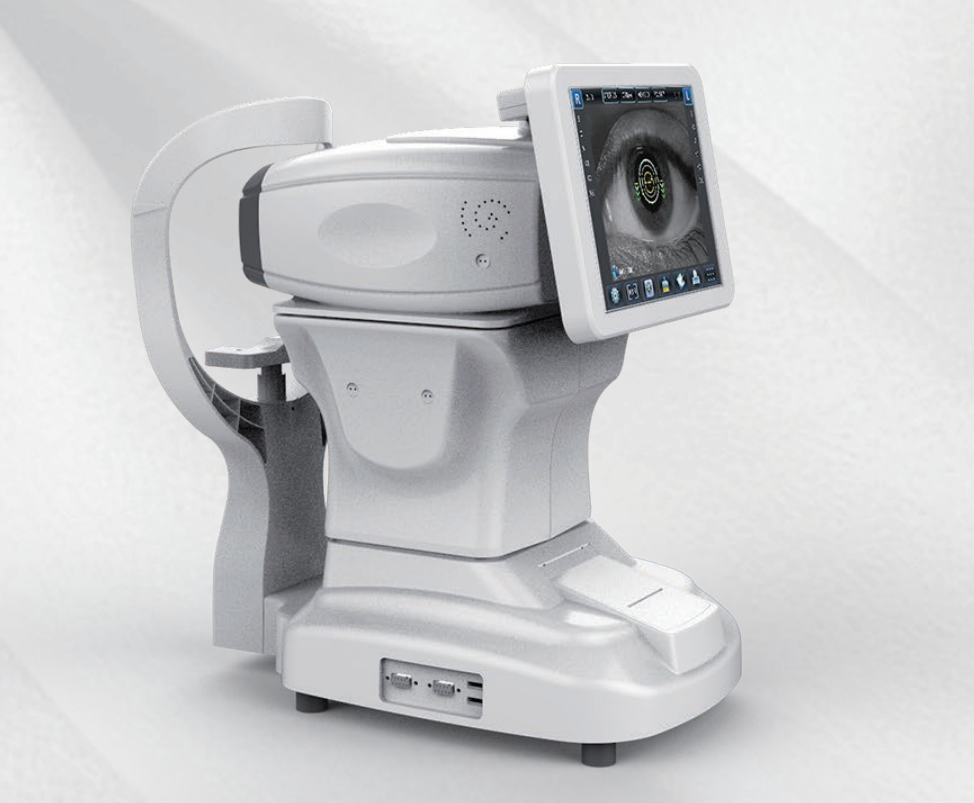

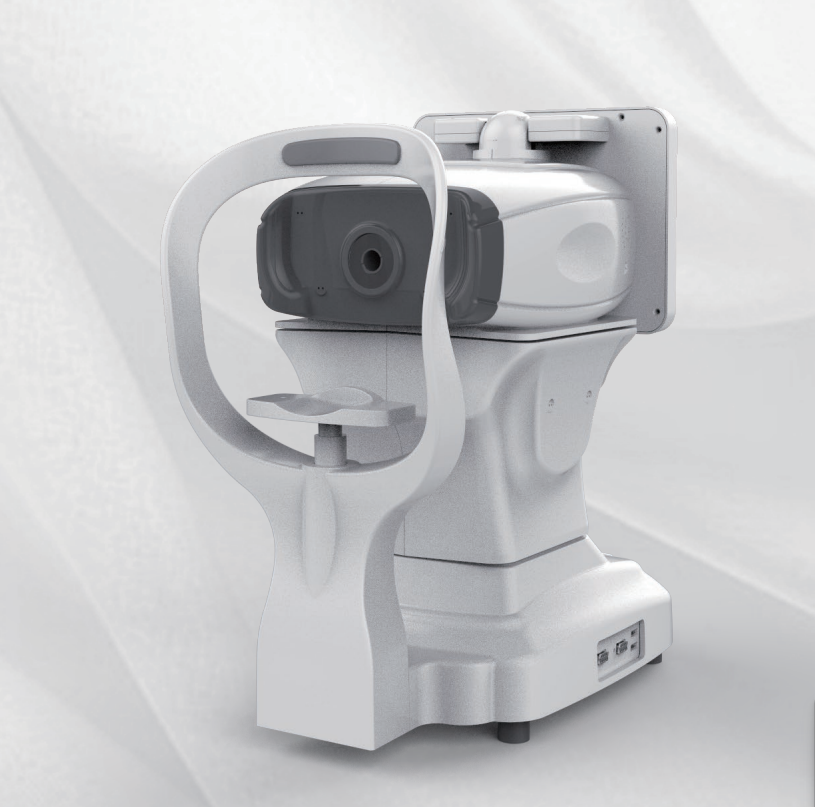

Automatic Refractometer

Better Detail For Better Quality

Features

◆ New light path design

◆ Perfect imaging effect

◆ Smooth image analysis

◆ Proven processing technology

◆ Accurate measurement results

◆ Electric lifting forehead

◆ Automatic paper cutting thermal printer

◆ Powerful and easy to operate

◆ Leading technology in the world

Operation interface

· Automatic tracking, automatic measurement

· Automatic measurement

Electric forehead rest

· The up and down switches on the operation panel can adjust the height of the surveyor's pause quickly and reasonably.

Automatic paper cutting

· Built-in thermal printer

· Easy to change paper

· Automatically cut paper after printing

3D smart measurement

X direction

Y direction

focal length

Specification

Main technical data

Hartman imaging analysis and process technology, accurate measurement result

New optical design, clear human eye image effect

High speed image acquision system, advanced image deal and analysis

Auto Focus and auto measurement

The Screen can be Free rotation up, down, left and right

Automatic up and down function for the chin rest

High speed printer, can cut printing paper automatically

Vertex distance 0.0,12.0,13.75,15.0

Sphere: -20.00~+20.00D (0.01/0.06/0.12/0.25D step)(VD=12mm)

Axis: 1°~180°(1° step)

Cylinder form: -, +, ±

Pupil distance: 10-86mm

Min. pupil diameter measurable: φ2.0mm

Measuring light Energy: <30uw(Insure measuring safety)

Radius of curvature: 5.0-10.0mm(0.01mm unit)

Corneal Power: 33.00D-67.00D (In case that the corneal equivalent refractive power is 1.3375)

Corneal Astigmatism: 0.00-15.00D(0.06D/0.12D/0.25D Unit)

Data Storing: Each 10 measured values of left eyes and right eyes

Axis: 1-180 degree chart auto chart

Monitor: SHARP10.4" TFT LCD touch screen(Angle of view adjustable)

Built-in printer: 57mm thermal printer, auto paper-cutting

Electrical: AC 100-250V,50/60HZ

N.W: 22kgs

G.W: 26.5kgs

Packing size: (length) 600mm x (width) 400mm x (height) 600mm
