Description

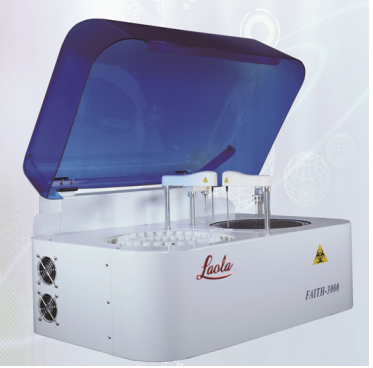

Fully Automatic Biochemistry Analyzer

General Performance

Analysis Speed:

Test Principle: Colorimetry, Turbidimetry

Analysis Method: Linear and Non-linear Calibration

49 Sample Positions, Random Access to All Samples

Sample Probe: Liquid Level Detection, Residue Detection, Collision Protection, etc.

Sample Containers:

Reagent Tray: 56 Reagent Positions

Reagent Volume: R1: 25-300 μL, R2: 10-150 μL, 0.1 μL Increment

Reagent Probe: Liquid Level Detection, Residue Detection, Collision Protection, etc.

Reagent Refrigeration: 4-15 °C, Independent Power Supply, 24-Hour Continuous Refrigeration

Reaction System

Reaction Tray:

High-Quality Reusable Cuvette, Optical Diameter 6 mm

Reaction Volume: 180-500 μL

Incubation System: Bidirectional Liquid-Air Device

Temperature:

Optical System

Light Source: 12 V 35 W Halogen Lamps, Service Life Over 2000 Hours

Post-Spectrophotometry

Wavelength: 340, 405, 450, 510, 546, 578, 630, 700 nm

Absorbance Range: 0-3.500 Abs

Resolution: 0.0001 Abs

Operating System

PC Operating System

Analysis Control Software:

English Version Graphic Operating Software

System Connection

Power Supply: AC 220 V±22 V, 50 Hz±1 Hz, Power 1.5 KVA

Ambient Temperature: 15-30 °C

Humidity: 35-80 %

Water Consumption: 7 L/Hour

Dimensions (Bench-top): 750 mm520 mm600 mm

Weight: 50 KG
