Description

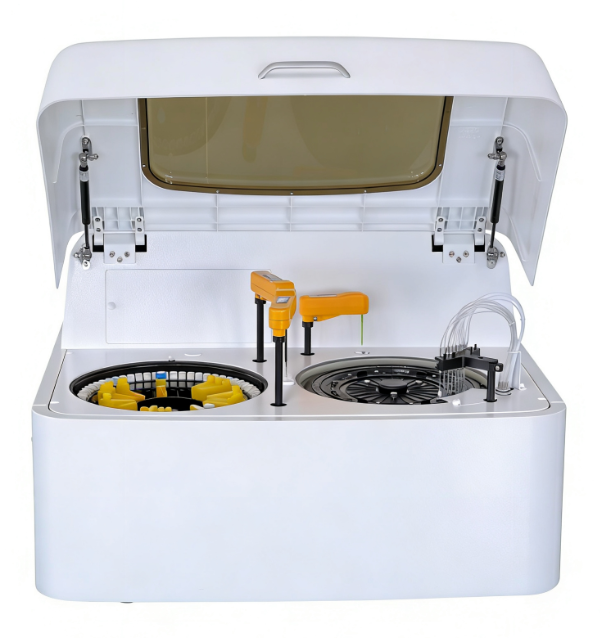

Fully Automatic Biochemistry Analyzer

Technical Specifications

• Throughput: 390 tests/hour (without ISE)
• Assay Type: Random access with direct reading system
• Methodology: Endpoint, Kinetic, Fixed time, Immunoturbidimetry, Serum blank, Single wavelength, Bichromatic, Multi-standard, Reagent blank
• Sample Volume: 1-100μl, Equipped with high-precision diluter, 0.1μl/step
• Reagent Volume: 1-500μl, 0.1μl/step
• Sample Position: 50 positions including standard, control and STAT, either serum cup or primary tube available
• Reagent Position: 47 positions: R1 26, R2 21
• Mixing System: One independent mixer
• Reaction Time: 10 minutes
• Cuvette: 90 high quality UV-transmitted plastic cuvettes and quartz glass cuvettes available on request
• Washing: 8 channels automatic washing system; waste liquid collected by high concentration and low concentration pump respectively; automatically wash cuvette, water consumption is 2-4L/H
• Alarm: Automatic alarm for malfunction (collision, reagent/sample insufficiency, full waste container etc.)
• Standard: Linear, Non-linear, Multi-standard, K factor
• Sample Dilution & Retest: Sample can be diluted and retested if result is out of range or sample is insufficient
• Light Source: Halogen lamp
• Wavelength: 330nm-850nm; standard equipped with 8 filters, 4 more filters available on request
• Accuracy: ±0.002A
• Measuring Range: -0.1000~3.500A
• Temperature Drift: ±0.1℃
• Carry Over: ≤0.01%
• Precision: 0.0001A.D.
• Auto Blank Function: Auto zero setting and deduct/record blank value for each cuvette to ensure accurate result
• Emergency Test: Emergency sample test prior
• Reliable Accuracy: Equipped with automatically test error diagnosis and correcting, automatic maintenance etc.
• Control/Calibration: With patented auto control and calibration management functions
• Bar Code: Bar code (sample/reagent) available on request
• Data Storage: More than 5000 items and 2 million results can be edited and stored
• Software: Stronger and more convenient software with multiple languages
• Printer: Multiple report formats available
• Power Supply: 220V or 110V, 50Hz or 60Hz
• Dimension: 85×72×54(cm)
• Weight: 50.00kgs

Features and Advantages

1. With stronger and more convenient software;
2. Automatically test error correcting function (Patented);
3. Intelligent control and calibration management function (Patented), greatly improve QC and efficiency;
4. Innovative gas/bubble eliminator (Patented), effectively remove all bubbles in the water to ensure more accurate results;
5. Automatic maintenance function, greatly reduce failure rate and maintenance work;
6. Innovative probes of higher liquid detection sensitivity and greatly avoiding carry over;
7. Suitable for small and medium-sized medical institutions or specialized hospital, can be loaded with pet diagnosis software for veterinary clinics.

Certifications

CE, ISO9001:2015, ISO13485:2016 Certificated

Product Details

• Sample probe/Reagent probe: 2, automatically washing/maintenance and higher liquid detection sensitivity to ensure quite lower carry over.
• Reagent system: 47 reagent positions (R1:26, R2:21), 24 hour non-stop refrigeration; 50 samples positions, serum cup or primary tube available on request.
• Washing system: Adopt 8 channels automatic washing mode, wash cuvettes automatically, auto zero setting and deduct/record blank value for each cuvette.
• Mixing: One independent mixer, equip with automatic mixing system which makes reaction more sufficient and result more accurate.
• Cuvette: Adopt high quality UV-transmitted plastic cuvettes, reusable, lower consumption and lower cost.
• Washing design: Advance and reliable automatic washing design, more washing times for cuvette of high pollution items to ensure clean thoroughly.
• Software: Software with AI function design to ensure device operation more reliable and efficient, reduce the difficulty of operation and maintenance, more convenient. Multiple languages available on request.
• Environmental protection: Green environmental protection design, in line with international standards.
• Bubble elimination: Innovative and patented gas/bubble eliminator, effectively take out all bubbles in the water to ensure more accurate result, Patent No.202122586012.51.
• Waste treatment: Automatic classification and collection of waste to protect the environment.
• Control management: Intelligent control management, intelligent correction of control deviation, more stable and reliable.
