Description

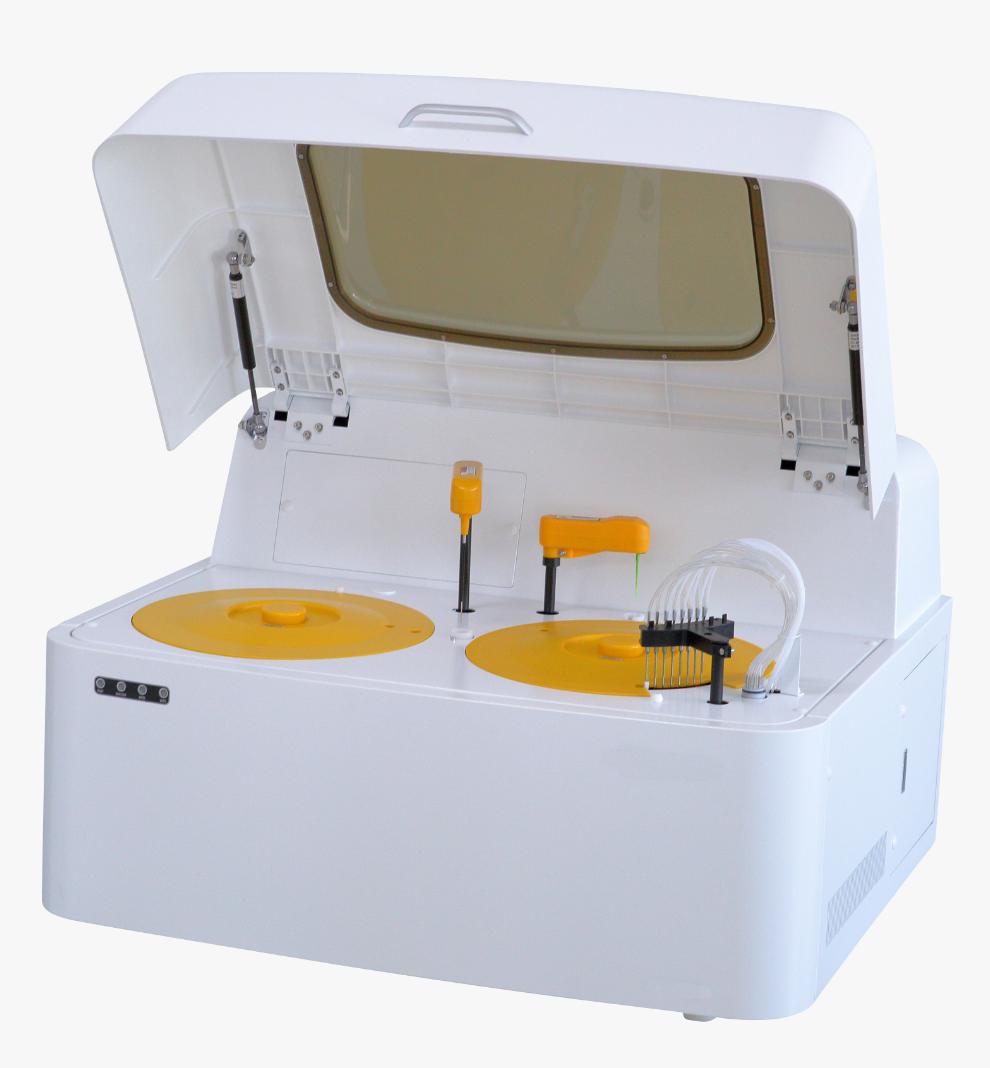

FULLY AUTOMATIC BIOCHEMISTRY ANALYZER

FEATURES AND ADVANTAGES

Greatly improved performance, quality and software with innovative design and technology.

With stronger and more convenient software.

Automatic test error correcting function (Patented).

Intelligent control and calibration management function (Patented), greatly improve QC and efficiency.

Innovative gas/bubble eliminator (Patented), effectively remove all bubbles in the water to ensure more accurate results.

Automatic maintenance function, greatly reduce failure rate and maintenance work.

Innovative probes of higher liquid detection sensitivity and greatly avoiding carry over.

Suitable for small and medium-sized medical institutions or specialized hospital, can be loaded with pet diagnosis software for veterinary clinics.

Software with AI function design to ensure device operation more reliable and efficient, reduce the difficulty of operation and maintenance, more convenient. Multiple languages available on request.

Intelligent correction of control deviation, more stable and reliable.

Green environmental protection design, in line with international standards.

Automatic classification and collection of waste to protect the environment.

ISO9001:2015 and ISO13485:2016 certified.

OEM cooperation welcome.

TECHNICAL SPECIFICATIONS

Throughput: 260 tests/hour (without ISE), 300 tests/hour (without ISE), 390 tests/hour (with ISE)

Assay Type: Random access with direct reading system

Methodology: Endpoint, Kinetic, Fixed time, Immunoturbidimetry, Single wavelength, Bichromatic, Multi-standard, Reagent blank, Serum blank etc.

Sample Volume: 1-100μl, equipped with high-precision diluter, 0.1μl/step

Reagent Volume: 1-500μl, 0.1μl/step

Sample Position: 50 positions including standard, control and STAT, either serum cup or primary tube available

Reagent Position: 47 positions: R1 26, R2 21

Mixing System: One independent mixer

Reaction Time: 10 minutes

Cuvette: 90 high quality UV-transmitted plastic cuvettes, and quartz glass cuvettes available on request

Washing: 8 channels automatic washing system; waste liquid collected by high concentration and low concentration respectively, automatically dry cuvette, water consumption is 2-4L/H

Alarm: Automatic alarm for malfunction (collision, reagent/sample insufficiency, full waste container etc.)

Standard: Linear, Non-linear, Multi-standard, K factor

Sample Dilution/Retest: Sample can be diluted and retested if result is out of range or sample is insufficient

Light Source: Halogen lamp

Wavelength: 330nm-850nm; standard equipped with 8 filters, 4 more filters available on request

Absorbance Drift: ≤0.002

Absorbance Range: -0.1000~3.500

Temperature Drift: ±0.1℃

Carry Over: ≤0.01%

Precision: 0.0001 O.D.

Auto Blank Function: Auto zero setting and deduct/record blank value for each cuvette to ensure accurate result

Emergency Test: Emergency sample test prior

Reliable Accuracy: Equipped with automatically test error diagnosis and correcting, automatic maintenance etc.

Control/Calibration: With patented auto control and calibration management functions

Bar Code: Bar code (sample/reagent) available on request

Data Storage: More than 5000 items and 2 million results can be edited and stored

Software: Stronger and more convenient software with multiple languages

Printer: Multiple report formats available

Power Supply: 220V or 110V, 50Hz or 60Hz

Dimension: 85×72×54(cm)

Weight: 50.00kgs
