Product info
- Product name:Full touch LCD display ArgonElectrosurgical Generator
- Product code:CC24082301
Packaging Specifications
- Outer Packaging Size:0.65 × 0.55 × 0.35 m
- Gross Weight:18 kg
- Net Weight:14 kg
- Volume:0.13
Description

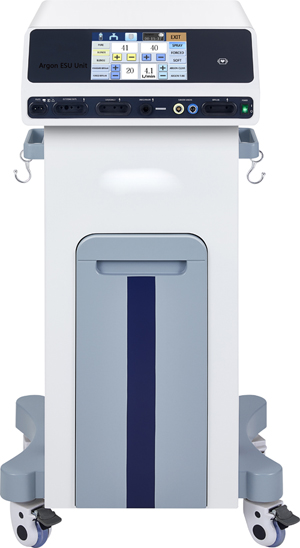

CV-2000Y Argon Electrosurgical Generator
Main Features:
■Microprocessor controlled, 8-inch LCD full touch screen display.
■Multifunctional Argon Electrosurgical Unit.
★ With audible and visual indicators and errors codes during the process of outputting.
★ with automatic system self-checking.
★ Return Electrode Monitoring system and Power Peak System, that provides surgeons with improved performance at lower power settings, minimizing the risk of tissue damage.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, and bipolar coag, each output can be individually configured.
★ Remote control function. ESU Pencil2 has the function of adjusting the output power.
★ Two monopolar output Receptacle. Can connect two monopolar instruments for simultaneous coagulation.
■The newest AIC technology, double pattern argon current regulation, may respectively output 0.2-3.0L/min and 1-15L/min current capacity, the adjustment length of stride respectively is 0.2L/Min and 1L/Min
■We use the SMART INTERRUPT safe system to real-time monitor nozzle pressure, which avoids nozzle jammed.
■It initiates AUTO-ADJ. Adaptive pressure adjustment, allowing 0.20-0.50MPa broad argon indefinite pressure inputting, avoiding the limitation of the on-the-spot source of the gas.
★ The ESU unit can be connected with laparoscope and endoscope, etc.
★ Connect with a Bipolar Clamp, Forced Bipolar mode can close and cut soft tissues such as fascia and omentums.
■ It can record the duration of the sugery.
■It offers the effective and economical method for hemostasis and tissue deactivating in open surgeries, such as General surgery, hepatic surgery, Thoracic surgery, Orthopedic Surgery, gynecology and obstetrics surgery, etc.
PERFORMANCE CHARACTERISTICS
Duty Cycle: Intermittent loading and continuous operation( 10s/30s)
Eight Working modes
| Function | Modes | Output Power (load) | V-PP | CF |
| Monopolar Cut | Pure cut | 1-300W @500ohm load | 2.6kV | 1.5 |
| Blend1 | 1-250W@500ohm load | 4KV | 1.8 | |
| Blend2 | 1-200W@500ohm load | 4.2KV | 2.1 | |
| Monopolar Coagulation | Spray | 1-80W@500ohm load | 5.3KV | 7.4 |
| Forced | 1-120W@500ohm load | 5KV | 3.8 | |
| Soft | 1-120W@500ohm load | 720V | 1.6 | |
| Bipolar | Standard coag | 1-120W@200ohm load | 550V | 1.6 |
| Forced Bipolar | 1-120W@200ohm load | 350V | 1.6 |
Input Power
| Input Voltage | 100-240V～±10% |
| Mains line frequency range | 50-60Hz |
| Power Rating | 1100VA |
| Power consumption | ≤1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | 416KHz |
| Monopolar RF leakage current | ＜150mA |
| Bipolar RF leakage current | ＜50mA |
Standards and IEC Classifications
| Class I Equipment IEC 60601-1 |
| Type CF Equipment IEC 60601-1 |
| Spill Resistance IEC 60601-2-2 |
| Electromagnetic Compatibility IEC 60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
| Length: 51cm | Width: 42cm |
| Height : 16cm | Weight: 10kg |
Operating Parameters
| Ambient temperature range: 5℃ to 40℃ |
| Relative humidity: ≤80% |
| Atmospheric pressure: 86kPa to 106kPa |
Argon flow control system parameter
Flow rate Range
| 0.1～15.0L/min | |
| Regulating Step | 0.1L/min |
| Pressure of Nozzle | 0-0.1MPa |
| Power Consumption | <100VA |
| Argon purity | ≥99.99% |
| Argon capacity | 4L |
| Pressure of Inputting | 0.20-0.50MPa |
| AC Power | AC90~250V, 50Hz |
Configuration Sheet
| Main unit 1set |
| Electrosurgical Pencil 5pieces |
| Electrosurgical Pad 10pieces |
| Electrosurgical pad cable 1piece |
| Monopolar Footswitch 1set |
| Bipolar Footswitch 1set |
| Bipolar Forceps with cable 1set |
| Tip Clean Sponge 1piece |
| Argon Pencil 1piece |
| Laparoscopic Electrode 1piece |
| Argon Gas probe 1piece |
| Electrosurgical snare 1piece |

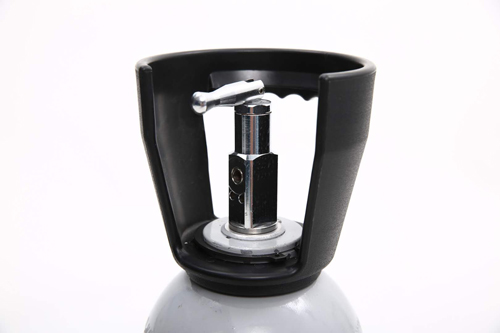

| Argon gas canister 1bottle |
| Pressure reducing valve 1piece |
| Ventilation connector 1piece |
| Trolley 1set |
| Power cable 1piece |
| Fuse 3pieces |
