Description

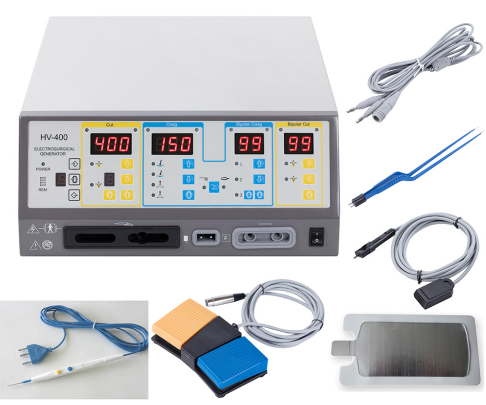

Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Multilanguage Available

Language options: English, Spanish, Portuguese, Turkish and etc.

Application of Use

General Surgery; Gastroenterology; Dermatology; Vascular Surgery; Obstetrics and Gynecology; Heart/ Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI); Cerebral surgery; Neurosurgery; Orthopedics & Plastic Surgery; Trans Urethral Resection (TUR) and etc.

Memory Records Features

Memory program that allows customize settings for different interventions and surgeons. Now total from 0~9 memories locations can be available for user-defined settings, which make it a versatile, indispensable companion in HF surgery.

Time Control Feature

There is time control feature under bipolar coag modes. Time output ranges from 0.1 to 2.0 seconds, which can be used for much delicate surgeries like Neurosurgeries and etc.

Two Pencils Work Simultaneously

It can meet the special surgeries like Heart bypass operation and etc, which ensure two users can operate respectively without interference.

Safety Design

Designed with patient plate continuity monitoring circuit, this can effectively prevent electrical burns to patients.

Versatile Compatibility

The system is uniquely compatible with other devices, including:

• Under water cut socket (Endo cut)
• HV argon coagulation system
• Optimum Smoke Evacuation System - Clean air in the operation theatre

Technical Specification

• Main Frequency: 512 KHz
• Power Supply: 110V-220V; 50-60Hz

Weight and Dimension

• Weight: 8.00KG
• Dimension: 413214cm

High Frequency Leakage

• Monopolar: < 150mA
• Bipolar: < 60mA

Low Frequency Leakage

• Normal Polarity, Intact Chassis Ground: <10µA
• Normal Polarity, Ground open: <50µA
• Reverse Polarity, Ground Open: <50µA
• Sink Current, 140V Applied, All inputs: <50µA

Working Mode Parameters
