Description

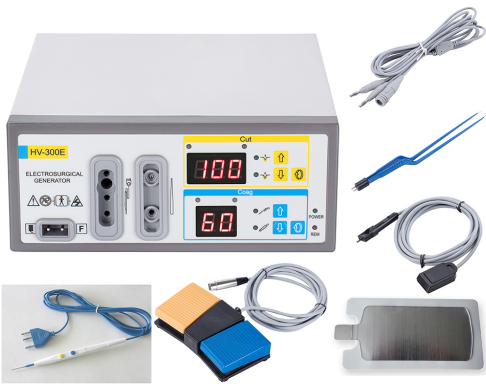

Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burning incidents.

Compatible with Other Equipments

Optimum Smoke Evacuation System

Multilanguage Available

Language options: English, Spanish, Portuguese, Turkish and etc.

Application of Use

Dermatology; Vascular Surgery; Obstetrics and Gynecology; ORL/ENT; Minimally Invasive Surgery (MSI); Cerebral surgery; Neurosurgery; Orthopedics & Plastic Surgery.

Low Frequency Leakage

• Normal Polarity, Intact Chassis Ground: <10µA
• Normal Polarity, Ground open: <50µA
• Reverse Polarity, Ground Open: <50µA
• Sink Current, 140V Applied, All inputs: <50µA

Power Readouts

Agree with actual power into rated to within ±20% or 5W, whichever is greater, Dosage Error monitor.

Technical Specification

• Main Frequency: 512 KHz
• Power Supply: 110V/60Hz; 220V/50Hz

Weight and Dimension

• Weight: 4.00KG
• Dimension: 252410cm

High Frequency Leakage

• Monopolar: <150mA
• Bipolar: <60mA

Working Mode Parameters
