Description

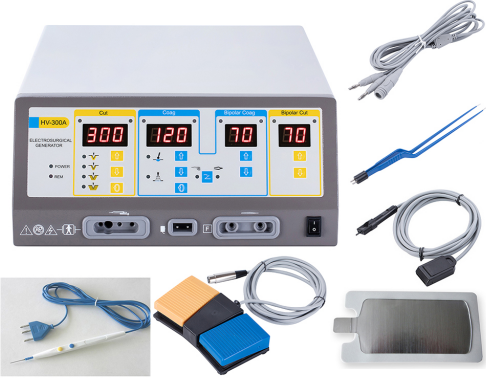

Electrosurgical Generator

Intelligent Device System

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room, it features both Monopolar and bipolar functions to satisfy all the surgeries demands with safety, flexibility, reliability and convenience.

REM (Return Electrode Monitoring)

Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, which minimize the danger of burns.

Multilanguage Available

Language options: English, Spanish, Portuguese, Turkish and etc.

Application of Use

General Surgery; Gastroenterology; Dermatology; Vascular Surgery; Obstetrics and Gynecology; Heart/ Thoracic Surgery; ORL/ENT; Minimally Invasive Surgery (MSI); Cerebral surgery; Neurosurgery; Orthopedics & Plastic Surgery; Trans Urethral Resection (TUR) and etc.

Versatile System Compatibility

Under water cut socket (Endo cut)

HV argon coagulation system

Optimum Smoke Evacuation System-Clean air in the operation theatre

Technical Specification

Main Frequency: 512 KHz

Power Supply: 110V-220V; 50-60Hz

Weight and Dimension

Weight: 8.00KG for Stainless Steel model; 6.00KG for Injection model

Dimension: 413214cm

High Frequency Leakage

Monopolar: < 150mA

Bipolar: < 60mA

Low Frequency Leakage

Normal Polarity, Intact Chassis Ground: <10µA

Normal Polarity, Ground open: <50µA

Reverse Polarity, Ground Open: <50µA

Sink Current, 140V Applied, All inputs: <50µA

Working Mode Parameters
