Product info

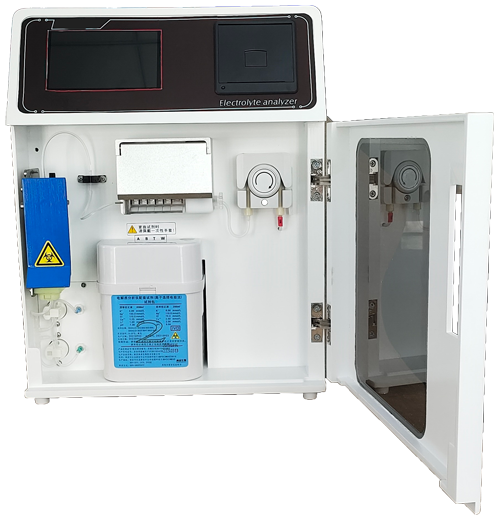

- Product name:Electrolyte Analyzer(K+, Na+, Cl-, Ca2+, pH, Li)
- Product code:CCL-X6
Packaging Specifications
- Outer Packaging Size:0.52 × 0.36 × 0.5 m
- Gross Weight:11 kg
- Net Weight:10 kg
- Volume:0.09
Description
Electrolyte Analyzers
Core Overview
CCL-X3/X4/X5/X6 are a series of electrolyte analyzers launched by China Care Medical Equipment Co., Ltd., featuring the advantages of high accuracy, high efficiency and cost-effectiveness. The series offers four models with graded detection parameters to meet diverse clinical testing needs, adopting high-precision and long-life ion selective electrodes (ISE), and supporting rapid testing (results in 25 seconds) with a color touch screen for easy operation. Equipped with closed reagent packs, real-time reagent volume monitoring and multiple intelligent functions, it is suitable for clinical electrolyte detection in medical institutions of various levels, supporting the detection of multiple sample types and realizing efficient, accurate and economical testing workflows.
Core Technical Parameters & Model Differentiation
1. Detection Parameter Grading (Core Model Difference)
- CCL-X3: K⁺, Na⁺, Cl⁻
- CCL-X4: Undefined in the document (graded between X3 and X5)
- CCL-X5: K⁺, Na⁺, Cl⁻, Ca²⁺, pH
- CCL-X6: K⁺, Na⁺, Cl⁻, Ca²⁺, pH, Li⁺
2. Universal Performance Indicators (All Models)
表格
| Category | Details |
|---|---|
| Detectable Sample Types | Serum, plasma, whole blood, cerebrospinal fluid, diluted urine |
| Sample Dosage | ≤100μL |
| Testing Speed | Results available in 25 seconds (high throughput) |
| Core Detection Component | High-accuracy, long-life Ion Selective Electrode (ISE) |
| Measurement Accuracy | Overall high precision (CV ≤1.0% for major ions); linear correlation coefficient r≥0.995 (partial indicators); low contamination rate (≤1.5%~2.0%) |
| Linear Range (Typical) | Cl⁻: 80.0~160.0; pH: 7.00~9.00 (unitless) |
3. Product Specifications (All Models)
| Category | Details |
|---|---|
| Operating Conditions | 5°C~40°C, ≤85%RH |
| Power Supply | AC220V±22V, 50Hz±1Hz |
| Communication Interface | RS232-C (supports barcode reader) |
| Printing Mode | Built-in thermal printer |
| Data Storage | Up to 10,000 test results |
| Reagent Design | Closed reagent pack, real-time monitoring of reagent volume |
| Energy Saving Function | Standby mode to reduce reagent consumption |
| Operation Interface | Color touch screen, easy to operate |
Core Product Advantages
- Graded Configuration, Meet Diverse Needs: Four models with step-by-step expanded detection parameters (from 3 ions to 6 indicators including Li⁺/pH/Ca²⁺) allow medical institutions to choose according to clinical testing demands, realizing cost-effective configuration.
- High Efficiency & Micro-sample Volume: Rapid testing with results in 25 seconds (high throughput) adapts to busy clinical testing scenarios; sample dosage ≤100μL, reducing sample consumption and meeting micro-sample testing needs.
- High Accuracy & Stable Performance: Adopt high-precision and long-life ISE core components, with low CV value, high linear correlation and low ion contamination rate, ensuring accurate and reliable test results; closed reagent pack design avoids reagent pollution and ensures detection stability.
- Intelligent & Humanized Operation: Color touch screen for simple and intuitive operation; real-time reagent volume monitoring to avoid testing interruption due to reagent shortage; standby mode reduces reagent waste and operating costs.
- Rich Data Management & Expansion: Supports storage of up to 10,000 test results, built-in thermal printer for immediate result output; RS232-C interface is compatible with barcode readers, facilitating information input and hospital information system docking.
- Wide Sample Compatibility: Supports serum, plasma, whole blood, cerebrospinal fluid and diluted urine, covering most clinical common electrolyte detection sample types, with strong applicability.
Applicable Scenarios
Suitable for electrolyte routine detection in hospitals, community health centers, diagnostic laboratories and other medical institutions, applicable to clinical departments such as internal medicine, surgery, emergency, pediatrics and intensive care, providing rapid and accurate electrolyte index data for disease diagnosis, treatment monitoring and prognosis evaluation.
